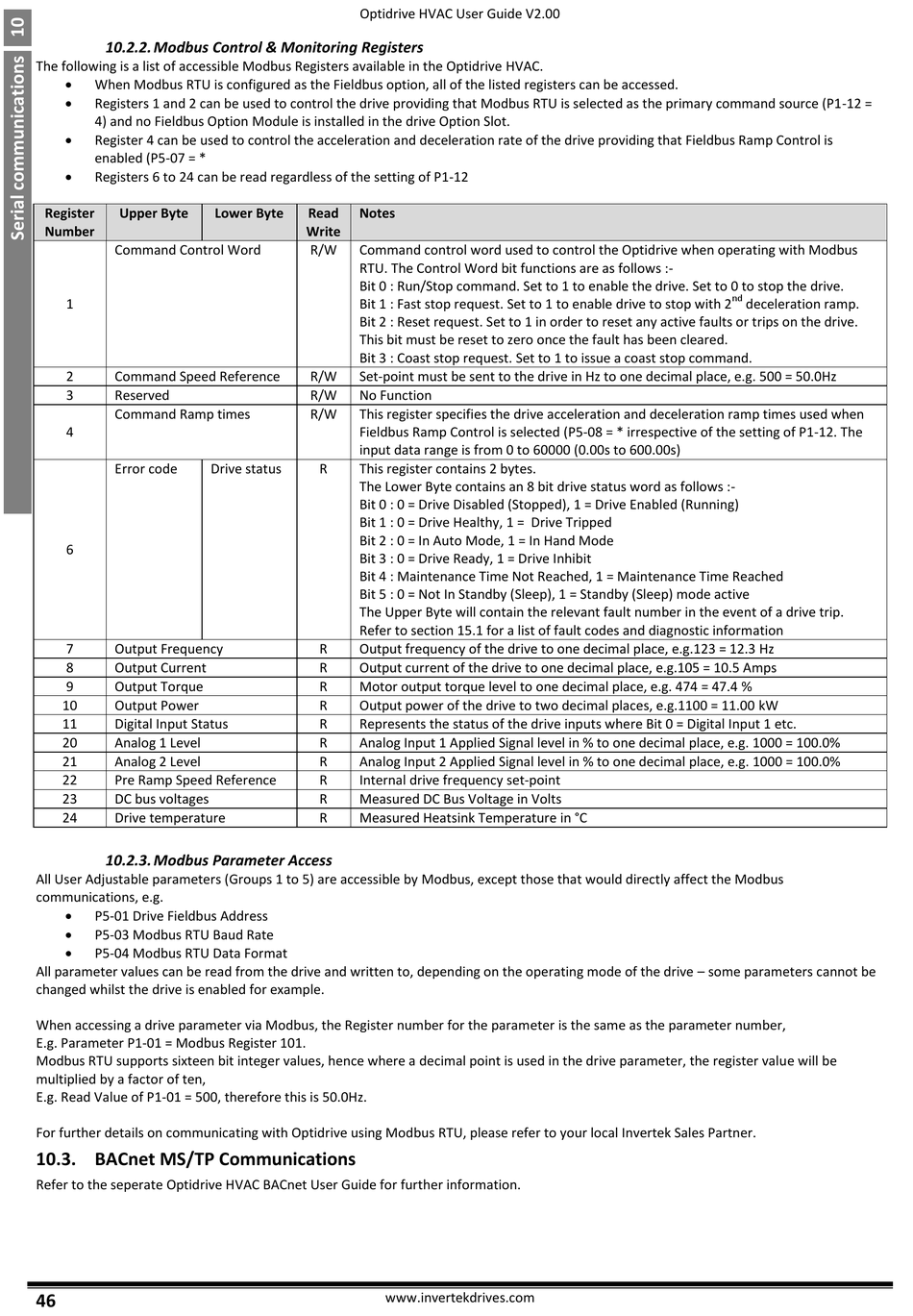

10.2.2. Modbus Control & Monitoring Registers
The following is a list of accessible Modbus Registers available in the Optidrive HVAC.

When Modbus RTU is configured as the Fieldbus option, all of the listed registers can be accessed.

Registers 1 and 2 can be used to control the drive providing that Modbus RTU is selected as the primary command source (P1-12 =
4) and no Fieldbus Option Module is installed in the drive Option Slot.

Register 4 can be used to control the acceleration and deceleration rate of the drive providing that Fieldbus Ramp Control is
enabled (P5-07 = *

Registers 6 to 24 can be read regardless of the setting of P1-12
Register Upper Byte
Number
Command Control Word
1
2 Command Speed Reference
3 Reserved
Command Ramp times
4
Error code
6
7 Output Frequency
8 Output Current
9 Output Torque
10 Output Power
11 Digital Input Status
20 Analog 1 Level
21 Analog 2 Level
22 Pre Ramp Speed Reference
23 DC bus voltages
24 Drive temperature
10.2.3. Modbus Parameter Access
All User Adjustable parameters (Groups 1 to 5) are accessible by Modbus, except those that would directly affect the Modbus
communications, e.g.

P5-01 Drive Fieldbus Address

P5-03 Modbus RTU Baud Rate

P5-04 Modbus RTU Data Format
All parameter values can be read from the drive and written to, depending on the operating mode of the drive – some parameters cannot be
changed whilst the drive is enabled for example.
When accessing a drive parameter via Modbus, the Register number for the parameter is the same as the parameter number,
E.g. Parameter P1-01 = Modbus Register 101.
Modbus RTU supports sixteen bit integer values, hence where a decimal point is used in the drive parameter, the register value will be
multiplied by a factor of ten,
E.g. Read Value of P1-01 = 500, therefore this is 50.0Hz.
For further details on communicating with Optidrive using Modbus RTU, please refer to your local Invertek Sales Partner.

10.3. BACnet MS/TP Communications

Refer to the seperate Optidrive HVAC BACnet User Guide for further information.
