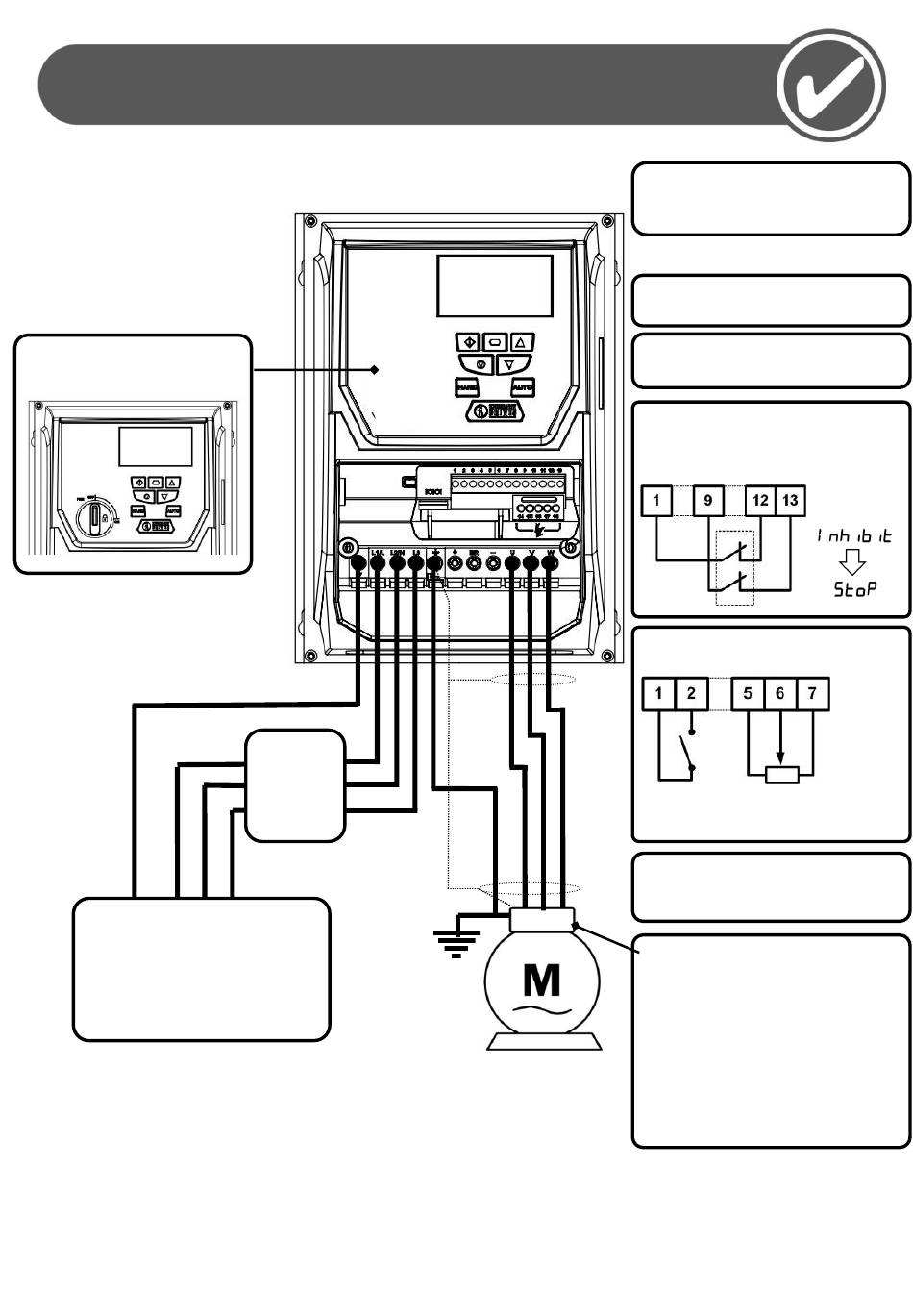

Optidrive HVAC Start Up Guide
OPTIDRIVE HVAC (IP66 Enclosure).
Applies to Switched version only
In-built Isolator:
Mains Power On / Off
PE L1 L2 L3
AC Supply Connection
200 – 240 Volts + / - 10%: 1 / 3 Phase
380 – 380 Volts + / - 10%: 3 Phase
Check Drive Input Voltage Ranges on
page 47
Fuses or MCB
Check Drive
Rating info in
section 13.4.
Mechanical Mounting
Information can be found in section 3.8
on page 16
HVAC Display
(Status, Diagnostics, and Programming)
Keypad Operation can be found in
section 5.5 on page 27
Hardware Enable Circuit
Link the terminals as shown, optionally
through switch contacts to enable drive
operation.
Control Terminal
Configuration based on factory settings
Run / Stop 10K Pot
Close the switch to run (enable)
Open the switch to stop
Motor Cable Sizes
Check the rating information in
section 11.3 on page 47
Motor Connections
Check for Star or Delta connection
according to the motor voltage rating –
se section 4.5 on page 23
Motor Nameplate Details
Motor Rated Voltage: P1-07
Motor Rated Current: P1-08
Motor Rated Frequency: P1-09
Motor Rated Speed (Optional): P1-10
