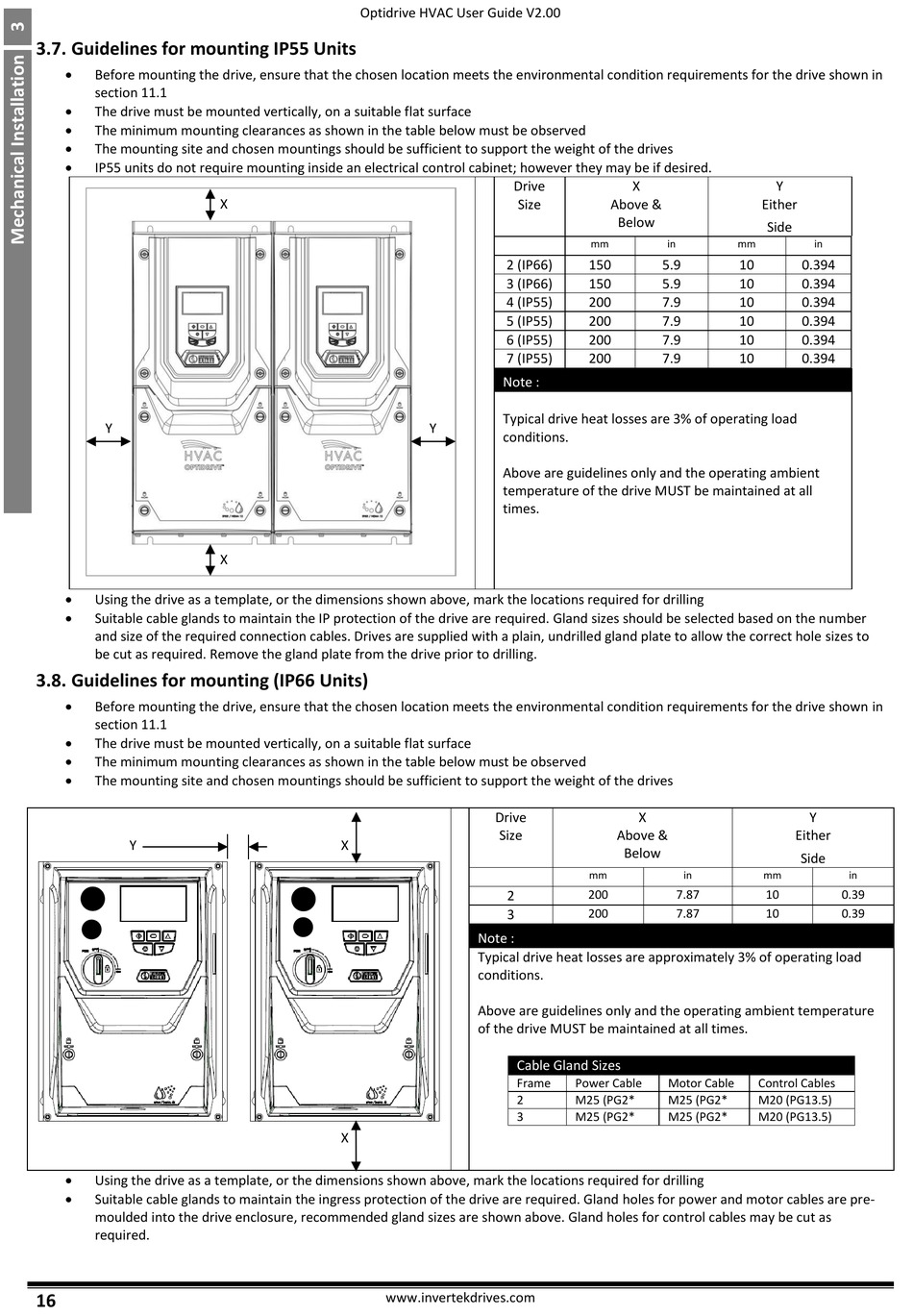

3.7. Guidelines for mounting IP55 Units


Before mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 11.1

The drive must be mounted vertically, on a suitable flat surface

The minimum mounting clearances as shown in the table below must be observed

The mounting site and chosen mountings should be sufficient to support the weight of the drives

IP55 units do not require mounting inside an electrical control cabinet; however they may be if desired.
Y

Using the drive as a template, or the dimensions shown above, mark the locations required for drilling

Suitable cable glands to maintain the IP protection of the drive are required. Gland sizes should be selected based on the number
and size of the required connection cables. Drives are supplied with a plain, undrilled gland plate to allow the correct hole sizes to
be cut as required. Remove the gland plate from the drive prior to drilling.
3.8. Guidelines for mounting (IP66 Units)

Before mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 11.1

The drive must be mounted vertically, on a suitable flat surface

The minimum mounting clearances as shown in the table below must be observed

The mounting site and chosen mountings should be sufficient to support the weight of the drives
Y

Using the drive as a template, or the dimensions shown above, mark the locations required for drilling

Suitable cable glands to maintain the ingress protection of the drive are required. Gland holes for power and motor cables are pre-
moulded into the drive enclosure, recommended gland sizes are shown above. Gland holes for control cables may be cut as
required.
16
Optidrive HVAC User Guide V2.00
X
X
X
X
www.invertekdrives.com
Drive
Size
mm
2 (IP66) 150
3 (IP66) 150
4 (IP55) 200
5 (IP55) 200
6 (IP55) 200
7 (IP55) 200
Note :
Typical drive heat losses are 3% of operating load
Y
conditions.
Above are guidelines only and the operating ambient
temperature of the drive MUST be maintained at all
times.
Drive
Size
mm
200
2
3 200
Note :
Typical drive heat losses are approximately 3% of operating load
conditions.
Above are guidelines only and the operating ambient temperature
of the drive MUST be maintained at all times.
Cable Gland Sizes
Frame Power Cable
2 M25 (PG2*
3 M25 (PG2*
X Y
Above & Either
Below
Side
in mm
5.9 10
5.9 10
7.9 10
7.9 10
7.9 10
7.9 10
X
Above &
Below
in mm
7.87 10
7.87 10
Motor Cable Control Cables
M25 (PG2* M20 (PG13.5)
M25 (PG2* M20 (PG13.5)
in
0.394
0.394
0.394
0.394
0.394
0.394
Y
Either
Side
in
0.39
0.39
