12.

Troubleshooting

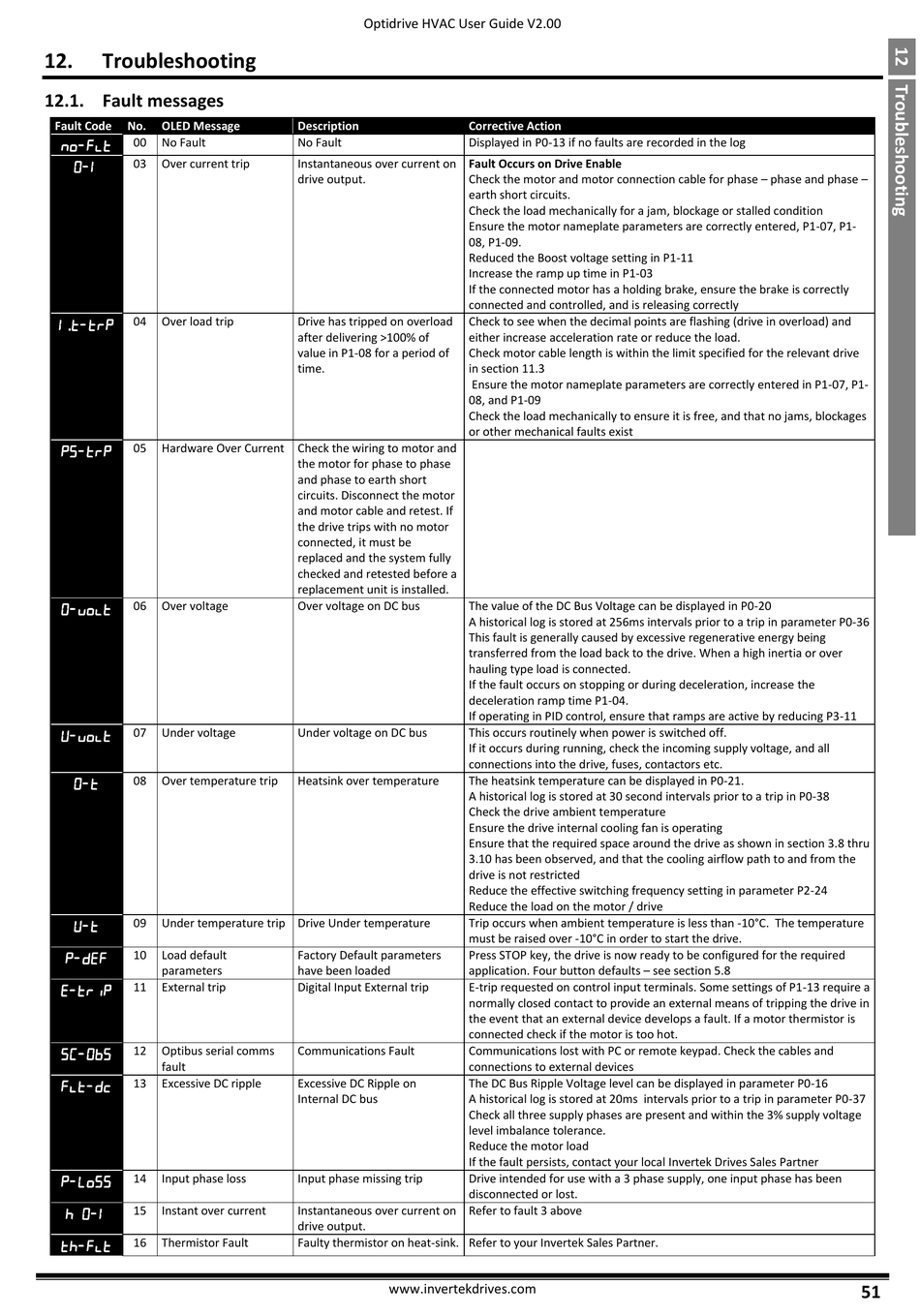

12.1. Fault messages
Fault Code No. OLED Message
 00 No Fault
 03 Over current trip
. 04 Over load trip
 05 Hardware Over Current Check the wiring to motor and
 06 Over voltage
 07 Under voltage
 08 Over temperature trip
 09 Under temperature trip Drive Under temperature

10 Load default
parameters
 11 External trip

12 Optibus serial comms
fault
 13 Excessive DC ripple
 14 Input phase loss
 15 Instant over current
 16 Thermistor Fault
Optidrive HVAC User Guide V2.00
Description Corrective Action
No Fault Displayed in P0-13 if no faults are recorded in the log
Instantaneous over current on Fault Occurs on Drive Enable
drive output. Check the motor and motor connection cable for phase – phase and phase –
earth short circuits.
Check the load mechanically for a jam, blockage or stalled condition
Ensure the motor nameplate parameters are correctly entered, P1-07, P1-
08, P1-09.
Reduced the Boost voltage setting in P1-11
Increase the ramp up time in P1-03
If the connected motor has a holding brake, ensure the brake is correctly
connected and controlled, and is releasing correctly
Drive has tripped on overload Check to see when the decimal points are flashing (drive in overload) and
after delivering >100% of either increase acceleration rate or reduce the load.
value in P1-08 for a period of Check motor cable length is within the limit specified for the relevant drive
time. in section 11.3
08, and P1-09
Check the load mechanically to ensure it is free, and that no jams, blockages
or other mechanical faults exist
the motor for phase to phase
and phase to earth short
circuits. Disconnect the motor
and motor cable and retest. If
the drive trips with no motor
connected, it must be
replaced and the system fully
checked and retested before a
replacement unit is installed.
Over voltage on DC bus The value of the DC Bus Voltage can be displayed in P0-20
A historical log is stored at 256ms intervals prior to a trip in parameter P0-36
This fault is generally caused by excessive regenerative energy being
transferred from the load back to the drive. When a high inertia or over
hauling type load is connected.
If the fault occurs on stopping or during deceleration, increase the
deceleration ramp time P1-04.
If operating in PID control, ensure that ramps are active by reducing P3-11
Under voltage on DC bus This occurs routinely when power is switched off.
If it occurs during running, check the incoming supply voltage, and all
connections into the drive, fuses, contactors etc.
Heatsink over temperature The heatsink temperature can be displayed in P0-21.
A historical log is stored at 30 second intervals prior to a trip in P0-38
Check the drive ambient temperature
Ensure the drive internal cooling fan is operating
Ensure that the required space around the drive as shown in section 3.8 thru
3.10 has been observed, and that the cooling airflow path to and from the
drive is not restricted
Reduce the effective switching frequency setting in parameter P2-24
Reduce the load on the motor / drive
Trip occurs when ambient temperature is less than -10°C. The temperature
must be raised over -10°C in order to start the drive.
Factory Default parameters Press STOP key, the drive is now ready to be configured for the required
have been loaded application. Four button defaults – see section 5.8
Digital Input External trip E-trip requested on control input terminals. Some settings of P1-13 require a
normally closed contact to provide an external means of tripping the drive in
the event that an external device develops a fault. If a motor thermistor is
connected check if the motor is too hot.
Communications Fault Communications lost with PC or remote keypad. Check the cables and
connections to external devices
Excessive DC Ripple on The DC Bus Ripple Voltage level can be displayed in parameter P0-16
Internal DC bus A historical log is stored at 20ms intervals prior to a trip in parameter P0-37
Check all three supply phases are present and within the 3% supply voltage
level imbalance tolerance.
Reduce the motor load
If the fault persists, contact your local Invertek Drives Sales Partner
Input phase missing trip Drive intended for use with a 3 phase supply, one input phase has been
disconnected or lost.
Instantaneous over current on Refer to fault 3 above
drive output.
Faulty thermistor on heat-sink. Refer to your Invertek Sales Partner.
www.invertekdrives.com
Ensure the motor nameplate parameters are correctly entered in P1-07, P1-

