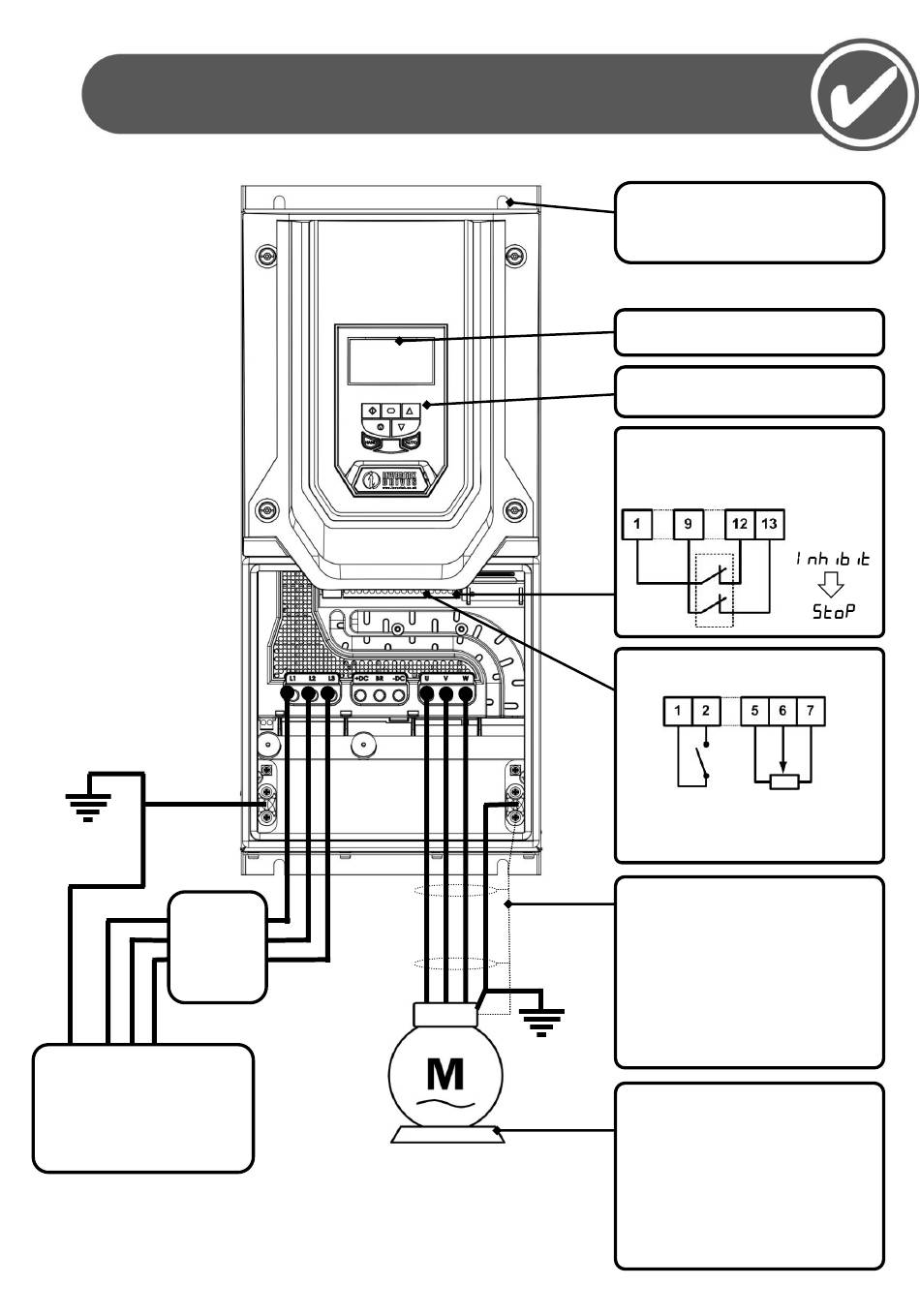

Optidrive HVAC Start Up Guide
OPTIDRIVE HVAC (IP55 Enclosure).
Fuses or MCB
Check Drive
Rating info in
section 13.4
PE L1 L2 L3
AC Supply Connection
200 – 240 Volts + / - 10%
380 – 380 Volts + / - 10%
Check Drive Input Voltage
Ranges on page 47
Optidrive HVAC User Guide V2.00
Supply Voltage
Mechanical Mounting
Information can be found in section 3.7
on page 16
HVAC Display
(Status, Diagnostics, and Programming)
Keypad Operation can be found in
section 5.5 on page 27
Hardware Enable Circuit
Link the terminals as shown, optionally
through contacts to enable drive
operation.
Control Terminal
Configuration based on factory settings
Run / Stop 10K Pot
Close the switch to run (enable)
Open the switch to stop
Motor Cable
For correct cable size, see Technical
Data on page 47
Observe the maximum permissible
motor cable length.
For Motor cable lengths > 50 metres, an
output filter is recommended.
Use a screened (shielded cable). The
shield should be bonded to earth at
both ends.
Motor Connection
Check for Star or Delta connection
according to the motor voltage rating in
section 4.5.
Motor Nameplate Details
Motor Rated Voltage: P1-07
Motor Rated Current: P1-08
Motor Rated Frequency: P1-09
Motor Rated Speed (Optional): P1-10
