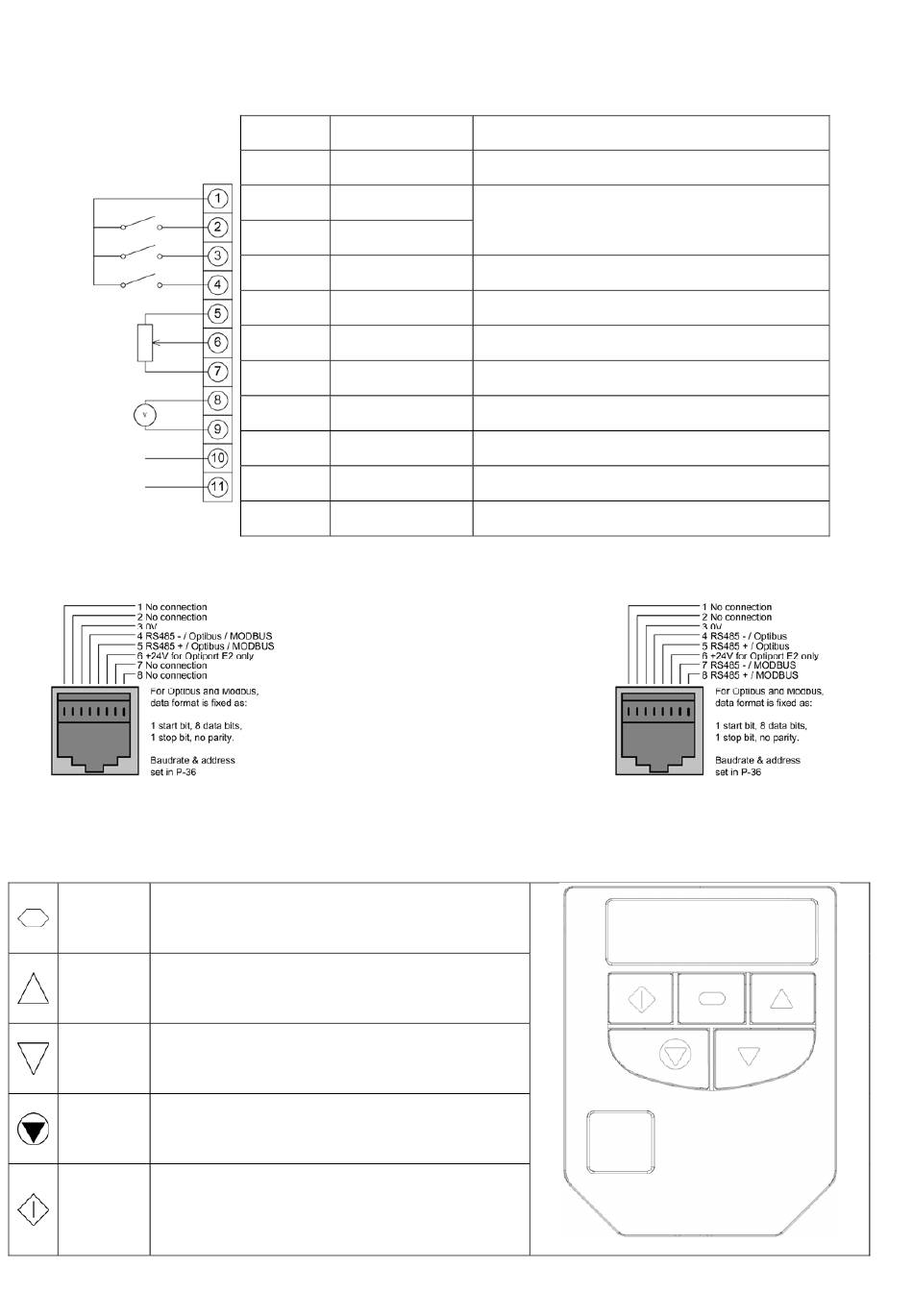

5. Control Wiring

5.1.

Control terminal connections

Default
Connections
5.2.

RJ45 Data Connection

For drives with software V1.00 - V1.02

6. Operation

6.1.

Managing the keypad

The drive is configured and its operation monitored via the keypad and display.
Used to display real-time information, to access and
NAVIGATE exit parameter edit mode and to store parameter
changes
Used to increase speed in real-time mode or to
UP
increase parameter values in parameter edit mode
Used to decrease speed in real-time mode or to
DOWN
decrease parameter values in parameter edit mode
RESET / Used to reset a tripped drive.
STOP When in Keypad mode is used to Stop a running drive.
When in keypad mode, used to Start a stopped drive or
START to reverse the direction of rotation if bi-directional
keypad mode is enabled
Optidrive E2 Single Phase Output User Guide
Control Signal
Terminal
1 +24V User Output,
2 Digital Input 1
3 Digital Input 2
Digital Input 3 /
4
Analog Input 2
5 +10V User Output
Analog Input 1 /
6
Digital Input 4
7 0V
Analog Output /
8
Digital Output
9 0V
10 Relay Common
11 Relay NO Contact
For MODBUS RTU register map
information please refer to the Application
Note AN-ODE-01 or Optidrive E2
Advanced User Guide.
When using MODBUS control the Analog
and Digital Inputs
can be configured as shown in section 8.3
MODBUS control mode (P12 = 3 or 4)
www.invertek.co.uk
Description
+24V, 100mA.
Positive logic
"Logic 1" input voltage range: 8V ... 30V DC
"Logic 0" input voltage range: 0V ... 2V DC
Digital: 8 to 30V
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
+10V, 10mA, 1kΩ minimum
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
Digital: 8 to 30V
User ground connected terminal 9
Analog: 0 to 10V, 20mA maximum
Digital: 0 to 24V
User ground connected terminal 7
Contact 250Vac, 6A / 30Vdc, 5A
For drives with software V1.03 & later
9
