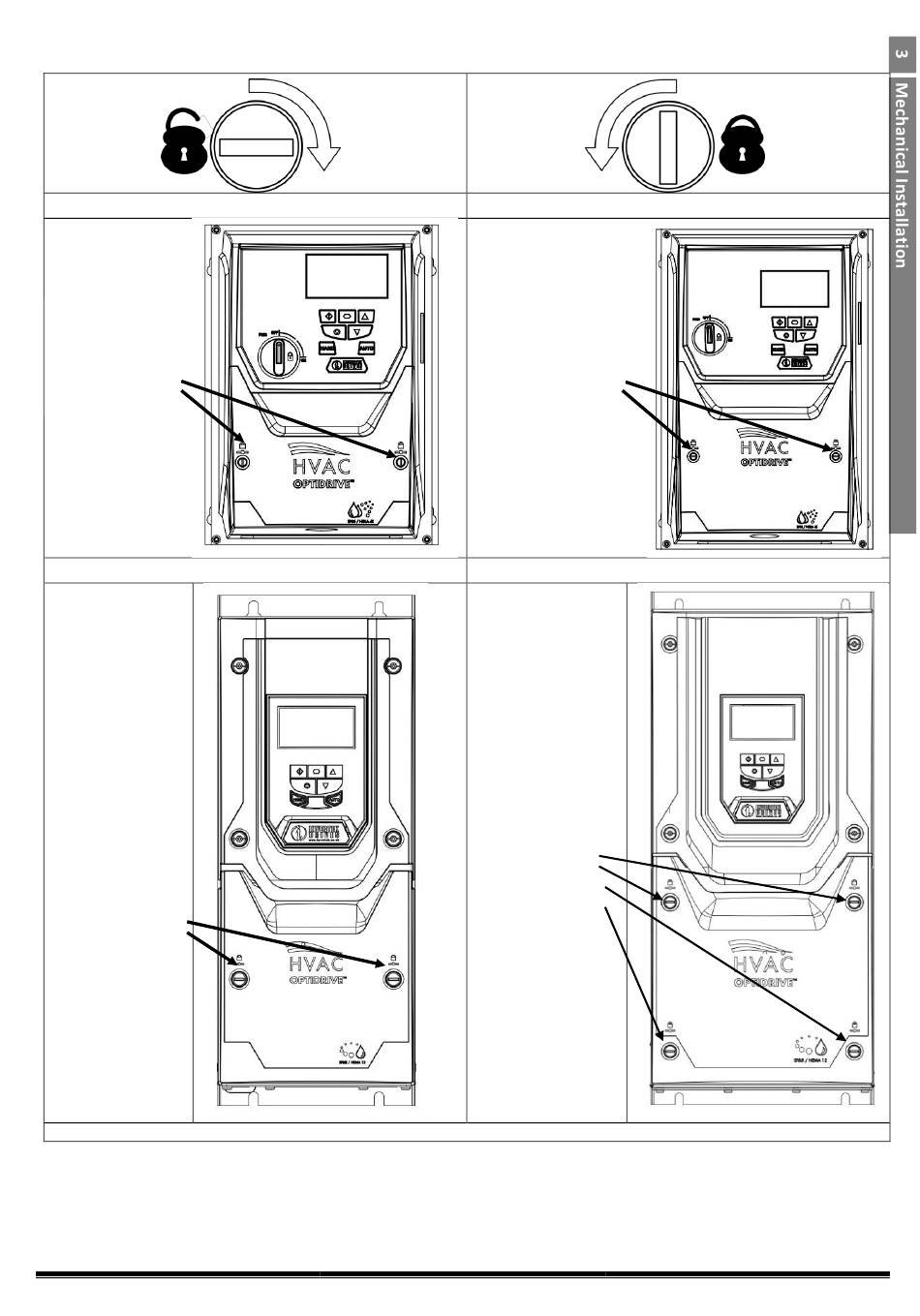

3.9. Removing the Terminal Cover

3.9.1. Frame Size 2
Using a suitable flat
blade screwdriver,
rotate the two
retaining screws
indicated until the
screw slot is vertical
3.9.3. Frame Size 4
Using a suitable flat
blade screwdriver,
rotate the two
retaining screws
indicated until the
screw slot is vertical.
Optidrive HVAC User Guide V2.00
Using a suitable flat
blade screwdriver,
rotate the two
retaining screws
indicated until the
screw slot is vertical
Using a suitable flat
blade screwdriver,
rotate the four
retaining screws
indicated until the
screw slot is vertical.
Terminal Cover Release Screws
www.invertekdrives.com
3.9.2. Frame Size 3
3.9.4. Frame Size 5
