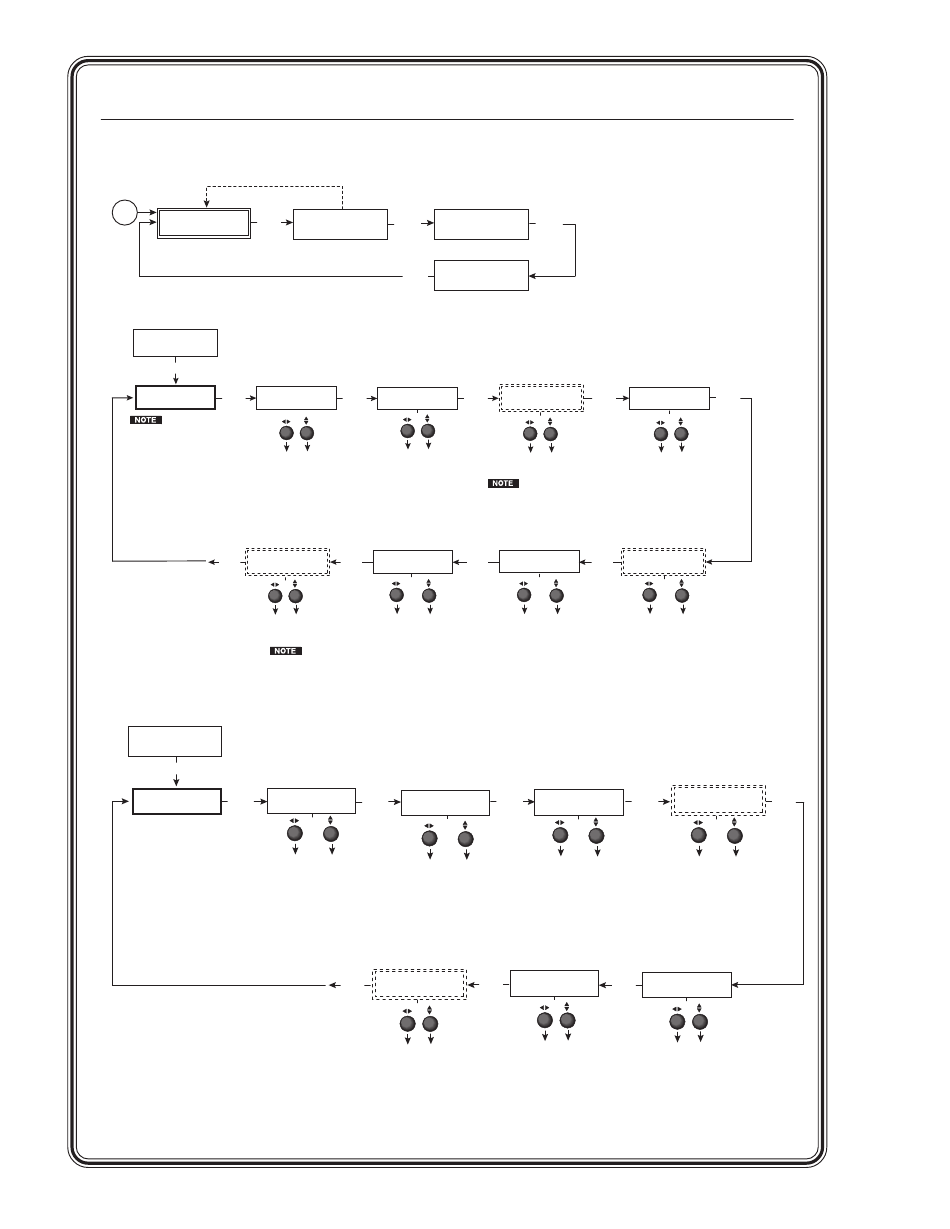

Start Auto Image menu
Default Cycle
Power
on
INPUT 1
COMPOSITE
Input Configuration menu
START AUTO
IMAGE ON IN1
MENU
INPUT
NEXT
CONFIG
Input 1 can only accept
composite video. Input 3
can only accept S-video.
Only Inputs 2 and 4 can
be configured for
different video types,
although an SDI input
can be assigned from
any Input Configuration
menu.
Displays only when applicable
NEXT
Picture control
INPUT
CONFIG
MENU
NEXT
CONTROL
