General

The Fast Track 2+2/386 2000 Series Timer operates automatically with a minimum of operator
attention, updating the data on its Activity screen and Remote Displays, and printing regularly
scheduled automatic reports.
2-2

Principles of Operation

A fully functional timer requires a customer furnished Intercom, Menu Board Loop with a
Vehicle Detector, and the Timer. As a minimum, the Timer must include a Main Console and a
Remote Display. The Main Console interfaces with the customer furnished Intercom and
Vehicle Detector, Cashier Loop and Pick-Up Loop (Window Loops), a Remote Display, and a
power source. Up to six Remote Displays may be connected to the Main Console.

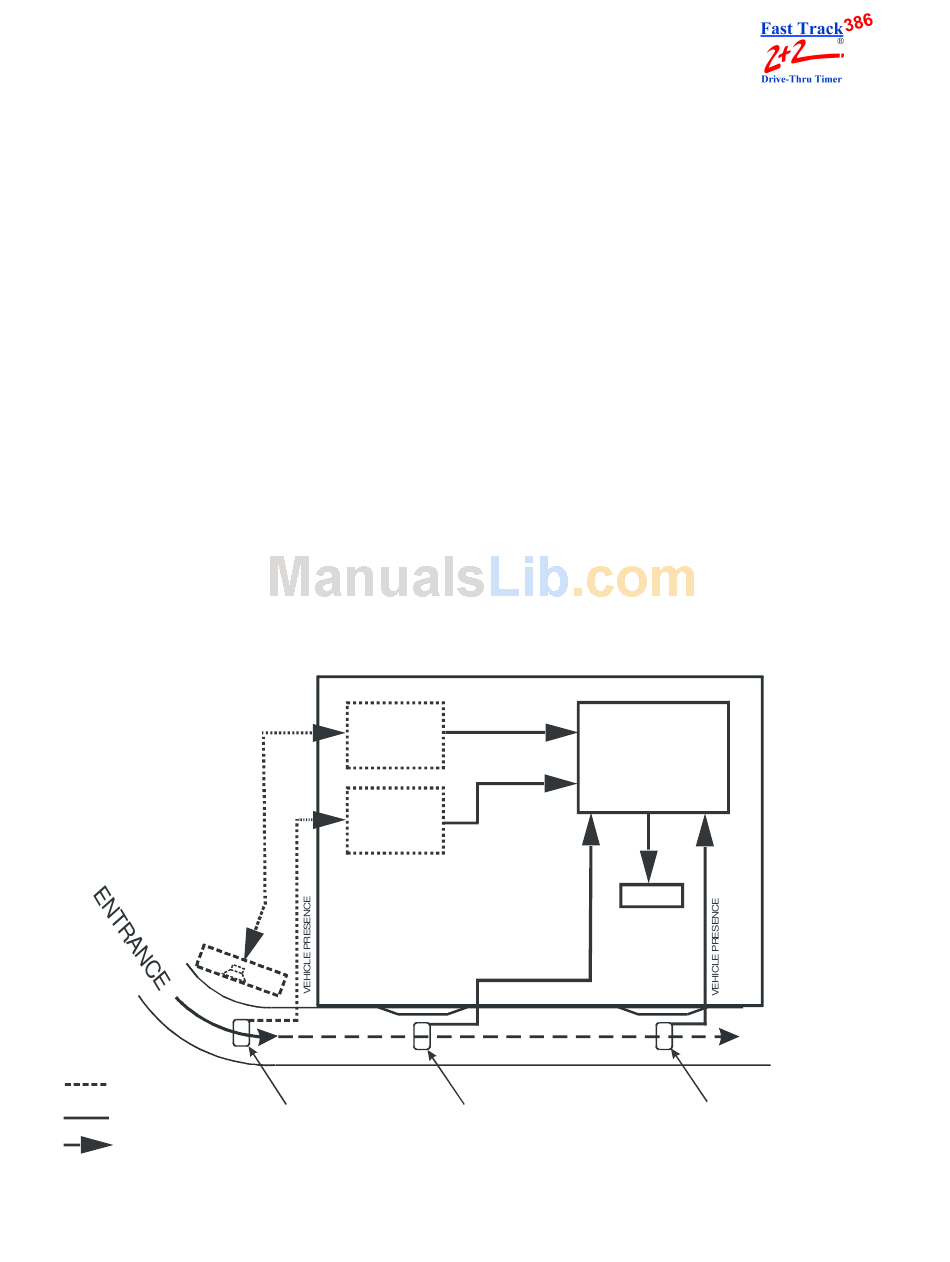

A simple Fast Track 2+2/386 2000 Series Timer (for a single lane drive-thru) is pictured
below:
NOTE: Though this example depicts a "typical," simple system, the Fast Track 2+2/386 can
be configured for virtually any other drive-thru restaurant setup.
SPEAKER
KEY
Customer-furnished Menu Board
& Intercom Equipment
Fast Track 2+2/386 Timer Equipment
Flow Line
