KeyB viscount Legend Solo User Manual page 31

viscount
27. [TRANSPOSE SELECT] button.
Adjust the keyboard transposition (see par. 6.1), set up functions and recall the Panic function (see par.
6.2).
28. [TUNING] trimmer.
Adjust the instrument's fine tuning. When the trimmer is to the far left, the tuning is 1/2 semitone lower; at
the far right, the tuning is 1/2 semitone higher.
29. [PERCUSSION ON/OFF] button.
Button to activate the percussion when using the Set B drawbars (in
Split Double
(in or ). The percussion is active when the button's LED is on
30. [PERCUSSION SOFT/NORMAL] button.
Select one of the two percussion levels. In NORMAL mode (led off
with the potentiometer [PERCUSSION VOLUME] (see point 22). In SOFT (led on) the volume is attenuated.
31. [PERCUSSION SLOW/FAST] button.
Switch between two percussion decay durations. In SLOW mode (led off) the decay time is set by the
[PERCUSSION DECAY] potentiometer (see point 21). In FAST mode (led on) the decay time is shorter.
32. [PERCUSSION 2nd/3rd] button.
Select the percussion harmonic. 2nd (led off
(led on) selects the third harmonic (equivalent to a 2 2/3' register).
For further information on the percussion read par. 4.3.

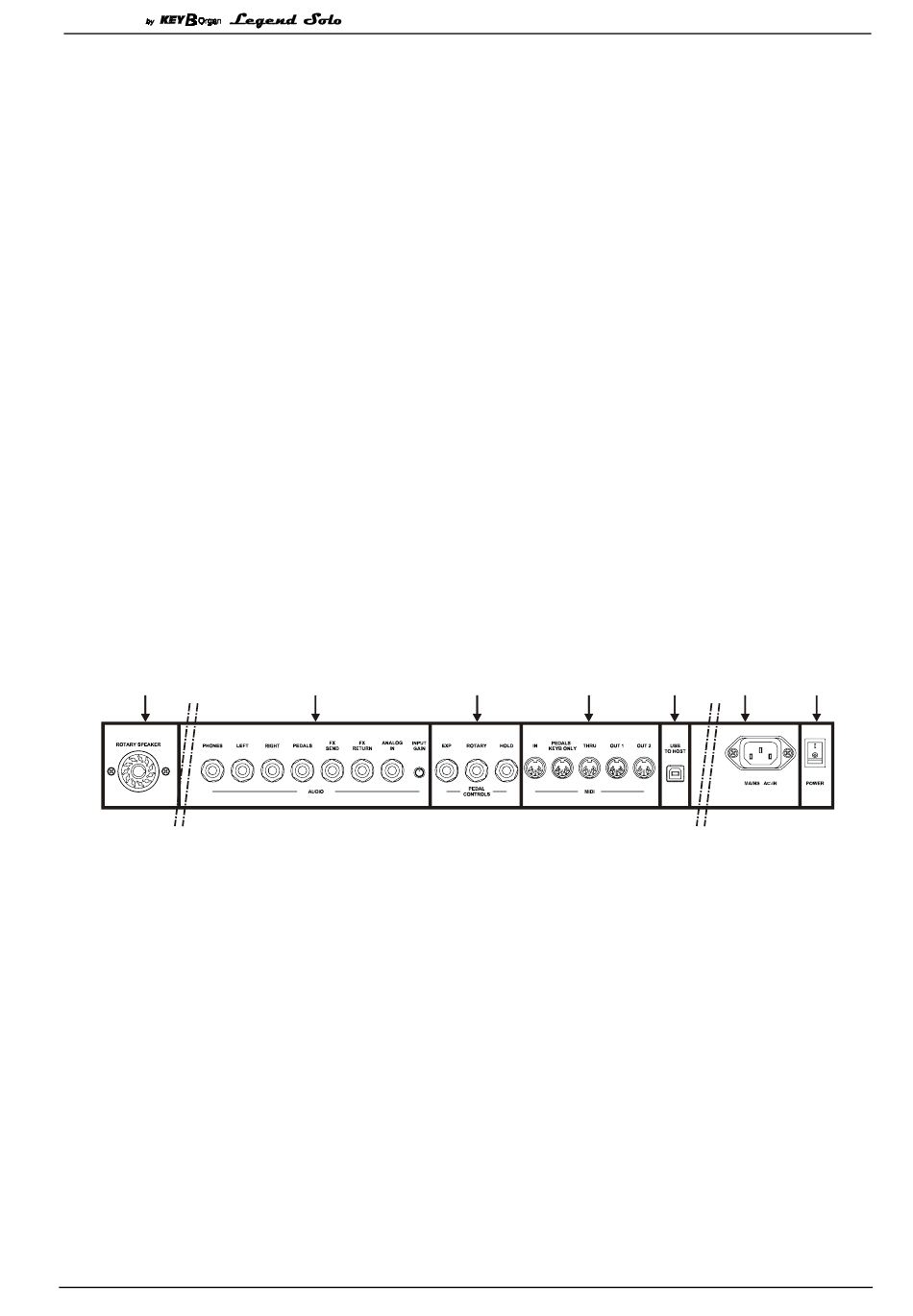

3.2 REAR PANEL
1 1
1. [ROTARY SPEAKER] connector.
11-pin connector for the connection of an external speaker. This output transmits the signal generated by
drawbars, equalizer, Vibrato or Chorus effects, Reverb when set as PRE (see par. 5.2) and Drive.
Furthermore, through this connector, using the rotating speaker controls (see point 12 of par.3.1) you can
select the speed (FAST or SLOW) of the speakers' rotation, or stop the engine (Brake mode).
2. [AUDIO] jack connectors.
- [PHONES]: stereo output for connecting a set of headphones. The port sends out the instrument's
general signal.
- [LEFT] and [RIGHT]: line outputs; use to connect the instrument to external audio devices (amplified
speakers, mixers, amplifiers); they transmit the instrument's general signal.
When used with stereo systems, connect the [LEFT] output to the left channel and the [RIGHT] output to
the right channel. When using a monophonic system, any of the two outputs ([LEFT] or [RIGHT]) can be
connected indistinctly; however, doing so will make it impossible to hear the stereophonic effect
generated by the Rotary simulation: it is only possible to hear the connected audio channel. Therefore
this is not recommended.
- [PEDALS]: line output dedicated to the signal of pedalboard drawbars. To enable this output,
simultaneously press the [TRANSPOSE SELECT] and [PEDALS TO LOWER] buttons. Thus, the pedal
sound is also excluded from the [LEFT], [RIGHT], and [PHONES] outputs. When output is enabled, the
[PEDALS TO LOWER] led is red. Press the same buttons again to reset the pedal sound to the other
)
selects the second harmonic (equivalent to a 4 'register), 3rd
2 3 3
EN - 7
Single
mode) or in the Upper section
)
the volume of the percussion is set
4 4 5 5 6 6
User Manual
7 7
