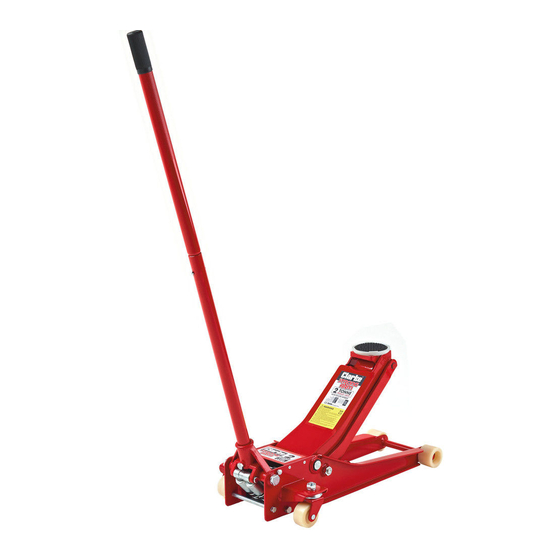

Clarke CTJ2000G Manual

SYSTEM AIR PURGE
l
1. Turn handle ONE full turn anticlockwise and pump handle EIGHT full strokes.
2. Turn handle clockwise FULLY, and pump handle to maximum height...then continue to
pump 5 or 6 times to remove trapped air.
3. Turn handle anticlockwise and allow arm to lower and ram to fully retract.
4. Turn handle clockwise FULLY, and pump handle to maximum height to test pump action.
NOTE: It may be necessary to perform the above action more than once to ensure that air is
totally evacuated.
FAULT FINDING
PROBLEM PROBABLE CAUSE
Jack will not lift Oil level low
to full height
Jack will not hold . 1 Release valve not closing
the load 2 Pump valves not seating
3 Air in ram
Arm will not lower 1 Broken return Spring
2 Lift arm linkage bent or
binding
3 Cylinder ram binding
4 Parts Worn
Jack feels spongy when Air in system
lifting
SPECIFICATIONS
CTJ2000G
CTJ2000GA
Maximum load (tonnes) 2
Min. Saddle Height (mm) 120
Maximum Height (mm) 190
Overall Length (mm) 645
Overall Width (mm) 345
Weight (kg/lbs) 38.5/85
Part No. 1600650
7621010
SPARE PARTS
The following user serviceable parts are available from your Clarke dealer, or Clarke
International Parts Dept.
For Spare Parts and Servicing, please contact your nearest dealer, or
1. Saddle
CLARKE International, on one of the following numbers.
2. Castor Assembly
PARTS & SERVICE TEL: 020 8988 7400
3. Front Wheel Assembly
PARTS & SERVICE FAX: 020 8558 3622
4. Valve Operating Lever
REMEDY
Top up oil
1 Turn handle fully clockwise
2 Consult your CLARKE dealer
3 Purge air (see below)
1 Replace (See your dealer)
2 Consult your CLARKE dealer
3 Consult your CLARKE dealer
4 Consult your CLARKE dealer
Purge air (see System Air Purge)
CTJ2QLG CTJ2250LS CTJ3QLG CTJ3000LS
2 2.25 3
150 110 150 115
500 525 500 525
633 727 685 727
345 395 350 395
37/81 45.5/100 42/92.5 48/108
7621815 7621015 7621005 7621020
HYDRAULIC TROLLEY JACK
3
Model Nos. CTJ2000G, CTJ2000GA, CTJ2QLG, CTJ2250LS, CTJ3QLG & CTJ3000LS
Thank you for purchasing this Clarke Trolley Jack.
Before attempting to use the unit, please read this instruction booklet thoroughly, and follow
all directions carefully, paying particular attention to the safety precautions. By doing so, you
will ensure the safe operation of the unit, and the safety of yourself and others around you.
You can then look forward to long and reliable service from your CLARKE Trolley Jack.
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused in any way, or not used
for the purpose for which it was intended. Faulty goods should be returned to their place of
purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
GUARANTEE.
0709
