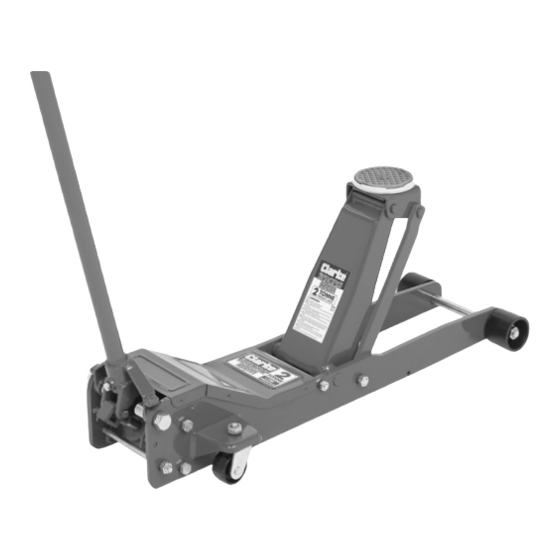

- Page 1 2 TONNE LOW PROFILE TROLLEY JACK MODEL NO: CTJ2LP PART NO: 7623050 OPERATION & MAINTENANCE INSTRUCTIONS LS0609...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE 2 Tonne Low Profile Trolley Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: Specifications
7. Ensure that all personnel are well clear of a load being raised, or lowered. 8. NEVER exceed the rated load for the jack (See “Specifications” on page 3.). 9. Do not use if an oil leak is apparent. Consult your Clarke dealer. -
Page 4: Parts Identification
PARTS IDENTIFICATION... - Page 5 ASSEMBLY 1. Place the two parts of the handle together and secure together using the bolts provided. 2. Insert the handle into position and secure using the small bolts and washers supplied. 3. Lift off the top cover. 4. Remove the travel plug and replace with the oil filler plug / air vent valve supplied.
-
Page 6: Operation
OPERATION POSITIONING Ensure the load is chocked and stable and on firm level ground. 1. Position the jack so that the saddle is directly beneath the lifting point and that there are no obstacles to prevent a clean lift, also, make sure that all personnel are well away from the area, before raising the vehicle. -
Page 7: Maintenance
BEFORE USE. • Check the jack for damage and loose fittings. If in doubt, do not use. Have damaged parts repaired by your CLARKE dealer. EVERY 6 MONTHS • Oil all joints, linkages and front wheel hubs and apply grease to the castor bearings. -
Page 8: Troubleshooting
Parts Worn Consult your CLARKE dealer If any of these remedies fail to restore your jack, consult your Clarke dealer For Spare Parts and Servicing, please contact your nearest dealer, or CLARKE International, on one of the following numbers. -
Page 9: Exploded Diagram And Parts List
EXPLODED DIAGRAM AND PARTS LIST DESCRIPTION PART NO Ram Assembly CTJ2LP01 Front Wheel Assembly CTJ2LP02 Rear Castor Assembly CTJ2LP03 Saddle CTJ2LP04 Oil Filter Plug / Air Vent CTJ2LP05 Valve Release Valve Assembly CTJ2LP06 Handle Assembly CTJ2LP07 Return Spring CTJ2LP08 Rubber Pad CTJ2LP09... -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY... - Page 11 NOTES...
