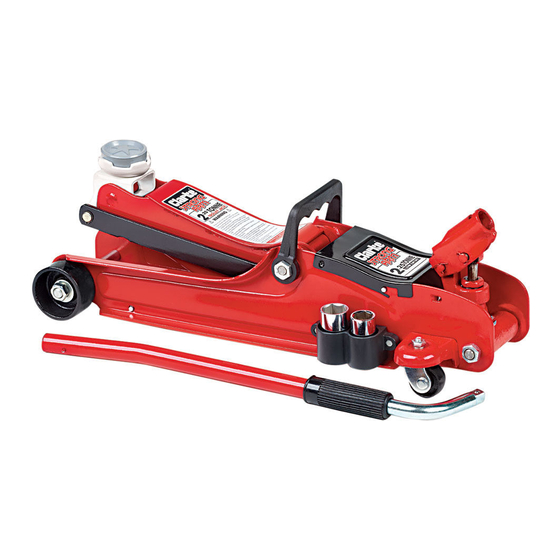

- Page 1 2¼ TONNE TROLLEY JACK MODEL NO: CTJ2250LP PART NO: 7623070 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0719 ISS -2...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE Trolley Jack. Before attempting to use this product, please read this manual throughout and follow the instructions carefully. Thoroughly familiarise yourself with this product & its operation in order to ensure the safety of yourself and others around you. -
Page 3: General Safety Precautions
1. Check the jack for damage before use and do not use if damaged. If in doubt, DO NOT use. Consult your local dealer. 2. ALWAYS use spare parts supplied by Clarke International. Using non- standard parts could be extremely dangerous. -
Page 4: Operation
OPERATION Before use, visually inspect the jack for oil leaks or any other sign of damage. Should any be apparent, have the jack inspected and repaired by a qualified technician before use. The CTJ2250LP trolley jack is equipped with an operating handle which can also be used as a wheel brace, in conjunction with the double-ended sockets carried in the socket holder.. -
Page 5: Maintenance
A large cross headed screwdriver is required. • The oil should be almost level with the bottom of the oil filler hole. • Top up using Clarke Hydraulic Oil (p/n 3050830 for 1 litre). OIL REPLACEMENT 1. With the jack lowered, remove the filler plug. Tilt the jack onto its side and... -
Page 6: General Care
Air in the system Purge the system as on page 5 Jack will not Return spring may Return to your Clarke dealer for lower completely be faulty repair If any of these remedies fail to restore your jack, consult your Clarke dealer. -
Page 7: Component Parts - Ram Assembly
COMPONENT PARTS - RAM ASSEMBLY... -
Page 8: Component Parts
COMPONENT PARTS Description No Description Front wheel Front axle Bush Lifting arm assembly Flat washer Centre shaft Spring washer Saddle Nut M12 Saddle support Left frame Circlip No17 Socket holder Ram pivot shaft Nut M5 Filler plug Socket 17/19 mm Saddle pad Socket 21/23 mm O-ring 7.8 x1.9... -
Page 9: Component Parts - General Assembly
COMPONENT PARTS - GENERAL ASSEMBLY... -
Page 10: Environmental Protection
COMPONENT PARTS Description No Description Ram cylinder O-ring 21.7 x 3 Oil reservoir Handle socket Oil filling plug Piston pivot U-seal Handle hinge pin O-ring retainer Split pin Guide ring Pump connecting clip Ram piston Actuating piston Nylon washer Hydraulic seal kit Reservoir end cap ENVIRONMENTAL PROTECTION One of the most damaging sources of environmental pollution is oil products. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY...
