Interpreting management module LEDs

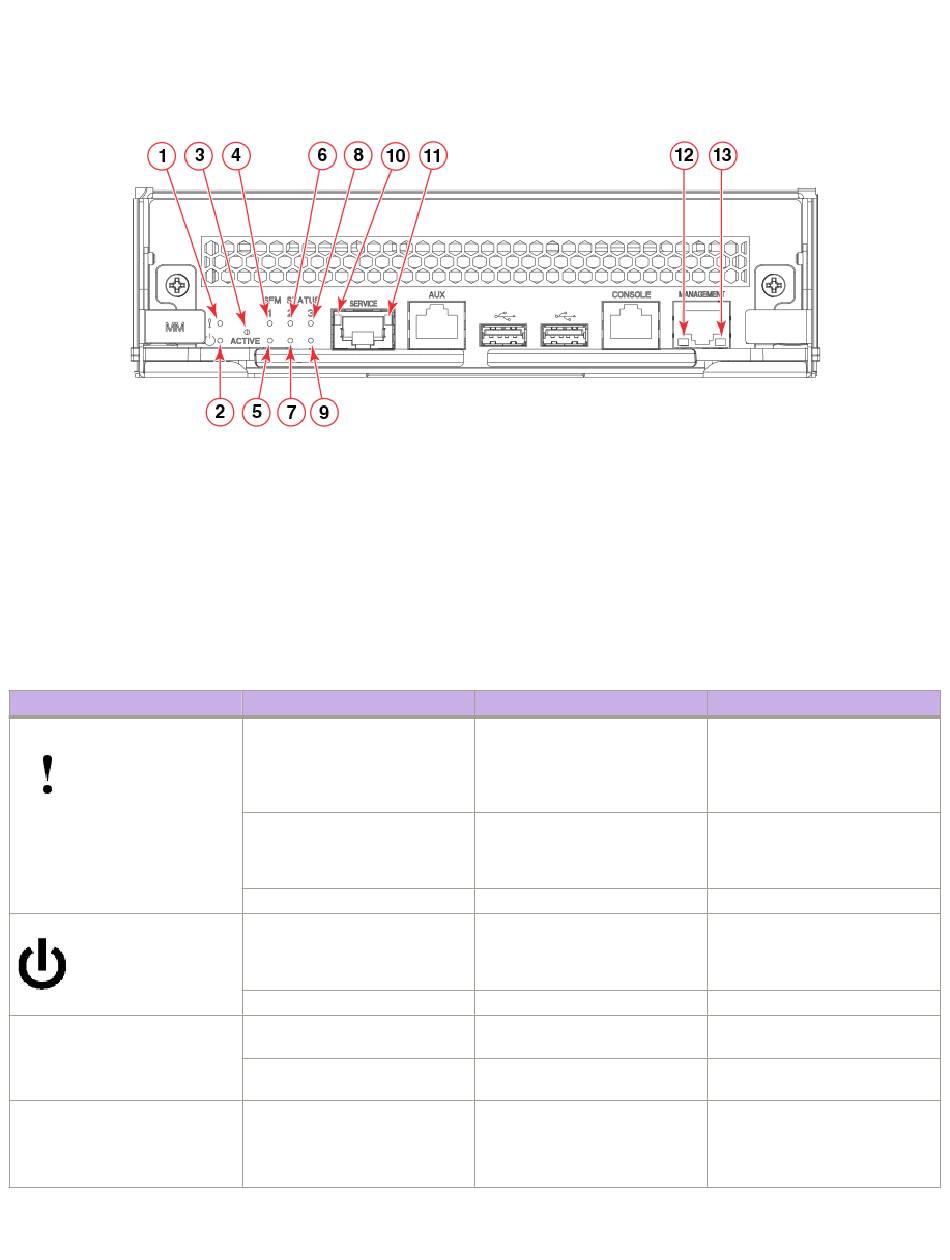

FIGURE 32 Management module LEDs
1. Status
2. Power
3. Active
4. Switch fabric module 1 (SFM1) status
5. SFM2 status
6. SFM3 status
7. SFM4 status
The following table describes the management module LED patterns and the recommended actions for those patterns.
TABLE 20 Management module LED descriptions
LED purpose
Status
Power
Active
SFM Status 1-6
These LEDs correspond to the
SFMs that are located behind each
management module. Since the
76
Color
No light (LED is off)
Amber
Green
No light (LED is off)
Green
Blue
Off
No light (LED is off)
8. SFM5 status
9. SFM6 status
10. Ethernet
11. Ethernet
12. Ethernet
13. Ethernet
Status
Module is either not operational or
does not have power.
Module is faulty or initializing.
Module is powered on.
Module is not powered on.
Module is operational.
This is the active management
module.
This is the standby management
module.
An SFM is not installed in that slot,
or the SFM does not have power.
ExtremeRouting SLX 9850-4 Hardware Installation Guide
Recommended action
Ensure that the module is firmly
seated, that both ejectors (arms on
the side of the module) are pushed
in fully, and that both captive screws
are tightened.
Check the module status by
entering the show slots command.
If the LED remains amber, consult
the device supplier.
No action is required.
Ensure that the module is firmly
seated, that both ejectors are
pushed in fully, and that both
captive screws are tightened.
No action is required.
No action is required.
No action is required.
Verify that an SFM is installed in the
slot that corresponds to the LED. If
there is no SFM installed in that
slot, no action is required.
