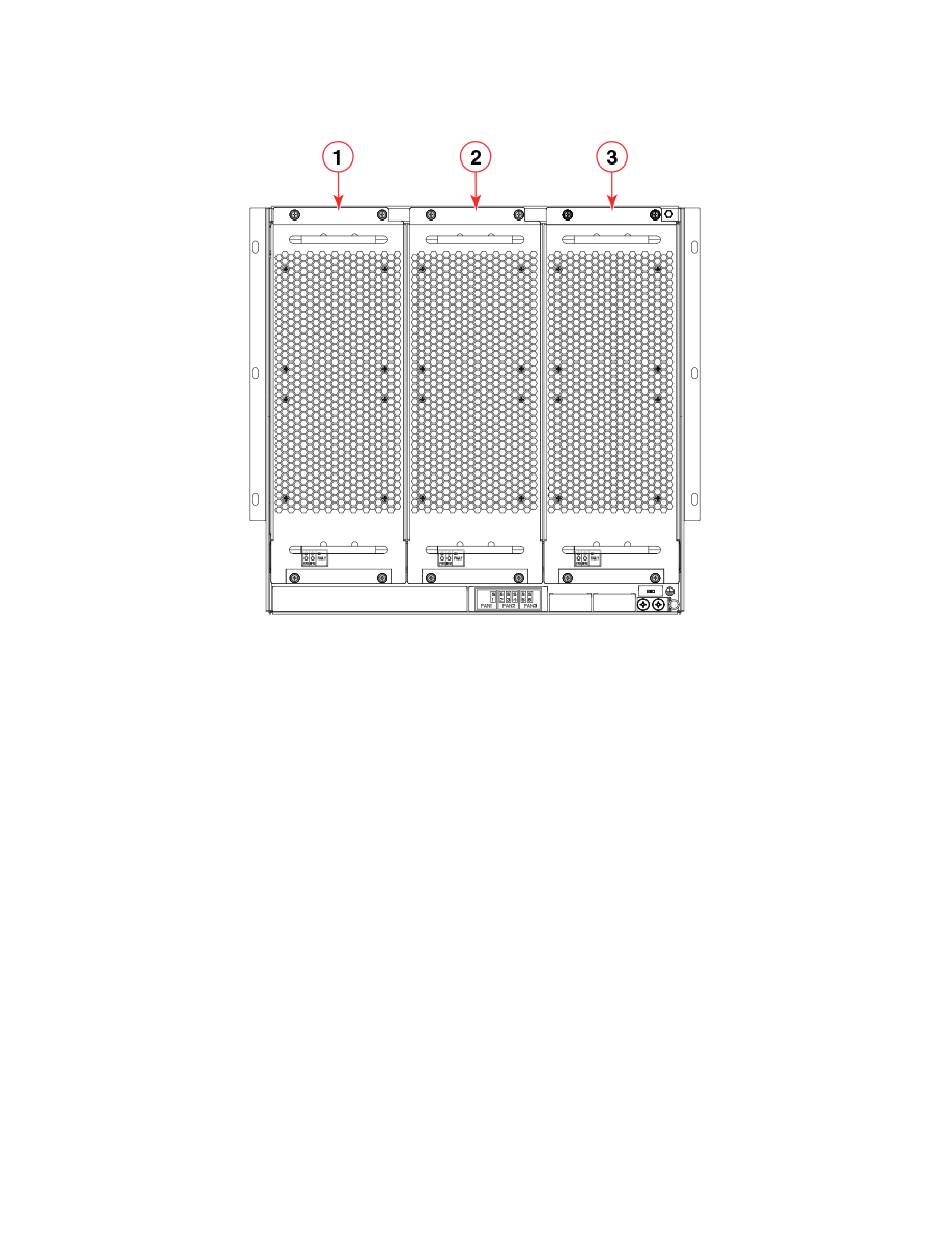

FIGURE 2 Nonport side of the SLX 9850-4
1.
Fan module 1
2.
Fan module 2
The switch fabric modules are located behind the fans. There are six slots for the switch fabric modules. Numbering for the modules
goes from left to right, with 1 on the far left and 6 on the far right.
ExtremeRouting SLX 9850-4 Hardware Installation Guide
9035474-02 Rev AA
3.
Fan module 3
Device slot numbering: nonport-side
