Flush mount

1. Install the saddle from the rack-mount kit for the two-post rack using 6 screws (3 on each side of the saddle).
• If the two-post rack has round, threaded screw holes, use 6 screws from the rack-mount kit, with no additional hardware, to
attach the saddle to the posts.
• If the two-post rack has rectangular, unthreaded holes, use 6 screws, 6 nuts, and 6 alignment washers from the rack-
mount kit to attach the saddle to the posts.

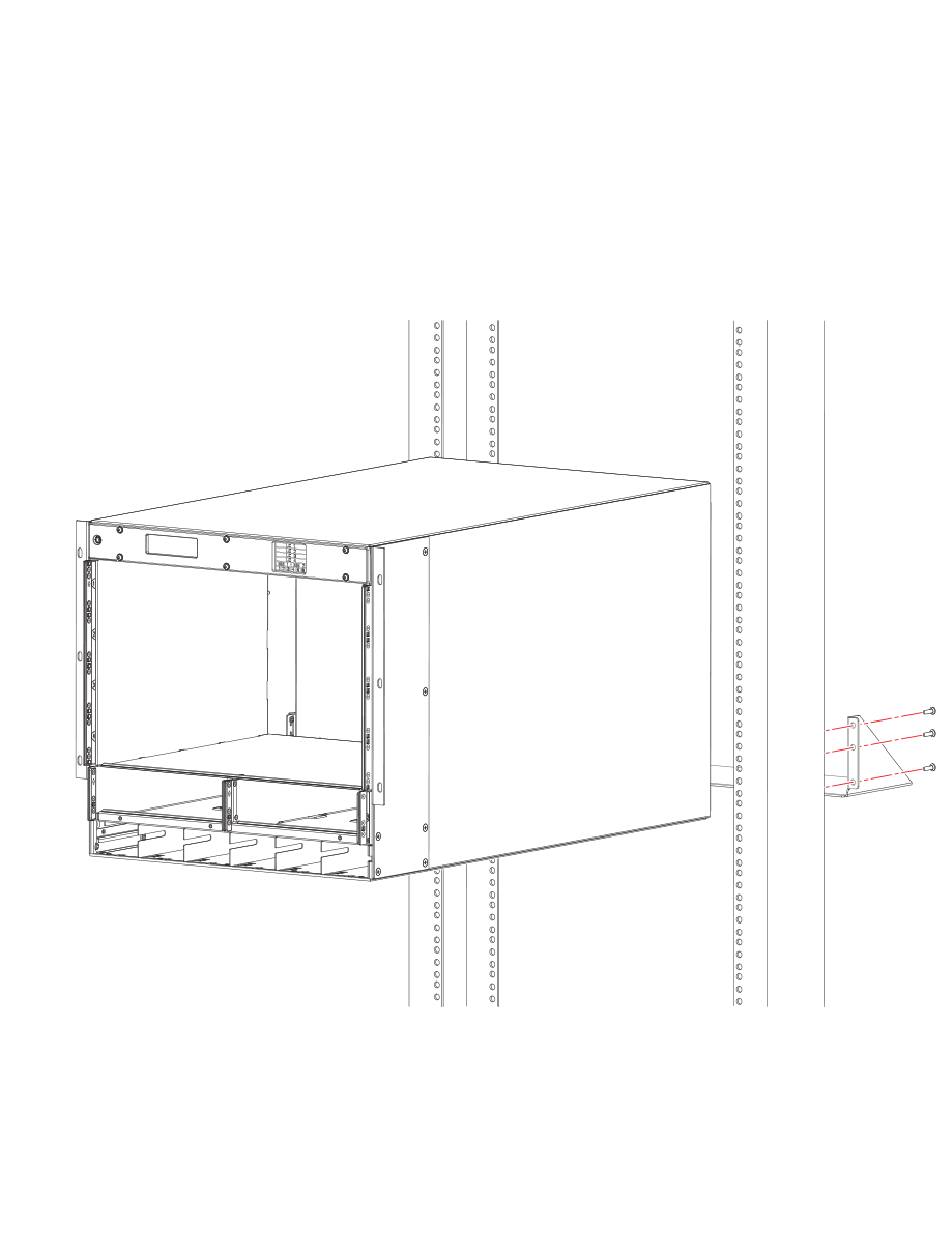

FIGURE 12 Installing the saddle onto the two-post rack
2. Remove the two side plates on the front (port) side of the chassis.
3. Attach the larger side plates from the mid mount kit using 16 screws (8 per side).
4. Prepare the device for mounting by attaching the lift to the device chassis.
5. Using the lift, raise the device to the correct level.
6. If applicable, lock the wheels of the lift.
