Device slot numbering: nonport-side

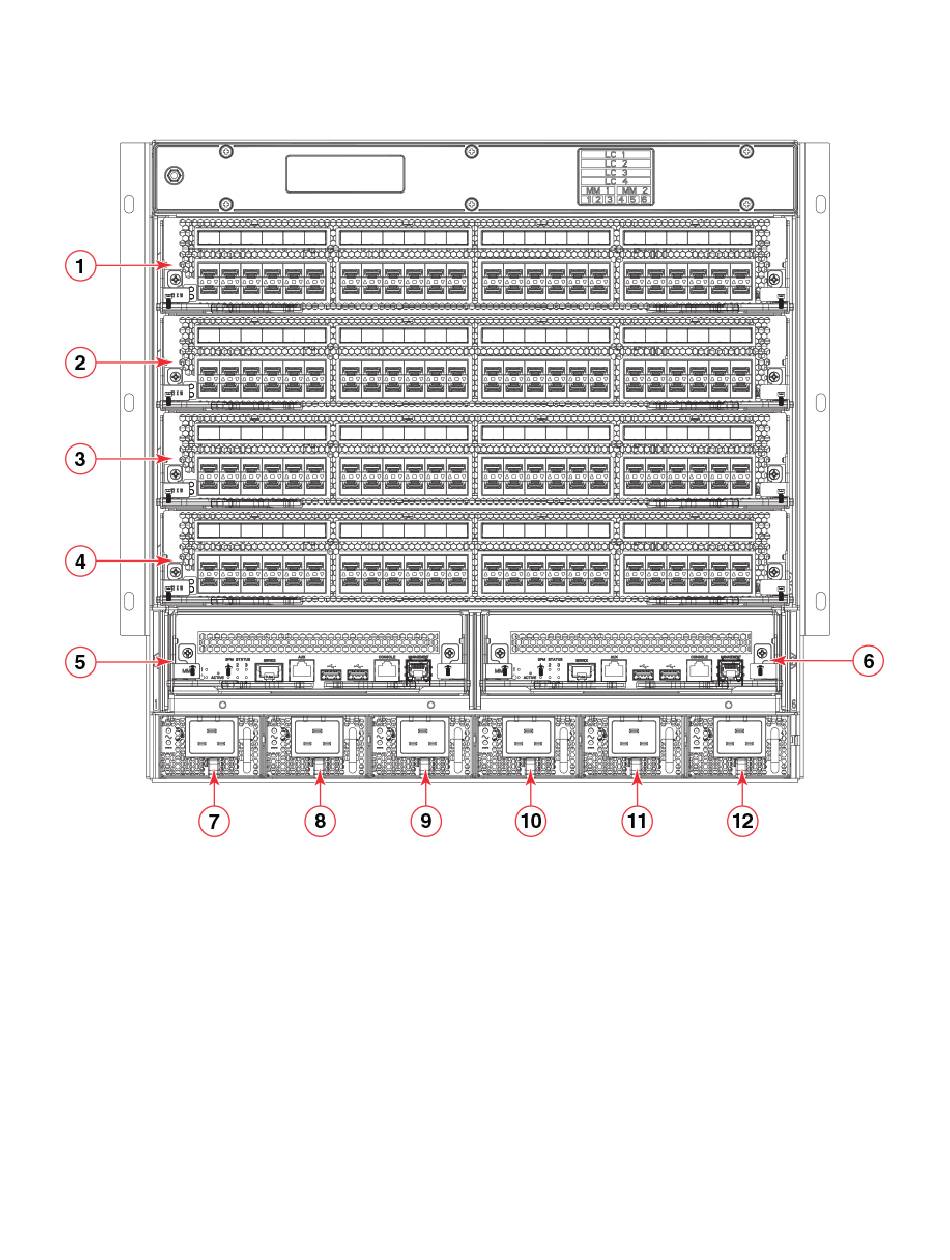

FIGURE 1 Port side of the SLX 9850-4
1. Interface module slot 1
2. Interface module slot 2
3. Interface module slot 3
4. Interface module slot 4
5. Management module slot 1
6. Management module slot 2
Device slot numbering: nonport-side
The following figure shows the nonport-side view of the SLX 9850-4. The callouts in the figure correspond to the numbering of the fan
modules when you enter the show slots command.
18
7. Power supply slot 1
8. Power supply slot 2
9. Power supply slot 3
10. Power supply slot 4
11. Power supply slot 5
12. Power supply slot 6
