Intersection Equipment Installation Instructions

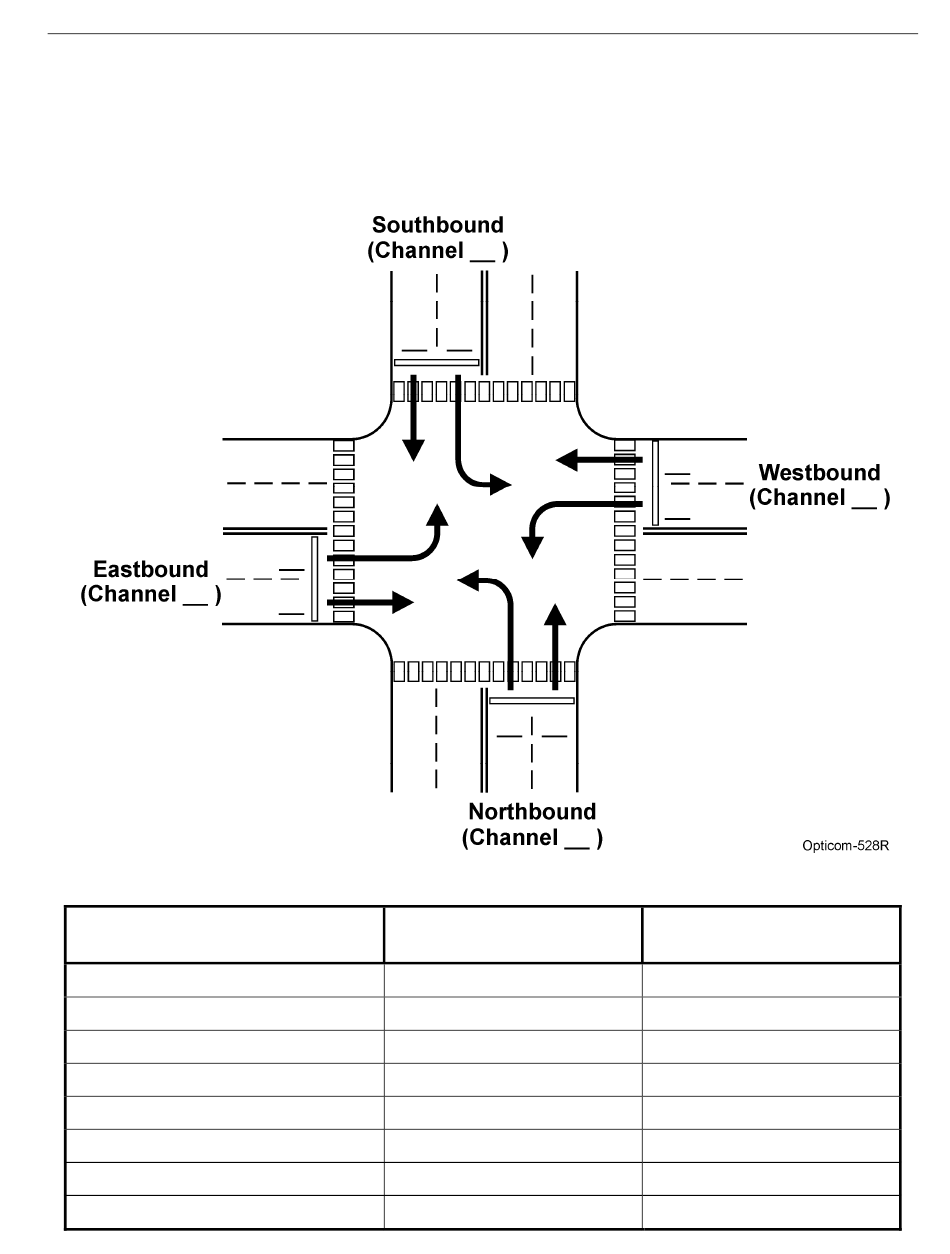

12 Appendix B: Opticom™ GPS System Output Connection Worksheet (High Priority only)
Intersection Name: _______________________________________
Radio Channel: __________________________________________
Connect Phase Selector Output
Output _________________________
Output _________________________
Output _________________________
Output _________________________
Output _________________________
Output _________________________
Logic Common (gray/black)
AIP Opto Common
To Controller Preempt Input
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Logic Common
Logic Common
Then, Program Controller to
Display Greens for:
Phases ____ and ____
Phases ____ and ____
Phases ____ and ____
Phases ____ and ____
Phases ____ and ____
Phases ____ and ____
55
