Intersection Equipment Installation Instructions 47

8 Checkout

For details on how to check out and test the
Opticom™ GPS System, refer to the Operation
Manual and ITS Explorer Help files

9 Troubleshooting

9.1 Fuse Location

Figure 9-1 shows the location of the fuse (200
mA, 125V or greater slow-blow) on the front of
the Opticom GPS System Card Rack.

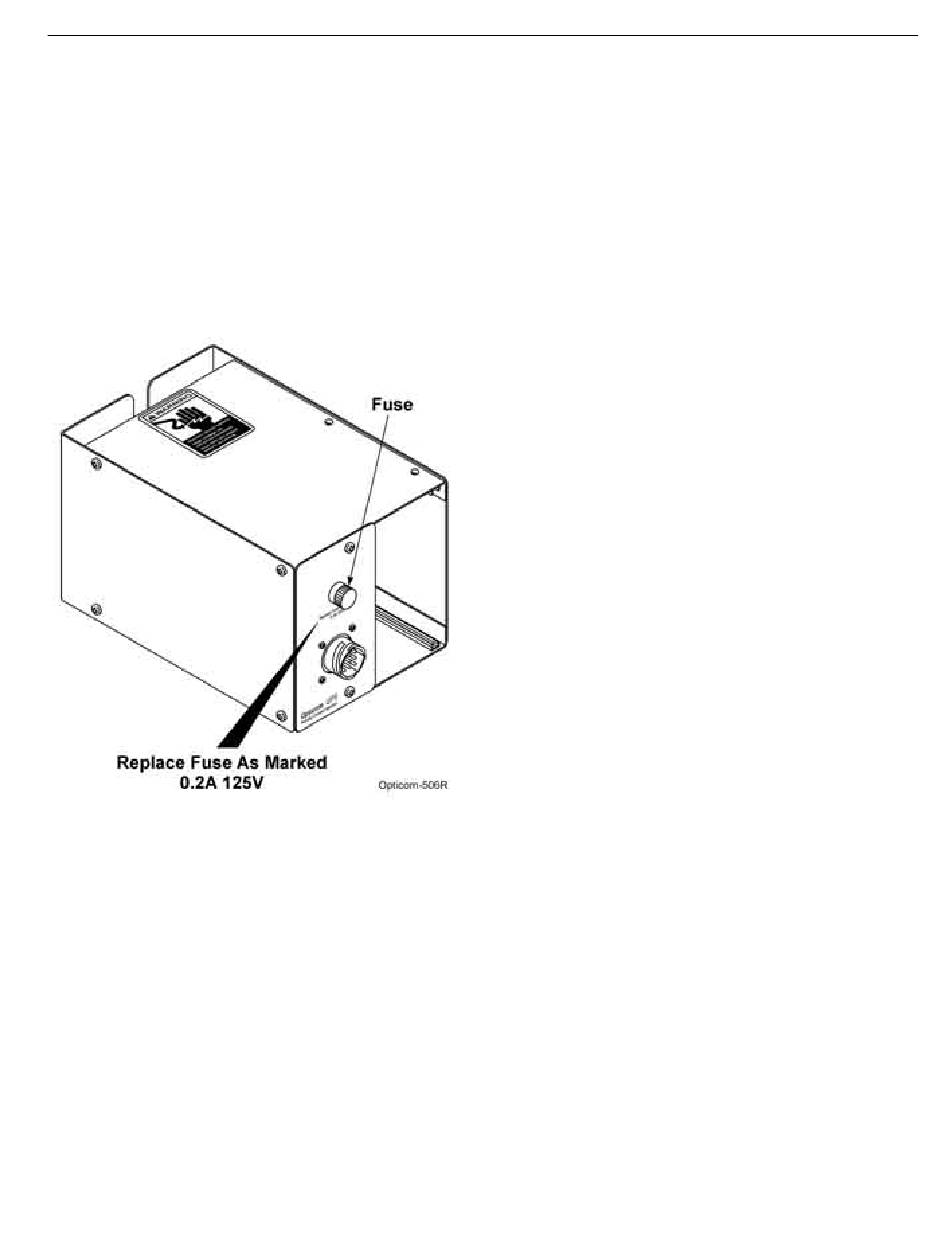

Figure 9-1. Fuse Location on Card Rack
