Intersection Equipment Installation Instructions

11 Appendix A: Card Rack Wiring Diagram

Figure A-1 shows a wiring diagram of the card rack
used with Opticom™ GPS System intersection
equipment.

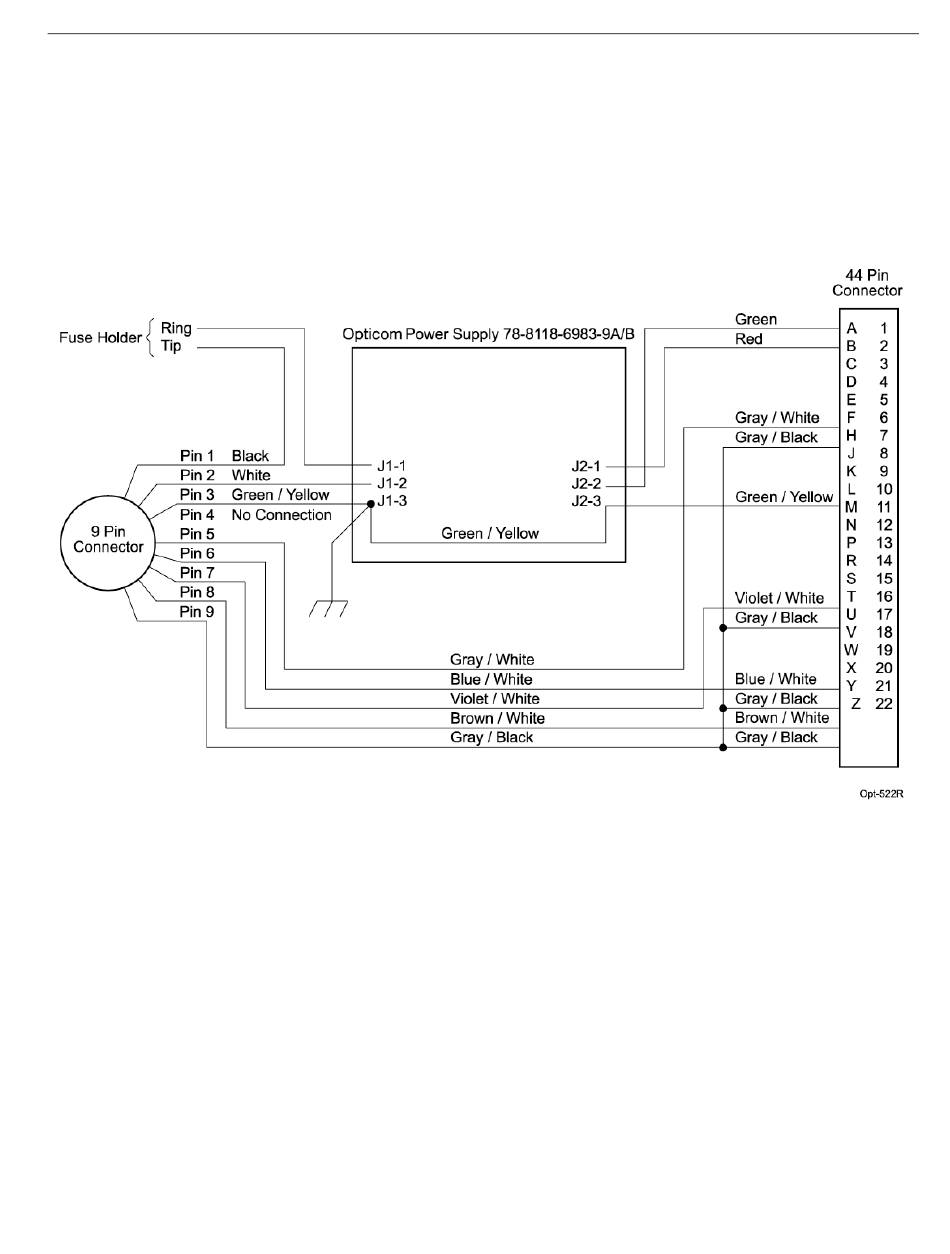

Figure A-1. Card Rack Wiring Diagram
