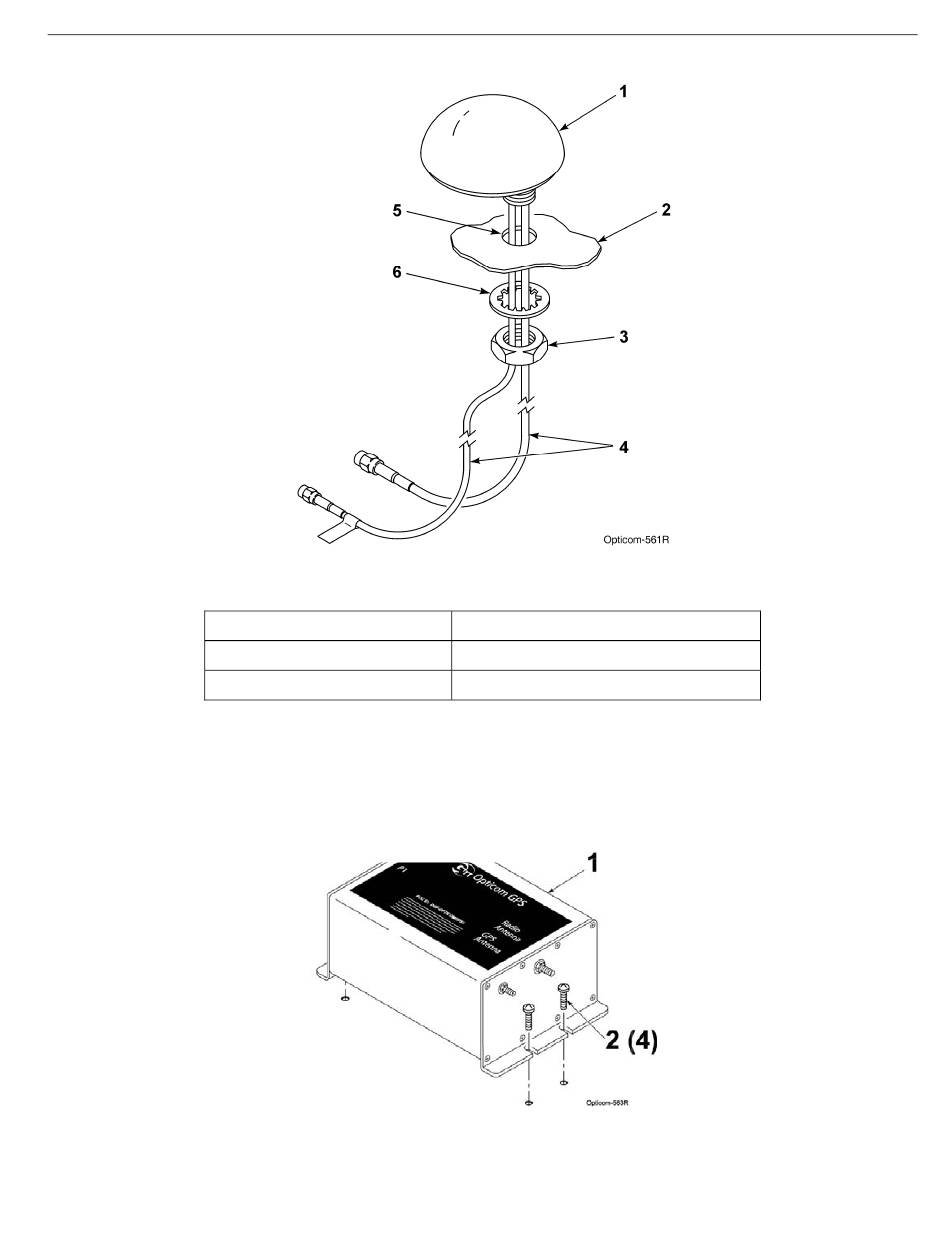

Figure 5-7. Mounting Model 1050 Radio/GPS Antenna on Cabinet Roof
1. Radio/GPS antenna
2. Traffic cabinet roof
3. Antenna nut

5.3.2 Radio mounting

The Model 1012 radio may be placed on a shelf
in the cabinet or it may be mounted using the
included self-tapping screws.
Intersection Equipment Installation Instructions
Figure 5-8. Mounting Model 1012 Radio/GPS Unit
4. Radio and GPS antenna cables
5. 5/8 to 3/4-inch mounting hole
6. Antenna lock washer
