Communication Cable Installation - GTT Opticom GPS System Installation Manual

Intersection Equipment Installation Instructions

5.5.6 Communication Cable Installation

NOTE: If the installation includes remote
communication cabling, one communication
cable is required for each Opticom™ GPS
System Phase Selector.
1. Plug one end of the communication cable into
the communication port on the front panel of
the phase selector. See Figure 5-17.

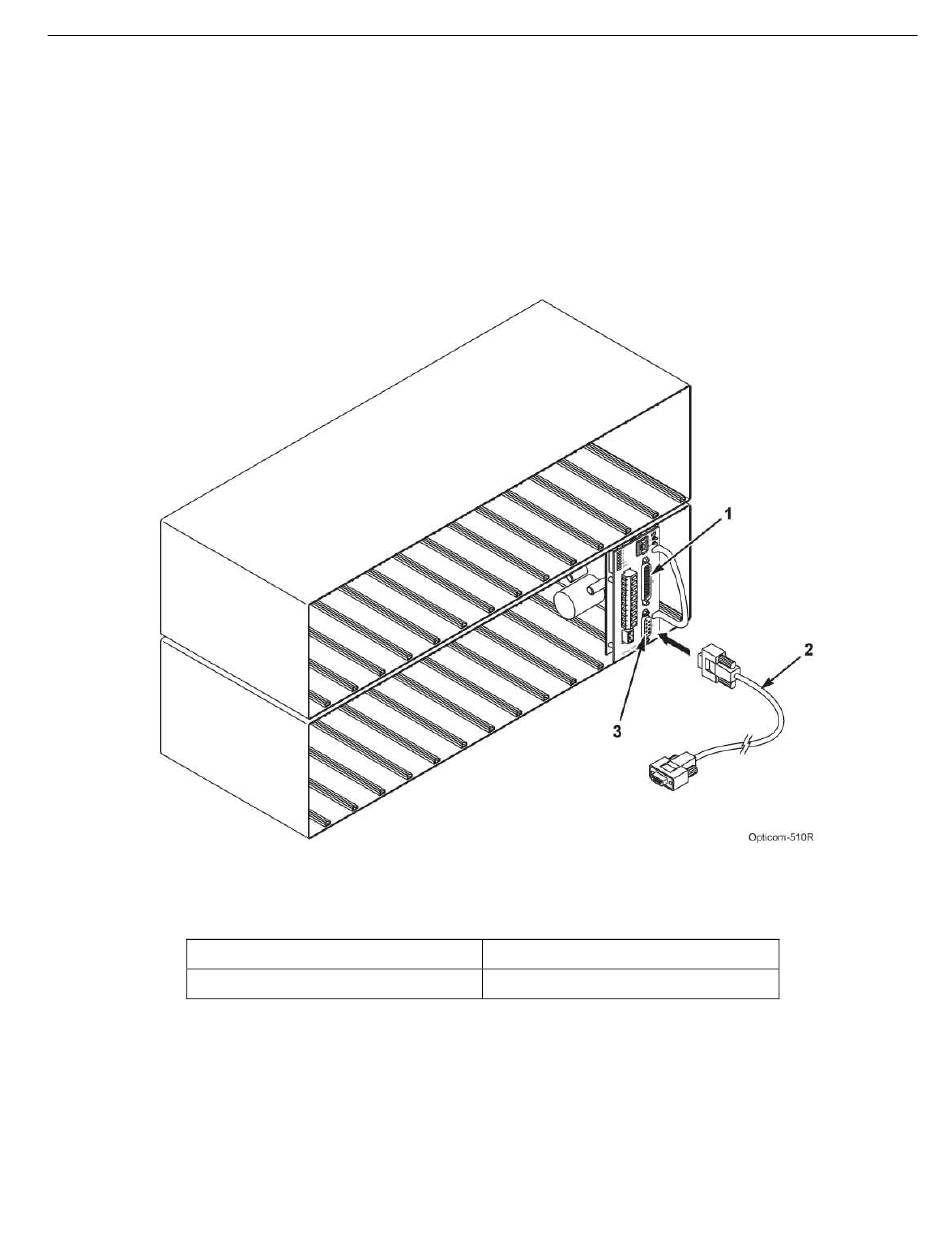

Figure 5-17. Communication Cable Connection to Phase Selector
1. Phase selector
2. Communication cable
2. Plug the other end of the communication
cable into the PC.
3. If a permanent communication connection is
to be made, GTT recommends using the
MODEM port on the auxiliary interface panel.
4. Skip to Section 8, Checkout.
3. Communication port
35
