5.7 Phase Selector Pin Index
Table 5-7 lists the pin index for the edge
connector of the phase selector.

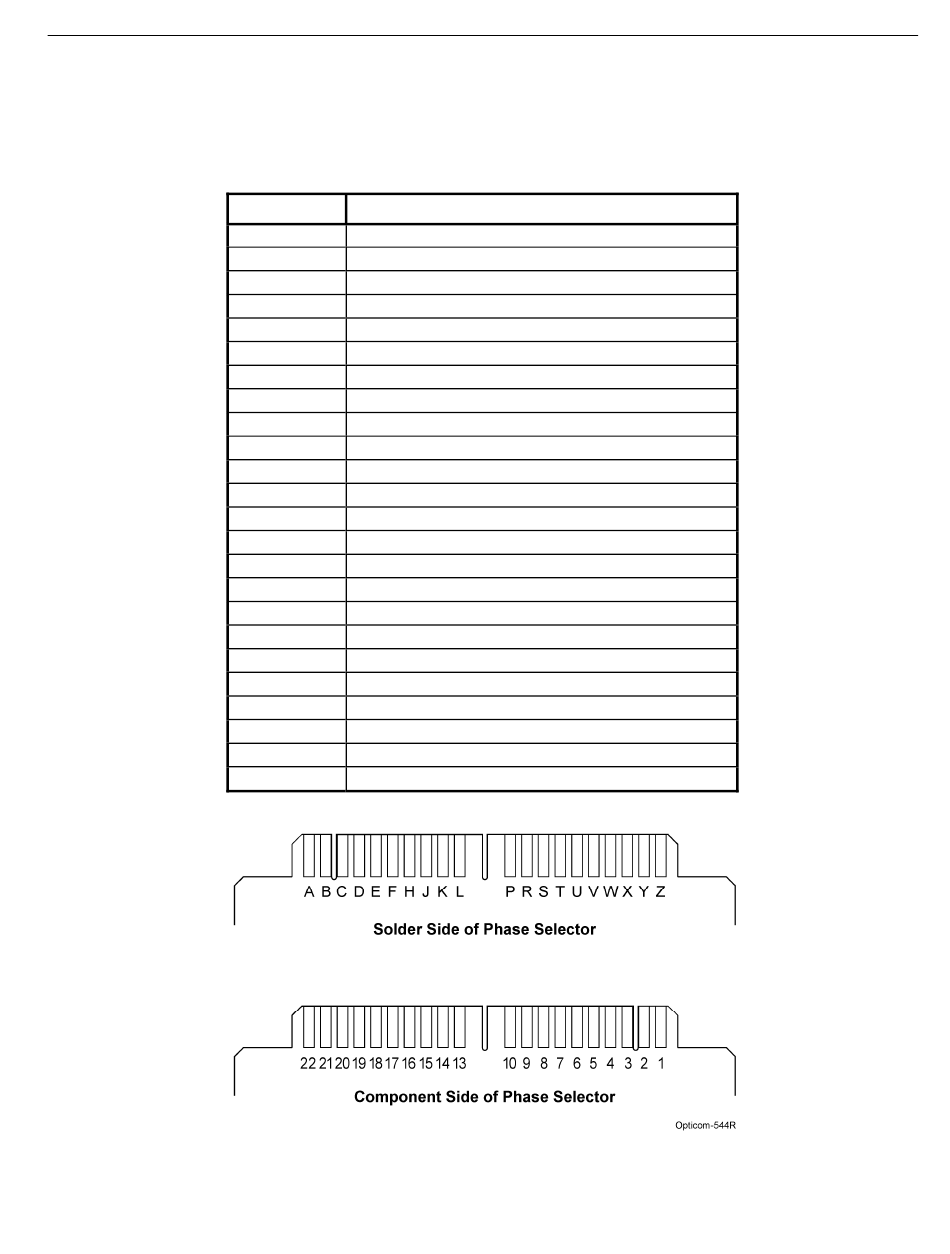

Figure 5-20. Phase Selector Edge Connector Pin Letters and Numbers
Intersection Equipment Installation Instructions
Table 5-7. Phase Selector Edge Connector Pin Index
Pin
Function
A
Ground
B
24 VDC
C
Not used
D
Not used
E
Not used
F
Rear output 1, collector (+)
H
Rear output 1, emitter (–)
J
Not used
K
Not used
L
Earth Ground
M
Not used
N
Not used
P
Not used
R
Not used
S
Rear output 3, collector (+)
T
Rear output 3, emitter (–)
U
Not used
V
Not used
W
Rear output 2, collector (+)
X
Rear output 2, emitter (–)
Y
Rear output 4, collector (+)
Z
Rear output 4, emitter (–)
19
Transmit data
21
Receive data
