REPLACING THE BALLAST (CONTINUED)
5.

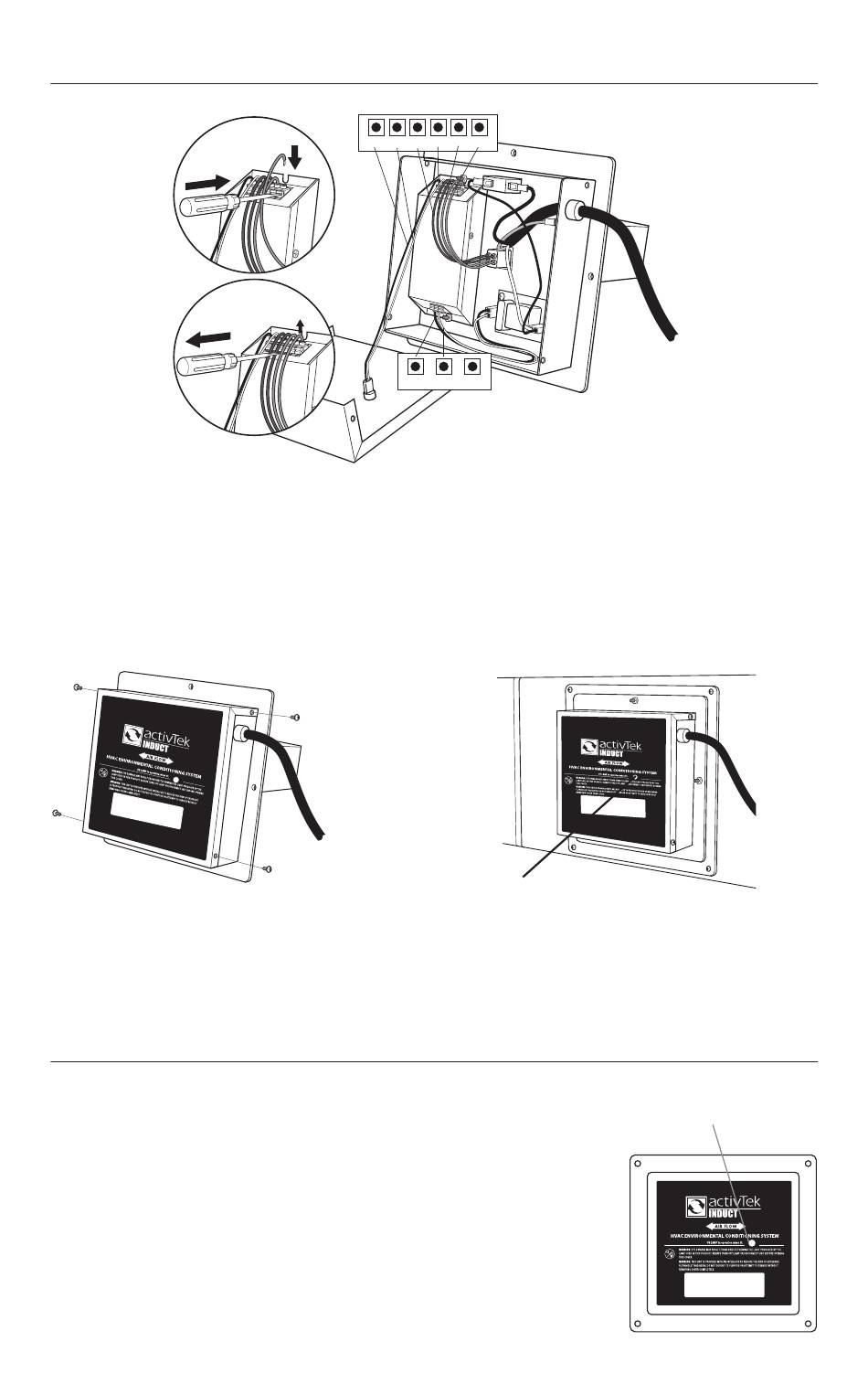

To reconnect wiring, (A) press each tab on the ballast and insert wire. (B) Release tab and gently
pull wire to ensure it is properly locked into place.
UPPER (6 terminals)
• Black LED wire in LED+
• White LED wire in LED-
• 2 Blue wires in BLUE
• 2 Red wires in RED
6.
Replace cover and secure with
the original four (4) screws.
MAINTENANCE/UV LAMP INDICATOR
Your activTek INDUCT 750/2000 unit requires no periodic maintenance
beyond normal replacement of the ActivePure® Cell every year. UV bulb
has an effective life of 9,000 hours.
NOTE: For optimal performance, we recommend the replacement of the
ActivePure® Cell every year, even if the UV lamp appears to be
operating normally.
The UV lamp operation indicator on the face of the unit will glow when
the UV lamp is in use. If the indicator does not glow and the unit has
power, the ActivePure® Cell should be replaced.
10
A
LED+ LED- RED RED BLUE BLUE
B
BLACK WHITE GREEN
LOWER (3 terminals)
• Black power wire in BLACK
• White power wire in WHITE
• GREEN is not used
LED INDICATOR
7.
Re-install unit if removed from duct.
Reconnect power and check for proper
operation (LED indicator should be lit
when in operation).
UV lamp operation indicator
