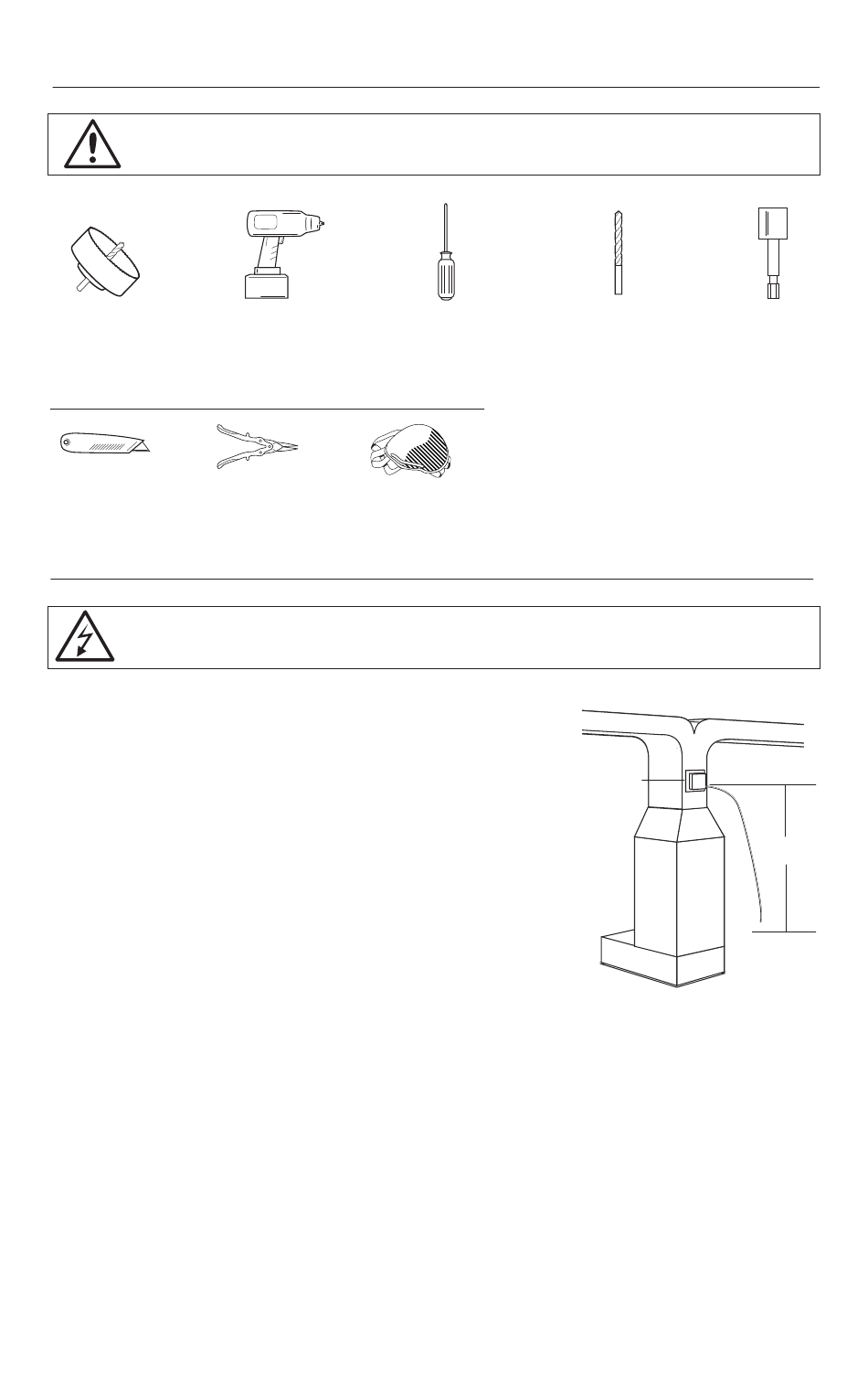

RECOMMENDED INSTALLATION TOOLS

CAUTION:
3 1/2" Hole Saw
for wood or metal
(recommended)
YOU MAY ALSO NEED:
Utility Knife

INSTALLATION REQUIREMENTS

WARNING: This unit is equipped with a universal ballast that operates at nominal voltages
1. Unit should be installed after the air handler in the
HVAC system.
2. The ductwork around the installation area should be clean and dry
to ensure proper adhesion of the gasket materials and any tape
used.
3. When installing near a furnace or heating coils, run the heating
system through three (3) full heating cycles to ensure the
temperature of the INDUCT unit does not exceed 200˚F.
4. An approximate 3.5" (8.89 cm) opening will need to be cut into the
existing ductwork to install the unit properly.
Electrical Requirements for 120 volt installation only
• To use a 120 volt plug, be sure to locate the unit within 6 ft. of a standard 120 volt grounded outlet.
Use of an extension cord is not recommended due to safety considerations.
• Install a US "B" UL approved plug onto the blunt cord.
• Hardwiring Requirements (All units)
NOTE: Permanent wiring of the unit into your HVAC system must be done
by a licensed HVAC installer or electrical contractor only.
For 120V domestic units: Black = L1, White = Neutral, Green = Ground
For commercial units: Black = L1, White = L2, Green = Ground
For International Units: Brown = L1, Blue = L2, Green w/yellow stripe = Ground
4
When the unit is installed in a roof mounted HVAC system, the unit must be
protected from the elements.
Drill/Power Driver
Tin Snips
(for metal ductwork)
between 100 and 240 VAC, 50/60 Hz.
Phillips
(if installing into fiberglass
Screwdriver
ducting with toggle bolts)
Dust Mask
3/8" Drill Bit
Nut Driver Bit
Min. 8" x 8"
Air
Handler
1/4
1/4"
Max. 6 ft.
