6. Function and Control

6.1 Remote Control Operations

(1)Models:YK4EB (AEE07KP,AEE09KP,AEE12KP,AEE18KP,AEE24KP)
Power Pad
1
Turns air conditioner on and off.when
turned on, the display will show the ro-
oom temperature.
2
Temp Increase
Use to set temperature when in
Cool/Energy Saver .The Set light will
turn on while setting.
3
Delay Timer Increase (+) /Decrease
(-) Pads
Each touch of the Increase / Decrease
pads on the unit or the Increase +/De-
crease - pads on the remote control will
set the delay time when using the Delay
1-24hr timer.The Set light will turn on
while setting.

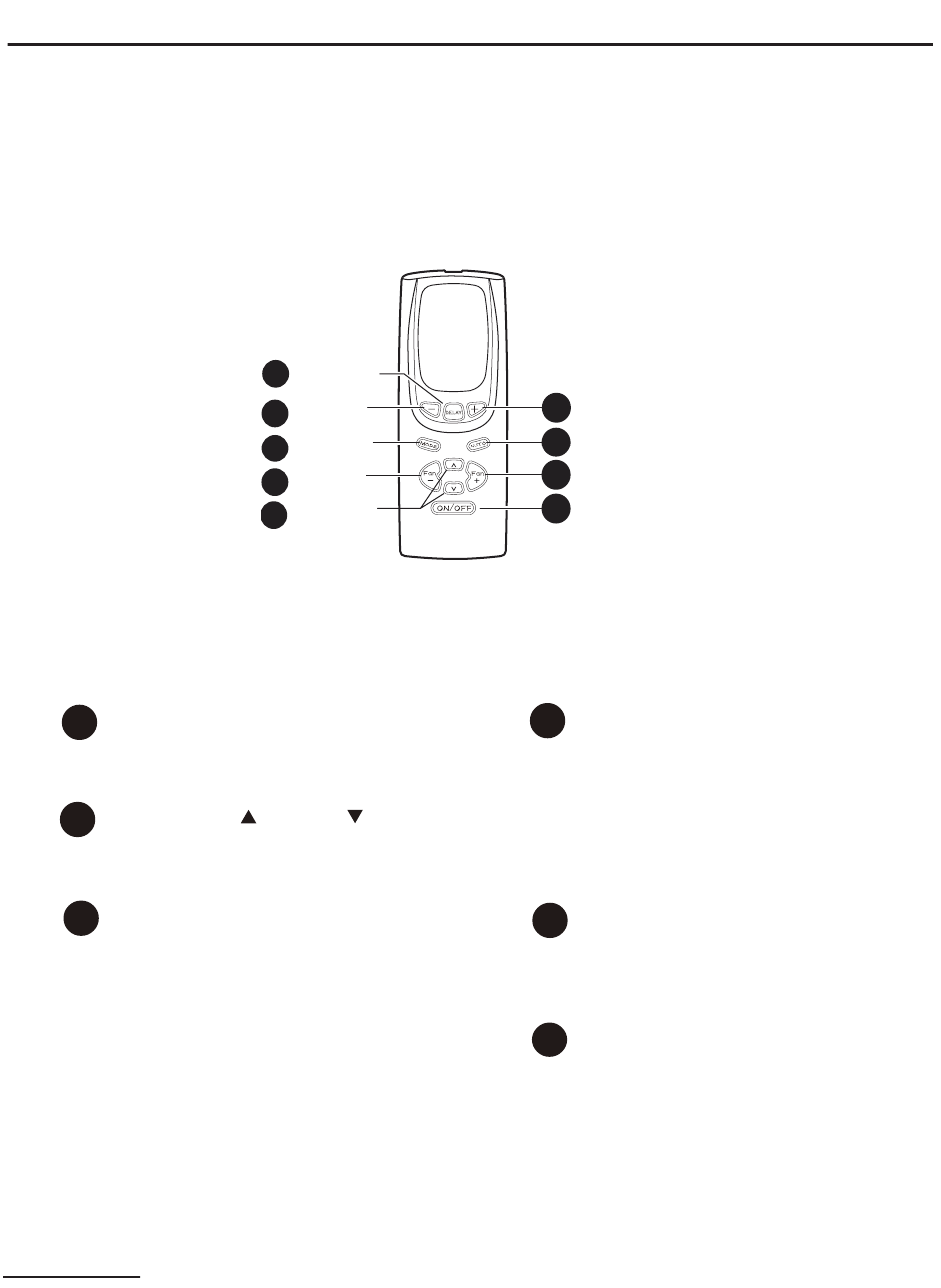

Technical Information
6
Delay 1–24hr
Delay timer
3
Decrease
Mode select
5
Fan speed
4
Decrease
Temperature
2
set Increase
and Decrease
Remote Control
/Decrease Pads
3
Delay timer Increase
4
Auto Fan on
4
Fan speed Increase
1
Unit power on/off
4
Fan Speed Pads
Use the Fan Speed Pads on the unit to
set the fan speed to Low,Med,High or
Auto fan.NOTE: On the remote control, use
the fan speed Increase+/Decrease- pads
to set the fan speeds to Low, Med or High.
Use the Auto pad to turn Auto fan on.
5
Mode Pad
Use to set the air conditioner to Cool,
Energy Saver,Fan only mode.
6
Delay Pads
Delay ON-When the air conditioner is off,
it can be set to automatically come on in 1
to 24 hours at its previous mode and fan
settings.
