Commissioning
7.5.3 Configuration of a connected RTD
1
E
2
1
CDI
i
1 3
F
2 4
HR
on
WP
POWER
SIM

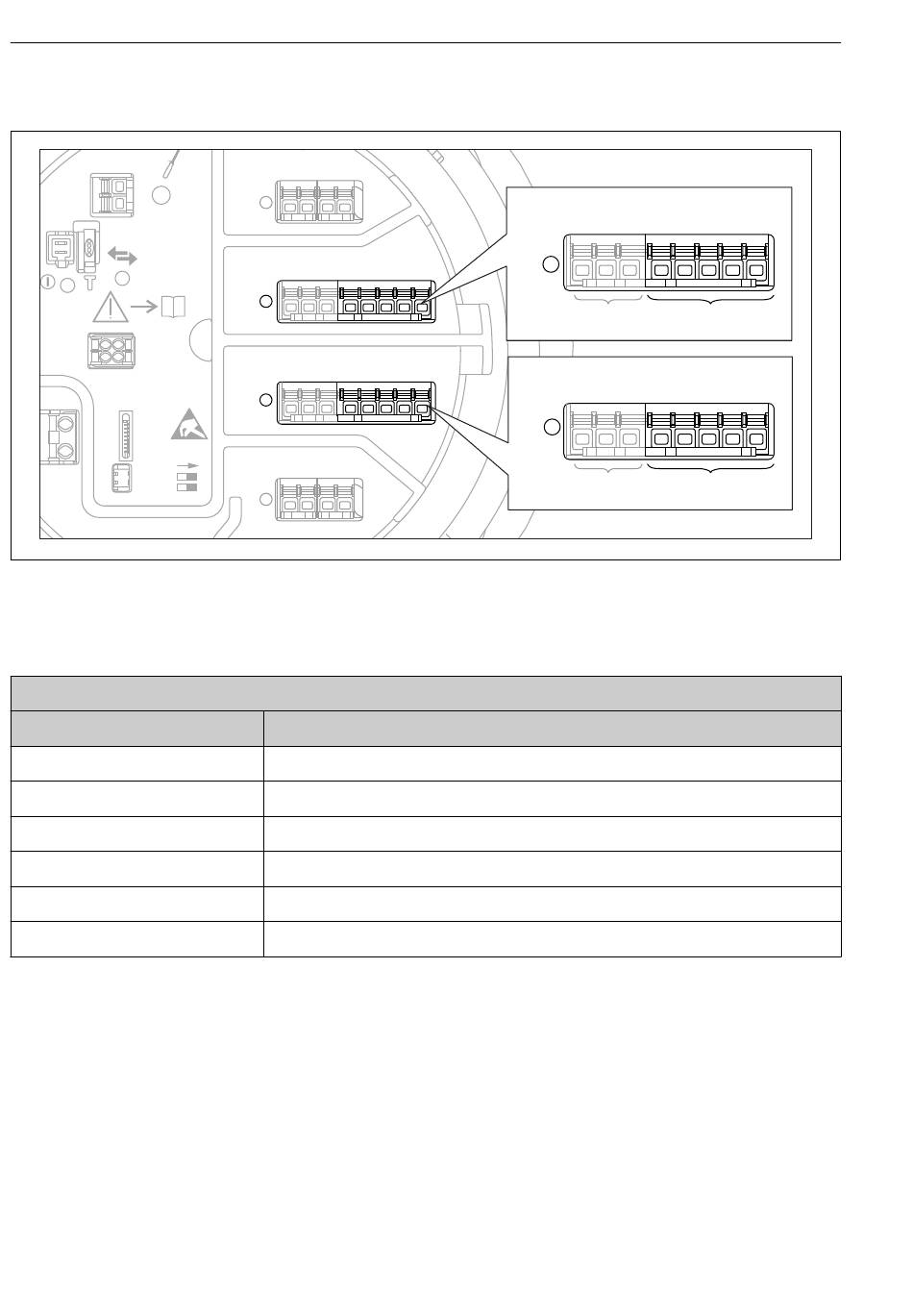

 26 Possible locations of the Analog I/O modules, to which an RTD can be connected. The order code
of the device determines which of these modules is actually present.
Submenu: Setup → Advanced setup → Input/output → Analog IP
Parameter
RTD type
RTD connection type
Input value
Minimum probe temperature
Maximum probe temperature
Probe position
52
D
1 2 3 4
C
1 2 3 4 5 6 7 8
B
1 2 3 4 5 6 7 8
A
1 2 3 4
Meaning / Action
Specify the type of the connected RTD.
Specify the type of connection of the RTD (2-, 3- or 4-wire).
Check whether the indicated value matches the actual temperature.
Specify the minimum approved temperature of the connected RTD.
Specify the maximum approved temperature of the connected RTD.
Enter the mounting position of the RTD (measured from the datum plate).
