Commissioning
7.5.4 Configuration of the digital inputs
1
E
2
1
CDI
i
1 3
F
2 4
HR
on
WP
POWER
SIM

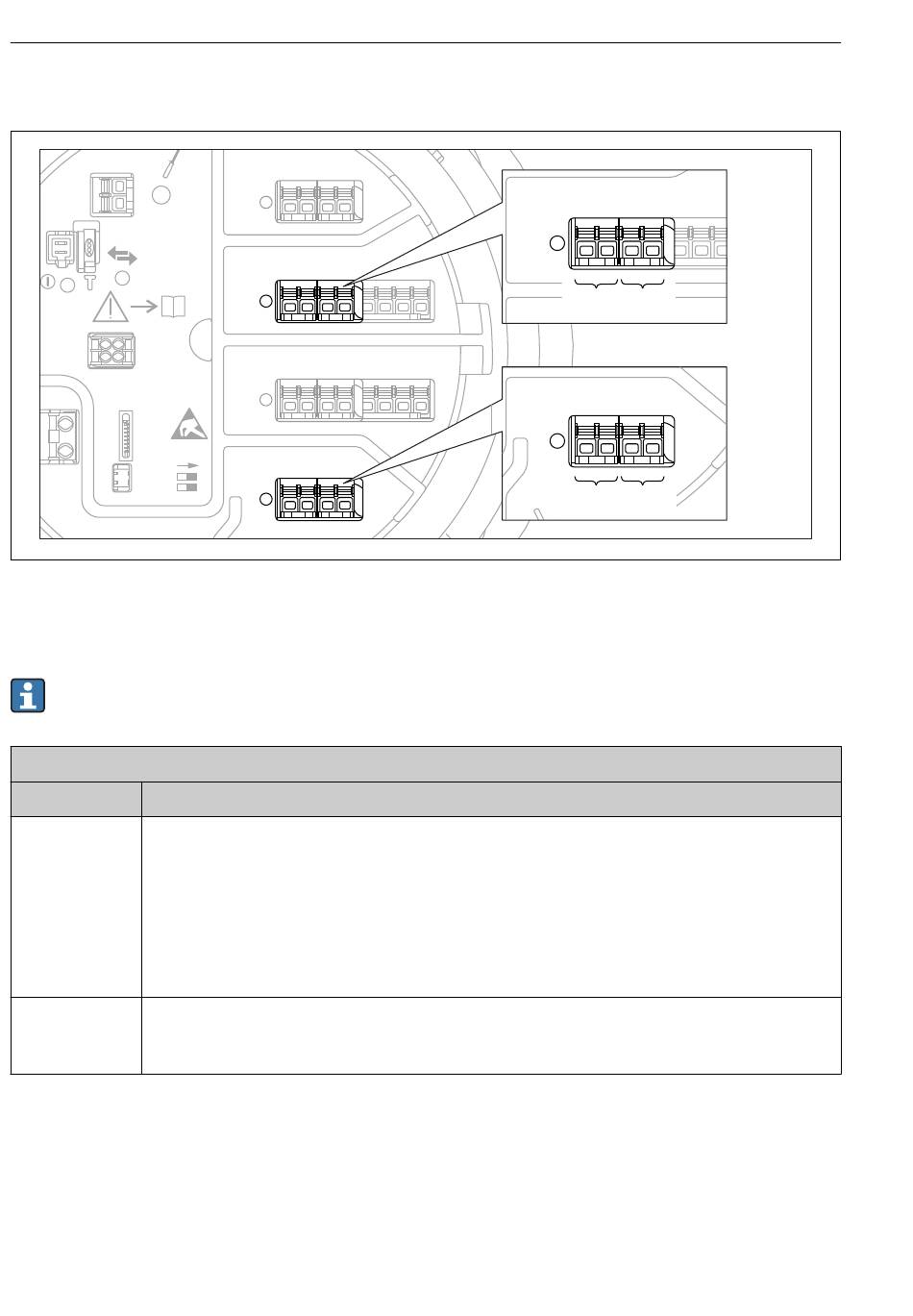

 27 Possible locations of the Digital I/O modules (examples); the order code defines the number and
location of digial input modules.
There is a Digital Xx-x submenu for each digital input of the device. "X" designates the
slot in the terminal compartment, "x-x" the terminals within this slot.
Submenu: Setup → Advanced setup → Input/output → Digital Xx-x
Parameter Meaning / Action
Operating mode Select the operating mode (see diagram below).
• Input passive
The DIO module measures the voltage provided by an external source. Depending on the status
of the external switch, this voltage is 0 (switch open) or exceeds a certain limit voltage (switch
closed). These two states represent the digital signal.
• Input active
The DIO module provides a voltage and uses it to detect whether the external switch is open or
closed.
Contact type Determines how the state of the external switch is mapped to the internal states of the DIO module
(see table below). The internal state of the Digital Input can then be transferred to a Digital Output
or can be used to control the measurement.
