Data verification
Data verification procedure

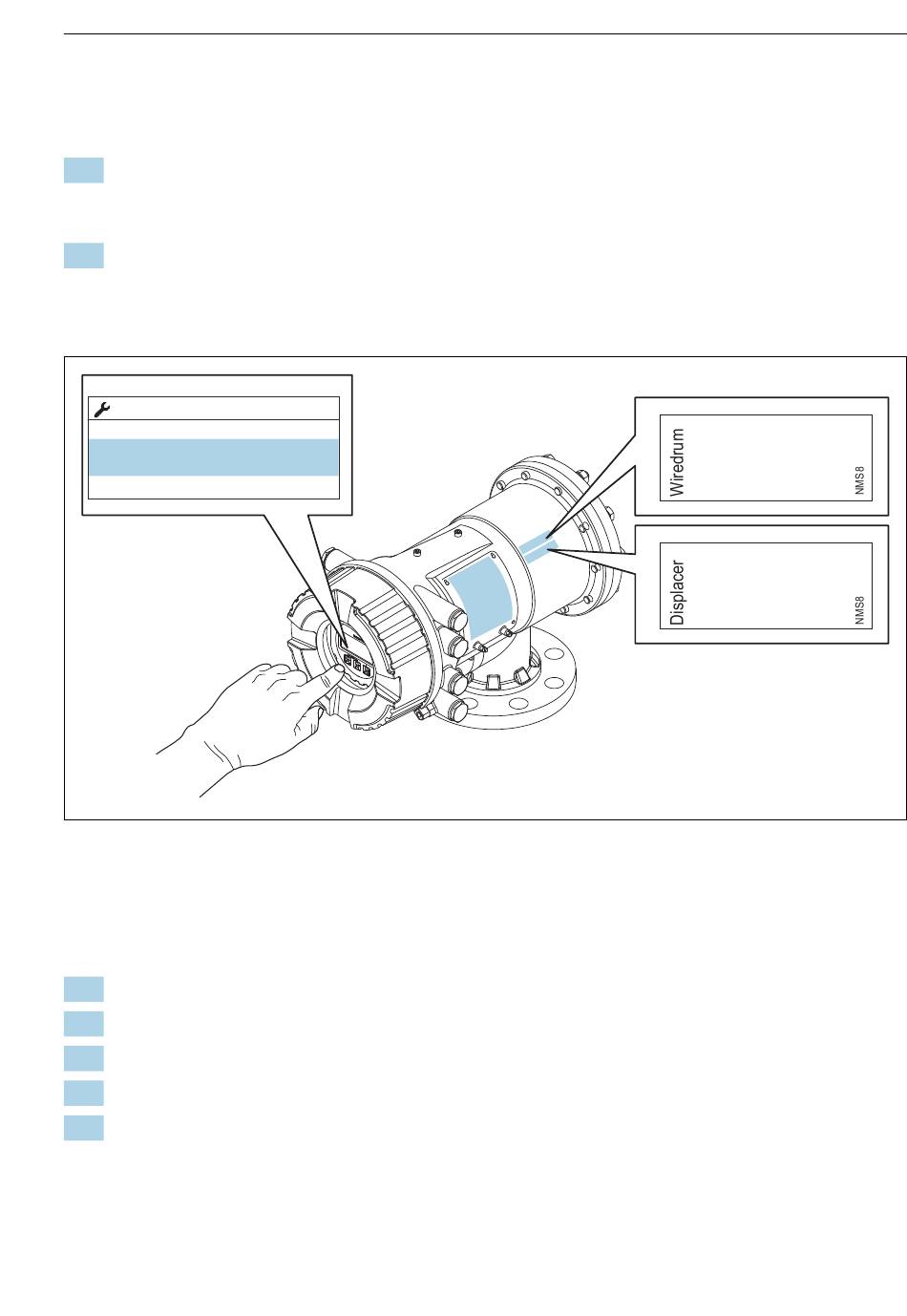

1. Check the displacer diameter, weight, volume, and balance volume for the Displacer
diameter parameter, the Displacer weight parameter, the Displacer volume
parameter, and the Displacer balance volume parameter.
2. Check the drum circumference and wire weight for the Drum circumference parameter
and Wire weight parameter.
This completes the data verification procedure.
/../Displacer
Displacer diamet
Displacer weight
Displacer volume
7.4.2 Move displacer
The move displacer operation is optional and can be used to change the current position of the
displacer in order to perform the calibration steps more easily.
1. Make sure that the wire drum stopper has been removed.
2. Navigate to: Setup → Calibration → Move displacer → Move distance
3. Input the relative moving distance for the Move distance parameter.
4. Select the Move down option or the Move up option
5. Select the Yes.
This completes move displacer commands procedure.
