Commissioning
7.5

Configuration of the inputs

7.5.1 Configuration of the HART inputs
1
E
2
1
CDI
i
1 3
F
2 4
HR
on
WP
POWER
SIM

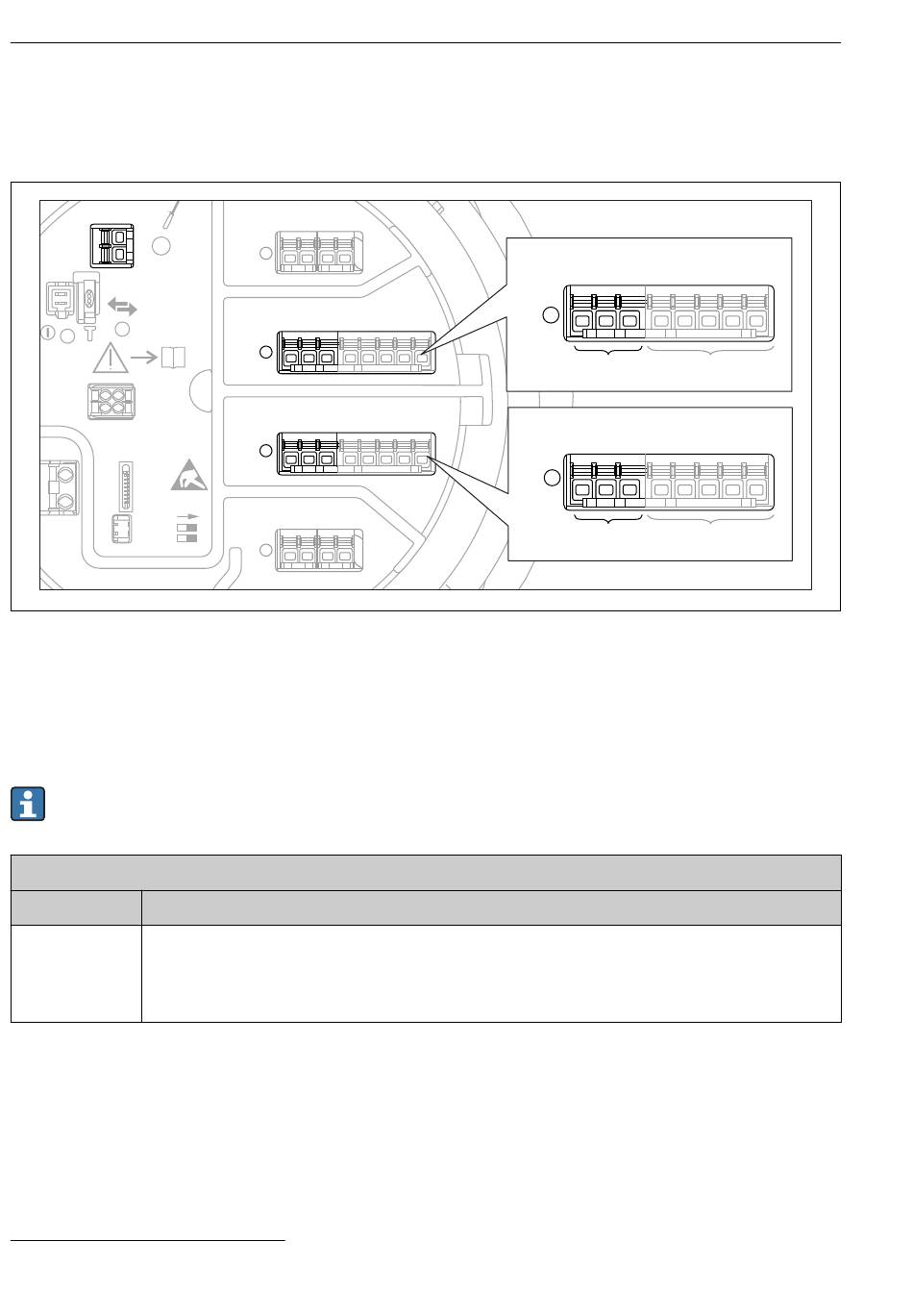

 23 Possible terminals for HART loops
B Analog I/O module in slot B (availability depending on device version)
C Analog I/O module in slot C (availability depending on device version)
E HART Ex is output (available in all device versions)
HART devices must be configured and given a unique HART address
interface before they are connected to the Proservo NMS8x.
Submenu: Setup → Advanced setup → Input/output → Analog I/O
Parameter Meaning / Action
Operating mode Select:
• HART master+4..20mA input if only one HART device is connected to this loop. In this case the
4-20mA signal can be used in addition to the HART signal.
• HART master if up to 6 HART devices are connected to this loop.
2) The current software does not support HART devices with adress 0 (zero).
48
D
1 2 3 4
C
1 2 3 4 5 6 7 8
B
1 2 3 4 5 6 7 8
A
1 2 3 4
C
1 2 3 4 5 6 7 8
C1-3 C4-8
B
1 2 3 4 5 6 7 8
B1-3 B4-8
2)
via their own user
Proservo NMS83
A0032955
