Electrical connection

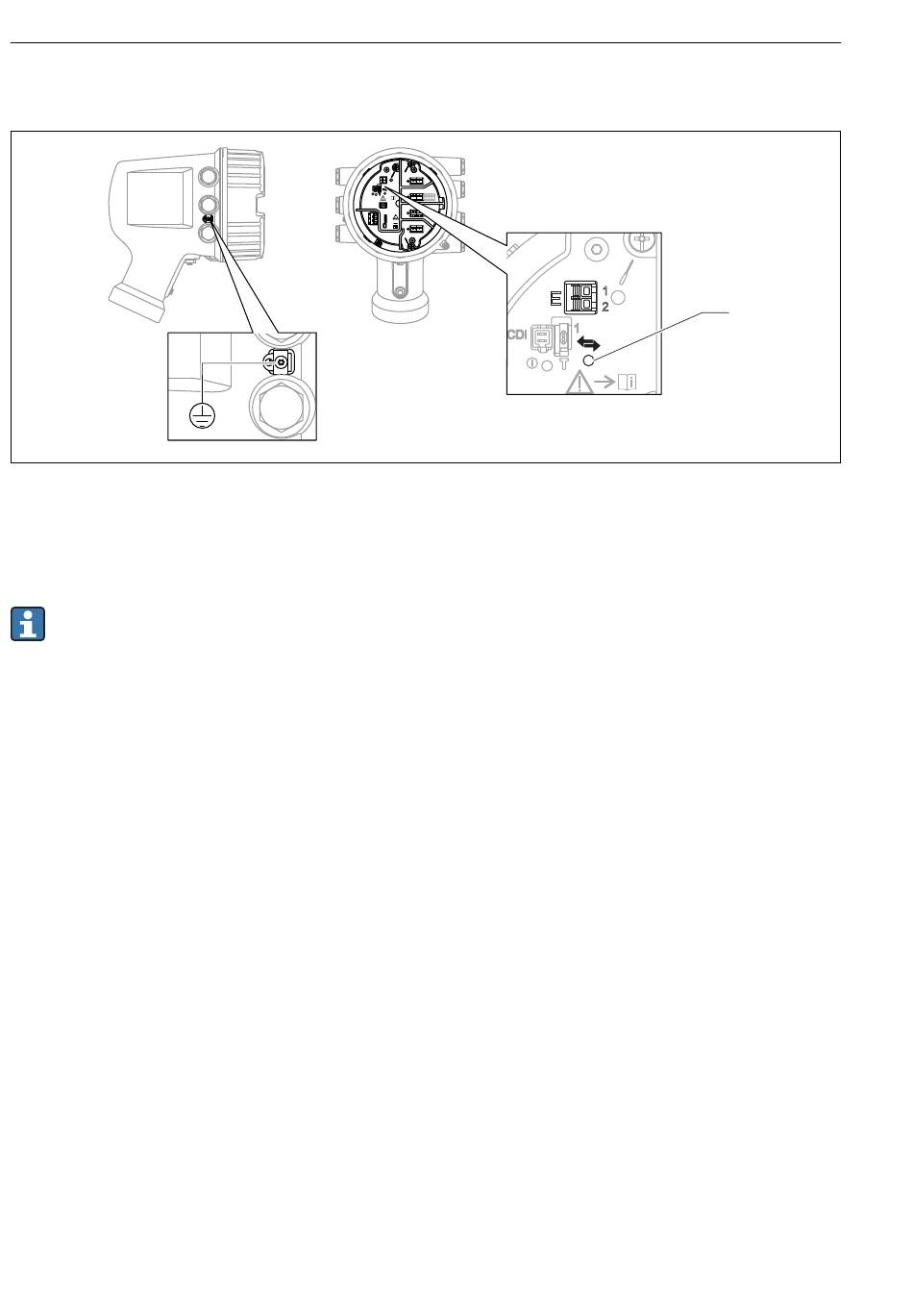

6.1.2 HART Ex i/IS interface
E1 H+
E2 H-
3 Orange LED: indicates data communication
This interface always operates as the main HART master for connected HART slave
transmitters. The Analog I/O modules, on the other hand, can be configured as a HART
master or slave →  26 →  29.
