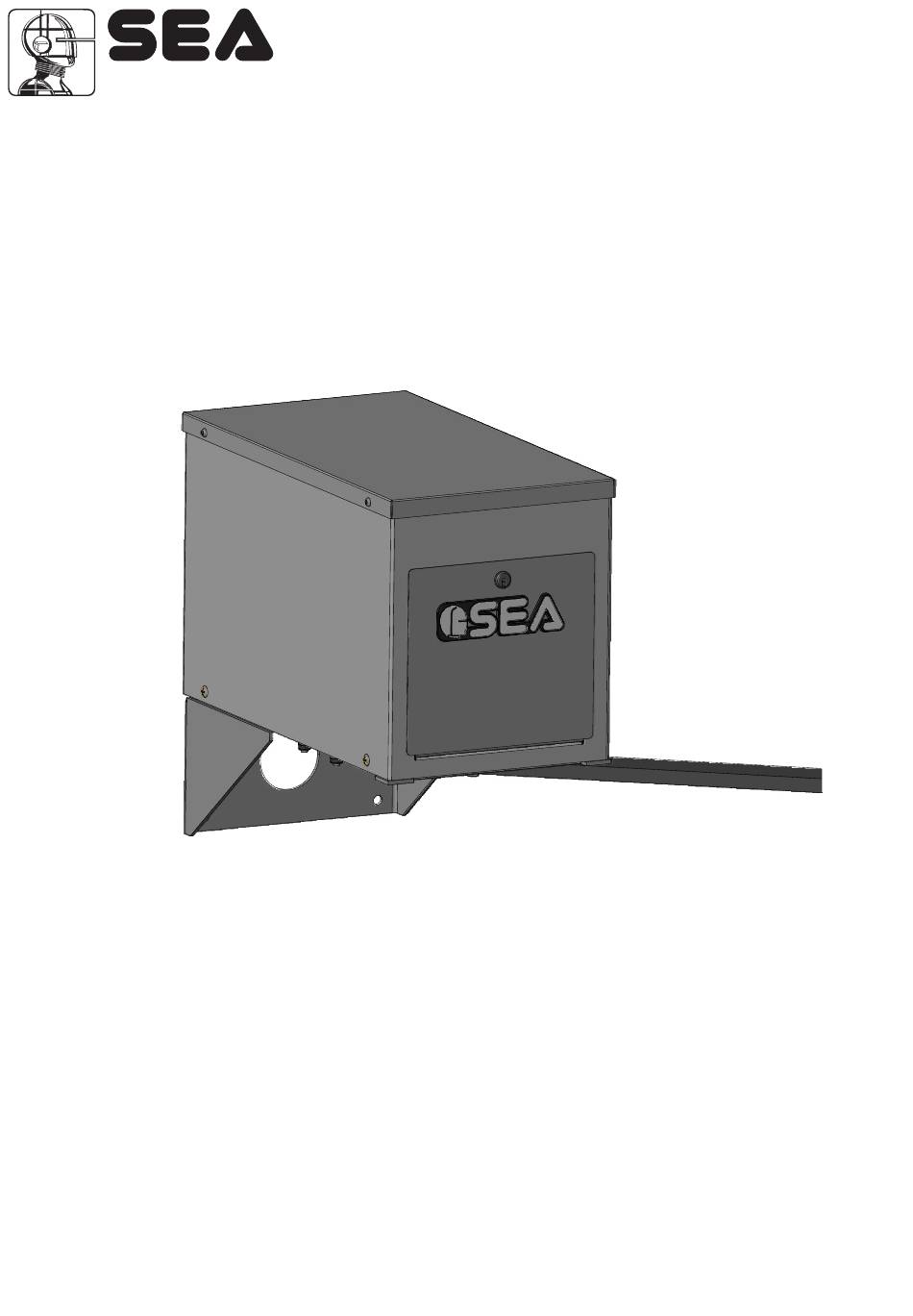

- Page 1 ® Sistemi Elettronici di Apertura Porte e Cancelli JOINT INSTALLATION MANUALS AND SAFETY INFORMATION SEA S.p.A. Zona industriale 64020 S.ATTO Teramo - (ITALY) Tel. +39 0861 588341 r.a. Fax +39 0861 588344 www.seateam.com seacom@seateam.com 67411932 REV.01 - 08/2016...
-
Page 2: Table Of Contents
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli TABLE OF CONTENTS PERIODICAL MAINTENANCE.........................3 FEATURES AND SPECIFICATIONS......................4 SAFETY OPERATING GATE........................5 CONFIGURATION AND SPECIFICATION....................6 CONCRETE PAD AND GATE ATTACHMENT..................7 STANDARD INSTALLATION........................8 GATE ARM INSTALLATION........................10 GATE MOVEMENT DIRECTION......................11 LEFT OPERATOR MOUNTING ......................12 RIGHT OPERATOR MOUNTING ......................13... -
Page 3: Periodical Maintenance
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli PERIODICAL MAINTENANCE 1) Check the oil level in the hydraulic/oil-bath operators (transparent cap placed in the Products) 2) Change the oil in case of low level 3) Check the release function... -
Page 4: Features And Specifications
Gate Speed: 8 - 12 seconds per 90° cycle Maximum Gate Length: 6 mm Maximum Gate Weight: 455 kg Maximum Cycles: 250 cycles per day with Sea's Plug- In Transformer. (Gate size 6 m x 2,4 m) AC Power Supply Wire: 14 gauge or greater landscape... -
Page 5: Safety Operating Gate
Apertura Porte e Cancelli MECHANICAL INSTALLATION 2. Safety operating gate The Joint 230V is for Single Home Applications DO NOT Use for Apartment or Condominium Applications. Fig.4 Owners Must Never Let Pedestrians Cross the Path, Step or Hang on a Moving Gate! Fig.5... -
Page 6: Configuration And Specification
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 3. Configuration and specification Warning Signs Attached on Both Sides of Gate 100 mm Max. Width Fig.6 Warning Sign Clearly Visible on Operator Gate Attachment Bar Must Go Completely... -
Page 7: Concrete Pad And Gate Attachment
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 4. Concrete pad and gate attachment Dimensions (mm) Anchor wedge Above Ground Below Ground Concrete Pad Fig.7 Fig.8 Example of Ground standard installation Hinge Center 50 mm Example of Colum standard installation... -
Page 8: Standard Installation
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 5. Standard installation Sample Standard Installation is Shown on Previous Page. Hinge Fig.9 Fig.10 Center 560 mm α 635 mm Long * MIN 76 mm x 90° Short Caution: If the gate is longer than 5,5 m, follow Chart A : A-2. - Page 9 ® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION Fig.11 min 610 mm...
-
Page 10: Gate Arm Installation
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 6. Gate arm installation Fig.12 Incorrect Installation Fig.13 Correct Installation... -
Page 11: Gate Movement Direction
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 7. Gate movement direction Open to left Fig.14 Open to right Fig.15... -
Page 12: Left Operator Mounting
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 8. Left operator mounting Fig.16... -
Page 13: Right Operator Mounting
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 9. Right operator mounting Fig.17... -
Page 14: Mounting Plate
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 10. Mounting plate 1 0 0 m m 2 0 0 Fig.18 76 mm Fig.19 11. Torque adjustment (By-Pass Valves) By-Pass Valves Grey Yellow Regulate the opening and closing forces of the gate respecting the force diagram. -
Page 15: Limit Switches
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 12. Limit switches Black = Limit switch White = Slowdown start Opening Closing Fig.21 13. Control unit support Fig.24 Fig.22 Fig.23... -
Page 16: Manual Release System
® JOINT Sistemi Elettronici di Apertura Porte e Cancelli MECHANICAL INSTALLATION 14. Manual release system Fig.25 Fig.26 Lock Unlock O p e n C l o s e... -
Page 17: General Notice For The Installer And The User
3. This product was designed and built strictly for the use indicated in this documentation. Any other use, not expressly indicated here, could compromise the good condition/operation of the product and/or be a source of danger. SEA S.p.A. declines all liability caused by improper use or different use in respect to the intended one. - Page 20 ® Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SEA S.p.A. Zona industriale 64020 S.ATTO Teramo - (ITALY) Tel. +39 0861 588341 r.a. Fax +39 0861 588344 www.seateam.com seacom@seateam.com...
