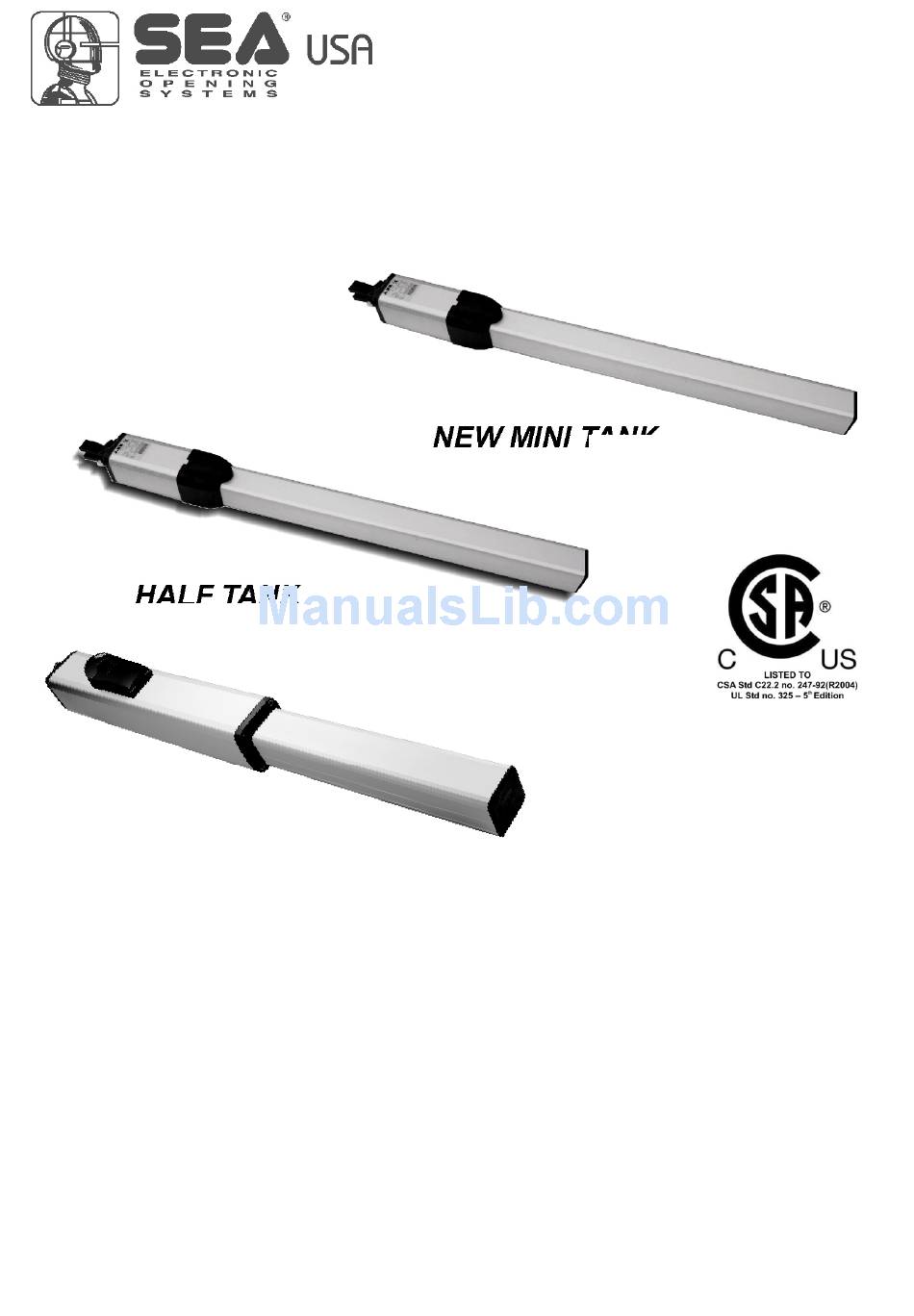

International registered trademark n. 2.777.971
LIBRA
NEW MINI TANK
HALF TANK
FULL TANK
INSTALLATION MANUALS
AND SAFETY INFORMATION
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172 USA
Phone:++1-305.594.1151 Fax: ++1-305.594.7325
Toll Free: 800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
67410246
REV 09 - 11/2014
Advertisement
Table of Contents
Related Manuals for SEA Libra Mini Tank
Summary of Contents for SEA Libra Mini Tank
- Page 1 International registered trademark n. 2.777.971 LIBRA NEW MINI TANK HALF TANK FULL TANK INSTALLATION MANUALS AND SAFETY INFORMATION SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
-
Page 2: Table Of Contents
LIBRA International registered trademark n. 2.777.971 TABLE OF CONTENTS A) SAFETY AND INSTALLATION INSTRUCTION..................3 GATE WARNINGS..........................5 PRECAUTIONS .............................5 B) MECHANICAL INSTALLATION FEATURES AND SPECIFICATIONS .....................6 DIMENSIONS ............................7 TYPICAL INSTALLATION ........................11 TYPE OF INSTALLATION........................11 PRELIMINARY OPERATIONS AND PARTS DIAGRAM ..............16 INSTALLATION AND POSITIONING BRACKETS ................17 INSTALLATION OF MECHANICAL AND ELECTRONIC STOPS............19 BRETHING SCREW ..........................19 TORQUE ADJUSTMENT (BY-PASS VALVE) ..................20... -
Page 3: A) Safety And Installation Instruction
LIBRA International registered trademark n. 2.777.971 Details General An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding. - Page 4 LIBRA International registered trademark n. 2.777.971 g) The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start. h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible. i) For gate operators utilizing a non-contact sensor: 1) See instructions on the placement of non-contact sensors for each Type of application, 2) Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is...
-
Page 5: Gate Warnings
(fig. 5). Important: For a higher security, SEA advices to install infrared photocells. Fig. 1 - Do not Install the front bracket in a weak part of the gate Fig. -
Page 6: B) Mechanical Installation

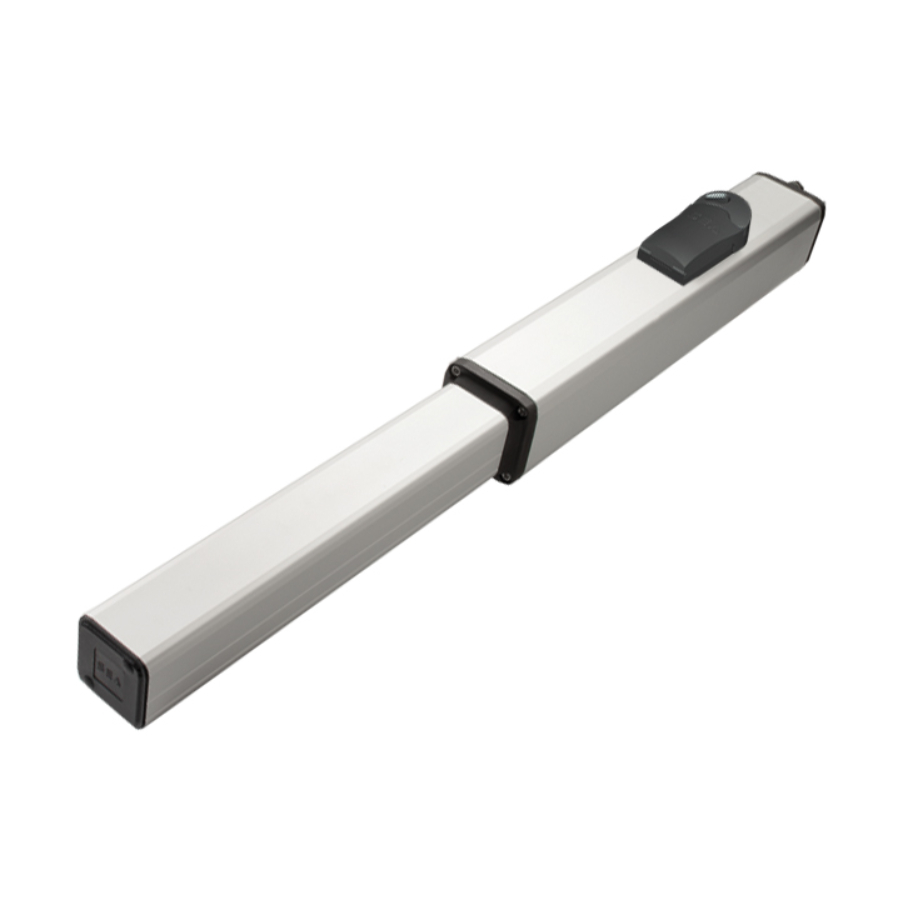

LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION FEATURES AND SPECIFICATIONS NEW MINI TANK is an high quality hydraulic operator for residential use with max. leaf length of 9,84 feet. Available in 2 models: SC with lock in closed position up to 5,9 feet and SB without lock up to 9,84 feet. For leaf length over 5,9 feet use electric lock on SC models. -
Page 7: Dimensions
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION DIMENSIONS In case you have a Half-Full Tank with Fig. 6 ’ ’ LIBRA NEW MINI TANK double brake, make sure that you use the whole run minus 0.19’’ in front and 0.19’’ in ’... - Page 8 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION FULL TANK Fig. 9 67410246 REV 09 - 11/2014...
- Page 9 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION HALF TANK Fig. 10 67410246 REV 09 - 11/2014...
- Page 10 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION NEW MINI TANK Fig. 11 67410246 REV 09 - 11/2014...
-
Page 11: Typical Installation
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION TYPICAL INSTALLATION Fig. 12 1) LIBRA operator 2) Mechanical stop 3) Electronic control unit 4) Flashing lamp 5) Photocell Dx 6) Differential switch 7) Photocell Sx 8) Start - stop push button with key 9) Antenna 10) Support for photocells with photocells... - Page 12 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION INWARD INSTALLATION outside Fig. 15 inside 67410246 REV 09 - 11/2014...
- Page 13 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION (Fig.15) MINI TANK & HALF TANK/ FULL TANK total stroke 10.63 inches - max suggested stroke 9,84 inches Max opening Max stroke Stroke for 90° inches inches inches Angle° (inches) (inches) 1.96 3.93 4.52 110°...
- Page 14 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION OUTWARD INSTALLATION outside inside Fig. 16 67410246 REV 09 - 11/2014...
- Page 15 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION MINI TANK & HALF TANK/ FULL TANK (Fig.16) total stroke 10.63 inches - max suggested stroke 9.84 inches Max opening Max stroke Stroke for 90° inches inches Angle° (inches) (inches) 5.90 3.54 95°...
-
Page 16: Preliminary Operations And Parts Diagram
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION Rear oscillating bracket installation PRELIMINARY -Open carefully the package, being sure not to loose parts. Parts are listed in fig. 9. -Attach the rear oscillating bracket as shown in fig. 17. -Attach the spheric joint as shown in fig. -
Page 17: Installation And Positioning Brackets
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION INSTALLATION OF THE REAR BRACKET TO THE POST. The bracket must be positioned so that the operator is perfectly leveled (Fig. 21). Adjustable rear bracket (with screws) on demand 2.16” Fig. 20 Fig. - Page 18 LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION WELDING OF THE FRONT BRACKET TO THE GATE. The bracket must be positioned so that the operator is perfectly leveled. P.N. If the brackets are installed before the operator, place the front bracket ½ inch lower than the rear bracket (Fig.
-
Page 19: Installation Of Mechanical And Electronic Stops
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION INSTALLATION OF THE MECHANICAL LIMIT SWITCH STOPS (Accessories on request) - Release the unit (as in Fig. 45 to 49) - Let the rod come out about 3/4 of its run - Put the limit switch stops on the front flange of the unit with the two rods (of the three which are present on the stop) which are in parallel to the gate (Fig. -
Page 20: Torque Adjustment (By-Pass Valve)
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION TORQUE ADJUSTMENT (By-Pass Valve) In case of first installation both, the cover of the release and the cover of the by pass valves must not yet be inserted. In this case refer to fig. -
Page 21: Release Mounting
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION PLASTIC RELEASE MOUNTING (HALF TANK - MINI TANK) ATTENTION: the mounting of the plastic release must be effectuated as shown in fig. 35 only and exsclusively after by-pass cover havingfinished all the instalaltion operations, mounting of the rod cover and calibration of the by- pass valves. -
Page 22: Installation On Masonry Pillars, Making A Niche
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION RELEASE MOUNTING (FULL TANK) Fig. 41 Fig. 40 Remove the transporting plate as shown in Fig. 40. Mount the release as shown in Fig. 41. INSTALLATION ON MASONRY PILLARS, MAKING A NICHE 7,08’’... -
Page 23: Hydraulic Slow-Down Adjustment (Only Full Tank Standard)
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION HYDRAULIC SLOW-DOWN ADJUSTMENT (ONLY LIBRA FULL TANK STANDARD) The hydraulic slow-down will take effect in the last 10 - 15 degrees of the Screw for brake closing process. Regulation Slow Down Adjustment: (Only version Ful Tank with adjustable brake) Take out manual release as in Fig. -
Page 24: Oil Level Measurement
LIBRA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION OIL LEVEL MEASUREMENT (HALF TANK - NEW MINI TANK) 2.16” Insertion into 3.34” the motor (in.) 3.34” Fig. 46 OIL LEVEL MEASUREMENT (FULL TANK) Oil level Fig. 47 67410246 REV 09 - 11/2014... -
Page 25: Periodical Maintenance
11) Check the tight of the hardware of the gate 12) Check the operating of all accessories. Especially the functioning of all safety devices and Safety Gate (if installed). 13) Lubricate the shaft with SEA grease (GREASE GL 00 65000009) All the above described operations MUST be made exclusively by an authorized installer. -
Page 26: Manual Release System
Turn the key anti-clockwise to tighten the lid, remove the key and close the lock cover. Fig. 51 Fig. 52 SEA recommend to the end user to release the operator only in case of power failure. Always contact the professional installer in case of not correct working of the operators. 67410246... - Page 27 LIBRA International registered trademark n. 2.777.971 To the attention of users and technicians RELEASE SYSTEM OF THE HALF TANK - NEW MINI TANK To release operate as follows: -Insert the key and turn it about 180° anti-clockwise (Fig.53). To relock the operator do as follows: -Insert the key and turn it clockwise until it stops (Fig.53).
-
Page 28: C) Sales Conditions And Warranty
SEA. Recognized defects, whatever their nature, will not produce any responsibility and/or damage claims to SEA USA Inc and SEA s.r.l. Warranty shall not cover any required labor activities. Warranty will in no case be recognized if alterations and any other changes will be found on products. Warranty will not cover damages caused by carriers, expendable materials and faults due to improper use with the products specifications. - Page 32 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
