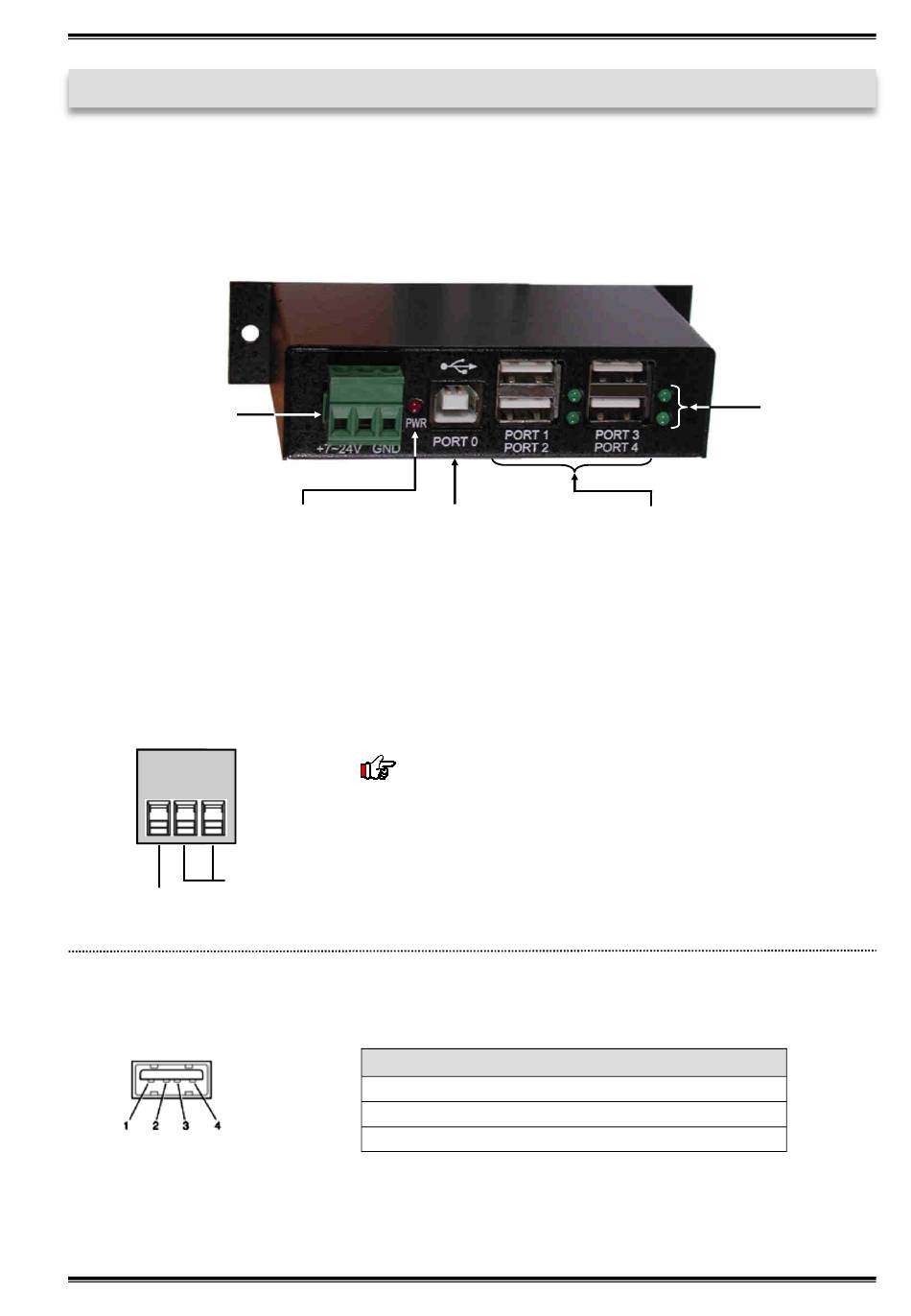

3. Layout, Connections & Jumper Settings

3.1 Layout

7-24V T-Block
for optional external
Power Supply

3.2 Connections

+7V - 24V T-Block:
GND (Ground) GND (Ground)
+7V - 24V +7V - 24V
USB 2.0 A-Port:
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
Power LED 1x USB 2.0
Upstream B-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
USB 2.0 A-Port
Pin
1
2
4x USB 2.0
Downstream A-Port
Signal Pin
VCC 3
DATA- 4
9
English
Status LED
for each Port
Signal
DATA+
GND
