3. Layout, Connections & Jumper Settings

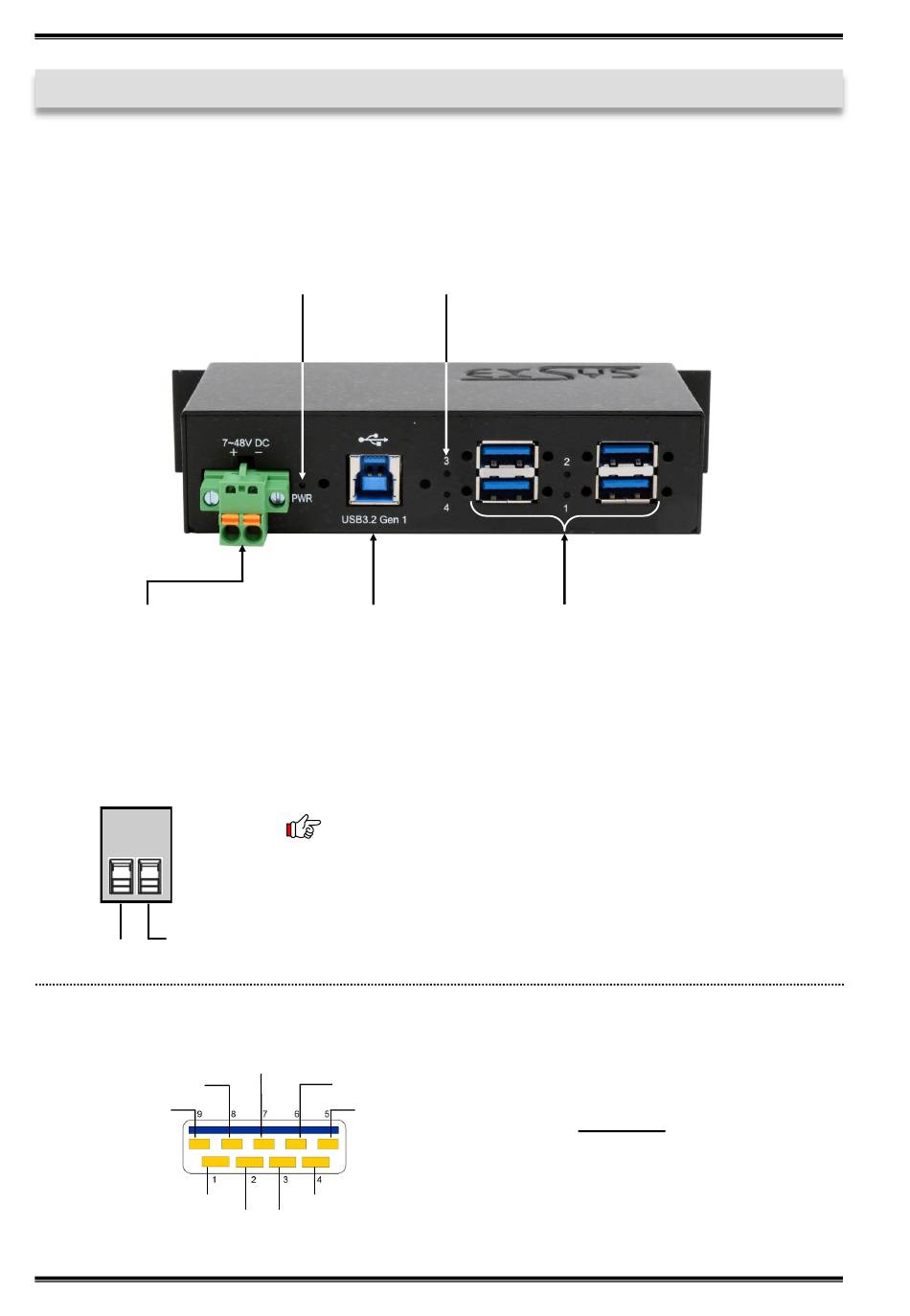

3.1 Layout

Front Side:
7-48V T-Block for
optional Power Supply

3.2 Connections

+7V to +48V T-Block:
GND (Ground)
+7V - 48V
USB 3.2 Gen 1 A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
Status LED for
Power LED
1x USB 3.2 Gen 1
Upstream B-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
each Port
4x USB 3.2 Gen 1
Downstream A-Port
Attention!
Never plug in with force
or in wrong direction.
10
