Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de

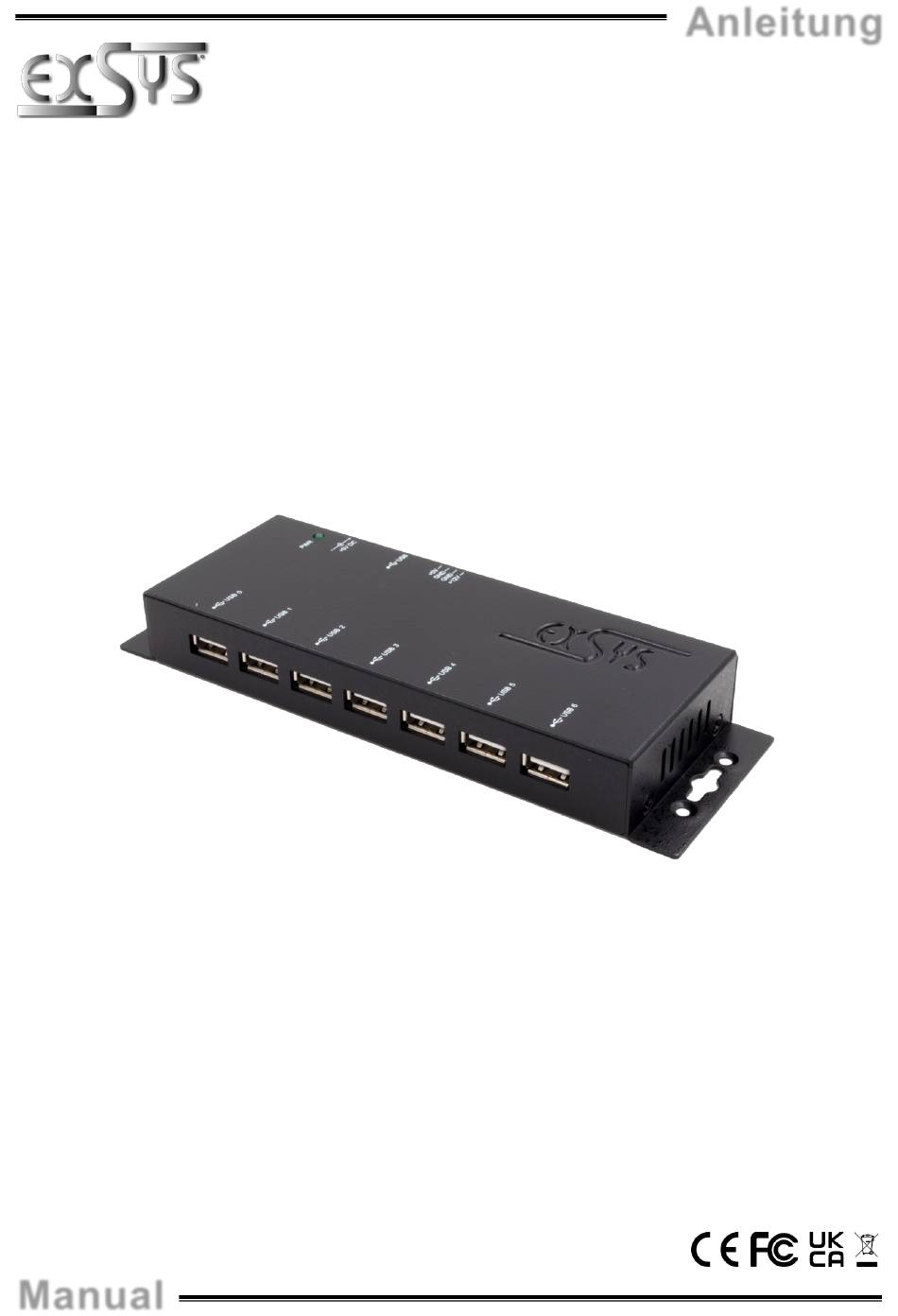

Manual
EX-1177-2
7-Port USB 2.0 Metall HUB
7 Port USB 2.0 Metal HUB
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Anleitung
Vers. 1.2 / 26.09.24
Italia:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Exsys EX-1177-2
Summary of Contents for Exsys EX-1177-2
- Page 1 Anleitung Vers. 1.2 / 26.09.24 EX-1177-2 7-Port USB 2.0 Metall HUB 7 Port USB 2.0 Metal HUB Deutschland: Schweiz: Italia: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH EXSYS Italia Srl Industriestraße 8 Dübendorfstrasse 17 Via Belvedere, 45/B 61449 Steinbach 8602 Wangen I-22100 Como www.exsys.de...
-
Page 2: Table Of Contents
Layout & Connections ··················································································· 11-12 Layout ·······················································································································11 Connections ·········································································································· 11-12 Jumper Settings ··········································································································12 Hardware Installation ························································································· 13 Driver Installation ······························································································ 13 Cleaning·········································································································· 13 Technical Information························································································· 14 Technical Drawing ····························································································· 14 © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1177-2 ist das Original aller 7 Ports Metall-Hubs. Er erweitert einen USB 2.0 Port des Desktop Rechners oder Notebooks auf sieben weitere USB 2.0 Ports und unterstützt alle USB Anschlüsse von 1.1 bis zu 3.2. Durch das im Lieferumfang enthaltene 5V/4A Netzteil werden an jedem Port garantiert 500mA zur Verfügung gestellt. -
Page 4: Aufbau & Anschlüsse
4 Pin Floppy Anschluss: 1 +5V Bitte auf die richtige Polarität achten! Der 12V Pin ist nicht belegt! 2 GND Achtung! Stecker nie bei eingeschaltetem PC ein oder ausstecken! 3 GND 4 +12V © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
DATA- 3.3 Jumper Einstellungen Der EX-1177-2 wird mit der Einstellung Bus-Power ausgeliefert, d.h. er kann sowohl mit, als auch ohne Netzteil benutzt werden. Mit dem internen Jumper JP1 (BUS PWR) besteht die Möglichkeit die USB B-Buchse stromlos zu machen, sodass er nur mit angeschlossenem Netzteil betrieben werden kann. -
Page 6: Hardware Installation
4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PCs gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der EX-1177-2 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Verbinden Sie das mitgelieferte USB Kabel mit der USB B-Buchse des Hubs. -
Page 7: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +5 Volt Abmessung: 153.10 x 59.40 x 22.90 mm Gewicht: 500 g 9. Technische Zeichnung © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description
EX-1177-2 1. Description The The EX-1177-2 is the origin of all 7-port metal hubs. It expands one USB 2.0 port of a desktop or notebook computer into seven additional USB 2.0 ports and supports all USB connections from 1.1 to 3.2. The included 5V/4A power supply provides 500mA at each port. The EX-1177-2 guarantees secure data transfer at speeds of up to 480Mbps. -
Page 9: Layout & Connections
Please pay attention to the correct polarity! The 12V Pin isn‘t used! 2 GND Never connect or release the plug while the PC power is on! 3 GND 4 +12V © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Jumper Settings
3.3 Jumper Settings The EX-1177-2 is shipped with the bus power setting, i.e. it can be used with or without a power supply. The internal jumper JP1 (BUS PWR) can be used to disable the power source on the USB B connector so that it can only be used with a power supply connected. -
Page 11: Hardware Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
Operating Temperature: 32°F to 131°Fahrenheit Storage Temperature: -4°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +5 Volt Size: 153.10 x 59.40 x 22.90 mm Weight: 500g 9. Technical Drawing © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
