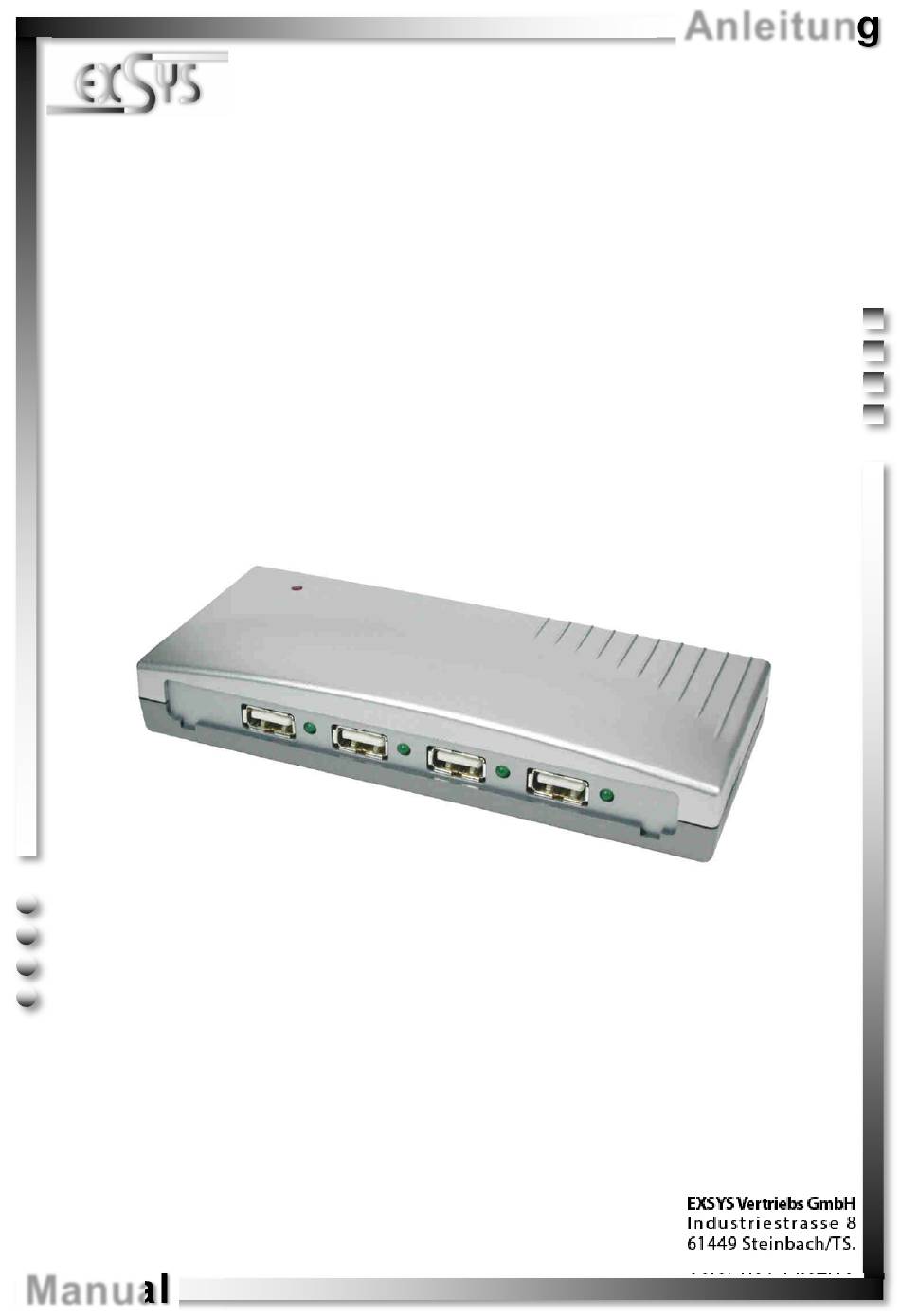

- Page 1 Anleitung EX-1163 4 Port USB 2.0 Plastik HUB 4 Port USB 2.0 Plastic HUB Vers. 1.0 / 14.02.18 Manual...
-
Page 2: Table Of Contents
Layout & Connections ······································································· 9-10 3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 Hardware Installation ··········································································· 10 Driver Installation ················································································ 11 Cleaning ··························································································· 11 Technical Information ·········································································· 12 Technical Drawing ·············································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1163 ist ein USB 2.0 Plastik HUB für bis zu 4 Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Durch die Stromversorgung über die 5V Buchse, wer- den an jedem Port die vollen 500mA zur Verfügung gestellt. -
Page 4: Aufbau & Anschlüsse
Upstream B-Buchse im Lieferumfang enthaltenem Netzteil Betriebs LED 4x USB 2.0 Status LED Downstream A-Buchse für jeden Port 3.2 Anschlüsse 5V Buchse: ACHTUNG!!! Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Hardware Installation
5V Buchse des Hub´s und stecken Sie den Netzstecker des Netzteils in eine Steckdose. 3. Verbinden Sie nun das andere Ende (A-Stecker) des mitgelieferten USB Kabels mit der A-Buchse an Ihrem PC. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Treiber Installation
Deutsch EX-1163 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1163 automatisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgen- de Einträge sehen: Sind diese oder ähnliche Einträge vorhanden, ist der USB Hub richtig installiert. -
Page 7: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +5 Volt Abmessung: 150 x 70 x 30 mm Gewicht: 420g 8. Technische Zeichnung Demnächst verfügbar! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description

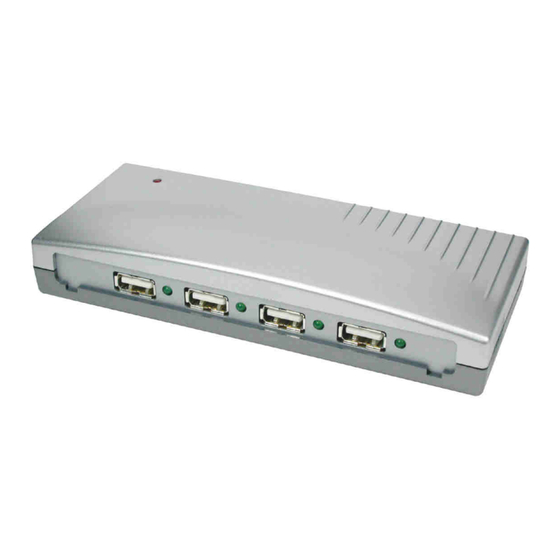

EX-1163 1. Description The EX-1163 is a plug & play high-speed USB 2.0 plastic hub for 4 USB devices. The EX-1163 provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. The power over the 5V connector provides a maximum of power on each USB port of 500mA. -
Page 9: Layout & Connections
Power Supply Power LED 4x USB 2.0 Status LED Downstream A-Port for each Port 3.2 Connections 5V Connector: ATTENTION!!! Use only with Power Supply which is included in delivery! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Hardware Installation
2. Connect the included power supply to the 5V connector at the Hub. 3. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Driver Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +5 Volt Size: 150 x 70 x 30 mm Weight: 420g 8. Technical Drawing Soon available! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
