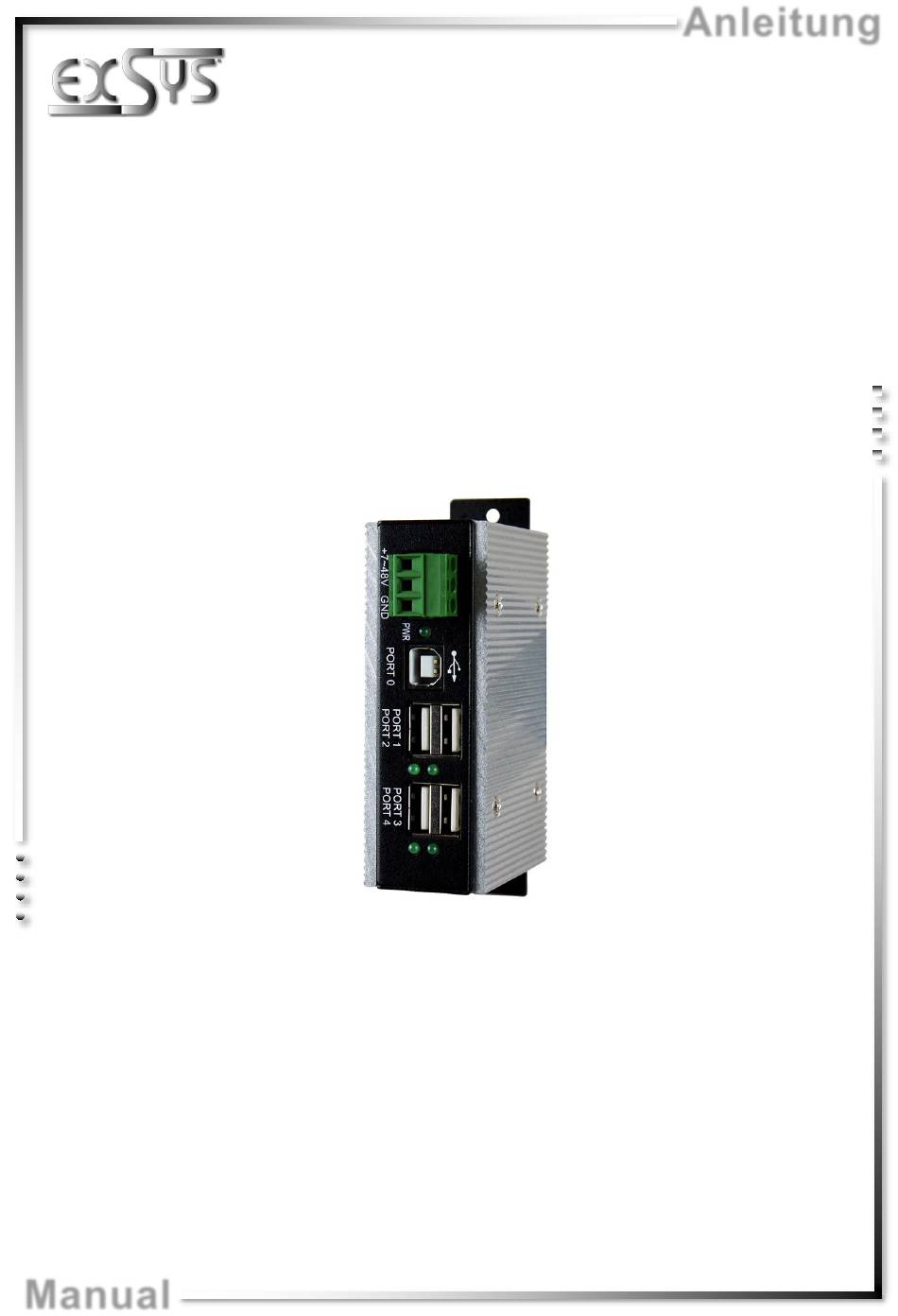

EX-1163HMS-WT
Manual
Manual
4 Port USB 2.0 Metall HUB (DIN-Rail)
mit 15KV ESD Überspannungsschutz
und erweitertem Temperaturbereich
4 Port USB 2.0 Metal HUB (DIN-Rail)
with 15KV ESD Surge Protection
and extended Temperature Range
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Anleitung
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Vers. 1.1 / 08.02.24
Advertisement
Related Manuals for Exsys EX-1163HMS-WT
Summary of Contents for Exsys EX-1163HMS-WT
- Page 1 15KV ESD Überspannungsschutz und erweitertem Temperaturbereich 4 Port USB 2.0 Metal HUB (DIN-Rail) with 15KV ESD Surge Protection and extended Temperature Range Deutschland: Schweiz: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH Industriestraße 8 Dübendorfstrasse 17 61449 Steinbach 8602 Wangen www.exsys.de www.exsys.ch...
- Page 2 Layout & Connections ····················································································· 9-10 Layout ························································································································ 9 Connections ············································································································ 9-10 Jumper Settings ·········································································································· 10 Hardware Installation ························································································· 11 Driver Installation ······························································································· 11 Cleaning ········································································································· 11 Technical Information ························································································· 12 Technical Drawing ····························································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 3 Deutsch 1. Beschreibung Der EX-1163HMS-WT ist ein USB 2.0 HUB für bis zu 4 Endgeräte. Er ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet und unterstützt alle USB Standards von 1.1 bis 3.2. Durch die Stromversorgung über den Terminal Block stehen an jedem Port die vollen 500mA zur Verfügung.
- Page 4 +7V - 48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 48V USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 5 DATA- 3.3 Jumper Einstellungen Der EX-1163HMS-WT wird mit der Einstellung Self-Power ausgeliefert, d.h. er funktioniert nur, wenn eine Spannung am Terminal Block anliegt. Mit dem internen Jumper JP1 besteht die Möglichkeit den Hub über den USB-Bus zu betreiben (Bus-Power). Dafür öffnen Sie das Gehäuse mit den zwei seitlichen Schrauben.
- Page 6 4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PCs gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der EX-1163HMS-WT geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Verbinden Sie das mitgelieferte USB Kabel mit der USB B-Buchse des Hub´s.
- Page 7 -40° bis 85° Celsius Lagertemperatur: -40° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +48 Volt Abmessung: 114.50 x 73.00 x 26.30 mm Gewicht: 400 g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 8 1. Description The EX-1163HMS-WT is a USB 2.0 HUB for up to 4 end devices. It is equipped with 4 ports for end devices and 1 port for connection to the PC and supports all USB standards from 1.1 to 3.2.
- Page 9 +7V - 48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) GND (Ground) +7V - 48V USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 10 DATA- 3.3 Jumper Einstellungen The EX-1163HMS-WT is supplied with self-power setting, i.e. it only works when a voltage is applied to the terminal block. With the internal jumper JP1, it is possible to operate the hub via the USB bus (bus power). To do this, open the housing using the two screws on the side. Now the jumper JP1 can be set from T (terminal block) to U (USB).
- Page 11 For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 12 -40°F to 185°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +48 Volt Size: 114.50 x 73.00 x 26.30 mm Weight: 400g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
