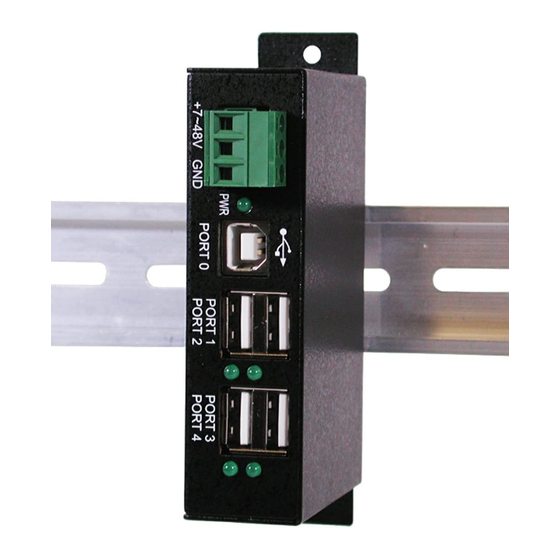

- Page 1 Anleitung EX-1163HMS-WT 4 Port USB 2.0 Metall HUB (DIN-Rail) mit 15KV ESD Überspannungsschutz und erweitertem Temperaturbereich 4 Port USB 2.0 Metal HUB (DIN-Rail) with 15KV ESD Surge Protection and extended Temperature Range Vers. 1.0 / 14.02.18 Manual...
-
Page 2: Table Of Contents
Layout & Connections ······································································· 9-10 3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 Hardware Installation ··········································································· 10 Driver Installation ················································································ 10 Cleaning ··························································································· 11 Technical Information ·········································································· 11 Technical Drawing ·············································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Die EX-1163HMS-WT ist ein USB 2.0 HUB für bis zu 4 Endgeräte. Er ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Durch die Stromversorgung über den Terminal Block, werden an jedem Port die vollen 500mA zur Verfügung gestellt. -
Page 4: Aufbau & Anschlüsse
+7V - 48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 48V USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Hardware Installation
Block des Hub´s und stecken Sie den Netzstecker des Netzteils in eine Steckdose. 3. Verbinden Sie nun das andere Ende (A-Stecker) des mitgelieferten USB Kabels mit der A-Buchse an Ihrem PC. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Treiber Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Technische Daten
-40° bis 85° Celsius Lagertemperatur: -40° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +48 Volt Abmessung: 114,50 x 73,00 x 26,30 mm Gewicht: 400g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description
EX-1163HMS-WT 1. Description The EX-1163HMS-WT is a plug & play high-speed USB 2.0 metal hub for 4 USB devic- es. The EX-1163HMS-WT provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. The power over the terminal block pro- vides a maximum of power on each USB port of 500mA. -
Page 9: Layout & Connections
+7V - 48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) GND (Ground) +7V - 48V USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Hardware Installation
CHECK INSTALLED DRIVER Open the >Device manager<. Now you should see at „USB-Controller“ the following new entry's: If you see this or a similar information the device is installed correctly. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Cleaning
All Operating Systems Operating Temperature: -40°F to 185°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +48 Volt Size: 114,50 x 73,00 x 26,30 mm Weight: 400g © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Drawing
English EX-1163HMS-WT 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
