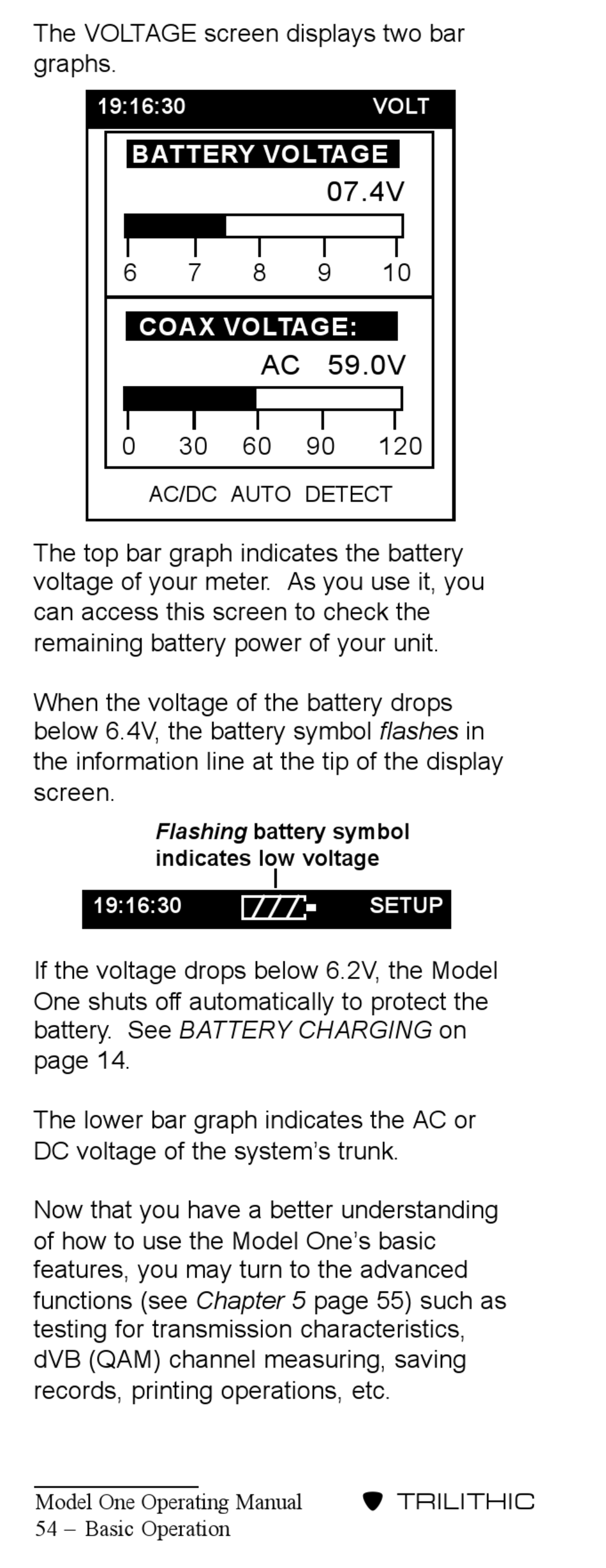

The VOLTAGE screen displays two bar
graphs.
19:16:30
BATTERY VOLTAGE
6
COAX VOLTAGE:
0
The top bar graph indicates the battery
voltage of your meter. As you use it, you
can access this screen to check the
remaining battery power of your unit.
When the voltage of the battery drops
below 6.4V, the battery symbol flashes in
the information line at the tip of the display
screen.
19:16:30
If the voltage drops below 6.2V, the Model
One shuts off automatically to protect the
battery. See BATTERY CHARGING on
page 14.
The lower bar graph indicates the AC or
DC voltage of the system's trunk.
Now that you have a better understanding
of how to use the Model One's basic
features, you may turn to the advanced
functions (see Chapter 5 page 55) such as
testing for transmission characteristics,
dVB (QAM) channel measuring, saving
records, printing operations, etc.
Model One Operating Manual ""! TRILITHIC
54 – Basic Operation
7 8
30 60
AC/DC AUTO DETECT
Flashing battery symbol
indicates low voltage
07.4V
9
AC 59.0V
90
VOLT
10
120
SETUP
