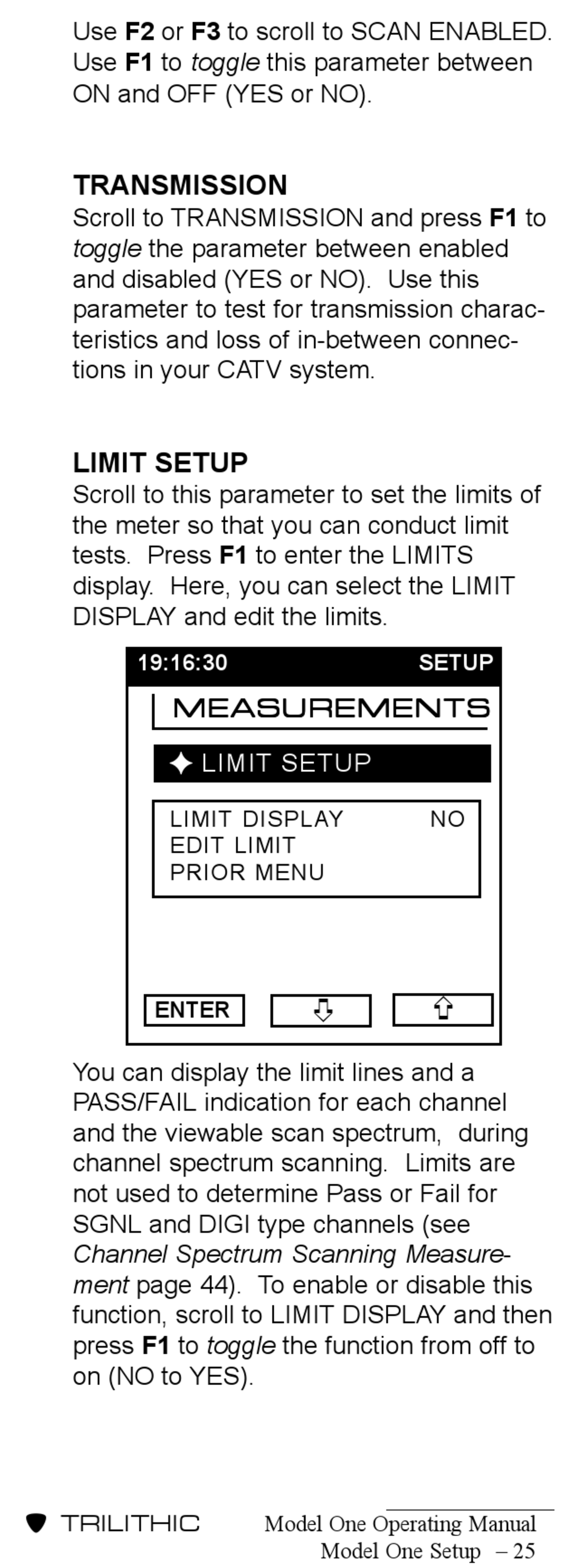

Use F2 or F3 to scroll to SCAN ENABLED.
Use F1 to toggle this parameter between
ON and OFF (YES or NO).

TRANSMISSION

Scroll to TRANSMISSION and press F1 to
toggle the parameter between enabled
and disabled (YES or NO). Use this
parameter to test for transmission charac-
teristics and loss of in-between connec-
tions in your CATV system.
LIMIT SETUP
Scroll to this parameter to set the limits of
the meter so that you can conduct limit
tests. Press F1 to enter the LIMITS
display. Here, you can select the LIMIT
DISPLAY and edit the limits.
You can display the limit lines and a
PASS/FAIL indication for each channel
and the viewable scan spectrum, during
channel spectrum scanning. Limits are
not used to determine Pass or Fail for
SGNL and DIGI type channels (see
Channel Spectrum Scanning Measure-
ment page 44). To enable or disable this
function, scroll to LIMIT DISPLAY and then
press F1 to toggle the function from off to
on (NO to YES).
! TRILITHIC
19:16:30
MEASUREMENTS MEASUREMENTS
MEASUREMENTS MEASUREMENTS MEASUREMENTS
# LIMIT SETUP
LIMIT DISPLAY
EDIT LIMIT
PRIOR MENU
ENTER
Model One Operating Manual
Model One Setup
SETUP
NO
– 25
