Enter the desired level for the parameter.
Press F1 to save the parameter and move
to the next limit.
NOTE: If you press F2 or F3 to scroll
BEFORE you press F1, you will
remain on the limit you just edited
and the UP/DOWN key will delete the
entry instead of moving to the next
limit.
Once you have set the levels for each
parameter, scroll to SAVE AND EXIT and
press F1. The Model One returns to the
LIMIT SETUP screen.
Once the limits are set, scroll to PRIOR
MENU and press F1 to return to the
MEASUREMENTS setup screen.

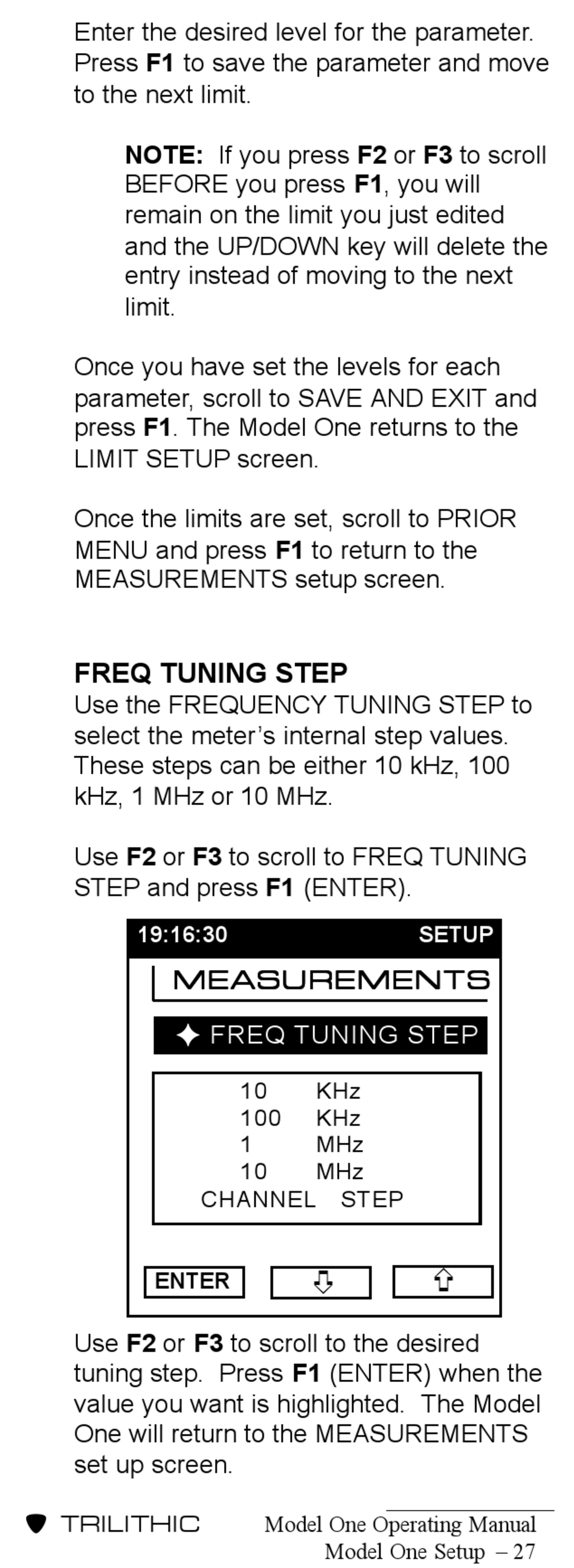

FREQ TUNING STEP

Use the FREQUENCY TUNING STEP to
select the meter's internal step values.
These steps can be either 10 kHz, 100
kHz, 1 MHz or 10 MHz.
Use F2 or F3 to scroll to FREQ TUNING
STEP and press F1 (ENTER).
Use F2 or F3 to scroll to the desired
tuning step. Press F1 (ENTER) when the
value you want is highlighted. The Model
One will return to the MEASUREMENTS
set up screen.
! TRILITHIC
19:16:30
MEASUREMENTS MEASUREMENTS MEASUREMENTS
MEASUREMENTS MEASUREMENTS
$# FREQ TUNING STEP
10
100
1
10
CHANNEL
ENTER
KHz
KHz
MHz
MHz
STEP
Model One Operating Manual
Model One Setup
SETUP
– 27
