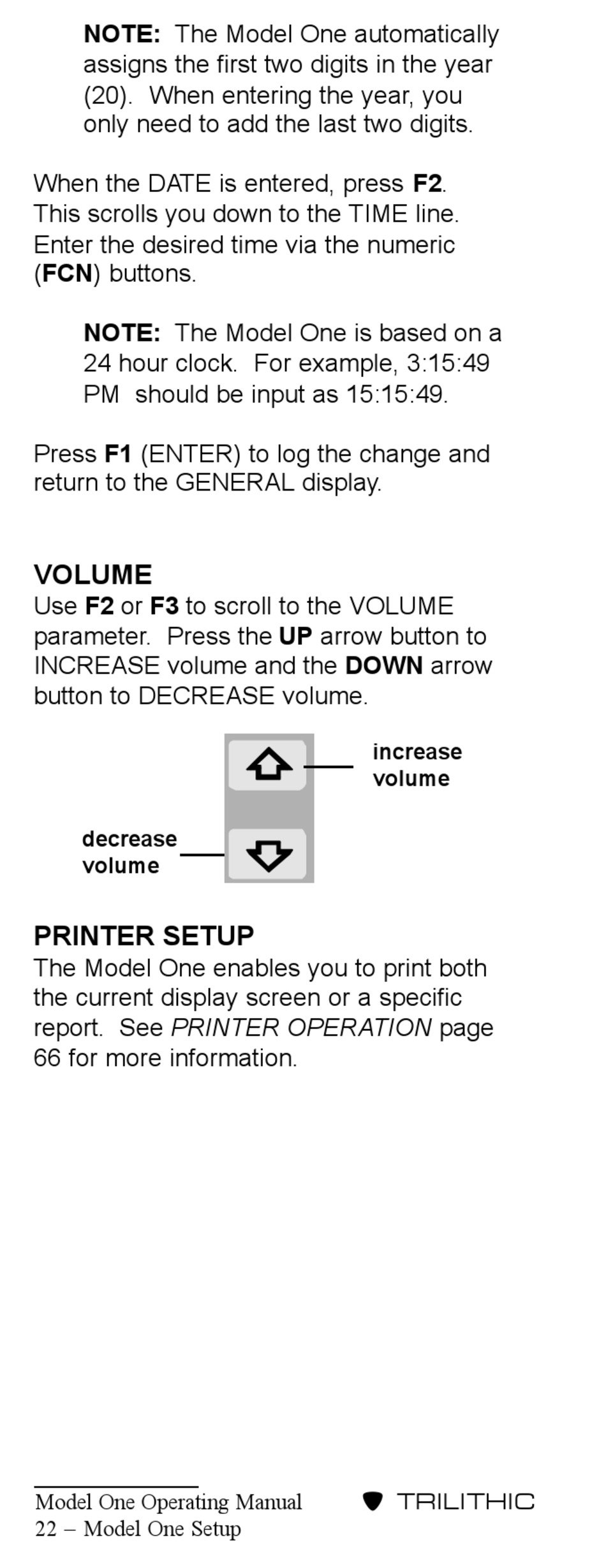

Volume - Trilithic Model One Operation Manual

NOTE: The Model One automatically
assigns the first two digits in the year
(20). When entering the year, you
only need to add the last two digits.
When the DATE is entered, press F2.
This scrolls you down to the TIME line.
Enter the desired time via the numeric
(FCN) buttons.
NOTE: The Model One is based on a
24 hour clock. For example, 3:15:49
PM should be input as 15:15:49.
Press F1 (ENTER) to log the change and
return to the GENERAL display.

VOLUME

Use F2 or F3 to scroll to the VOLUME
parameter. Press the UP arrow button to
INCREASE volume and the DOWN arrow
button to DECREASE volume.
decrease
volume
PRINTER SETUP
The Model One enables you to print both
the current display screen or a specific
report. See PRINTER OPERATION page
66 for more information.
Model One Operating Manual ""! TRILITHIC
22 – Model One Setup
increase
volume
