Display Screen Description - Trilithic Model One Operation Manual

NOTE: The Model One does not
support a "wrap around" feature. If
you are at the bottom of a menu list
and wish to go to the top, you will
need to press the UP arrow
indicator rather than continue
pressing the DOWN arrow.
Within several displays, you will want to
enter numeric values. Press the FCN
button to put the key pad in it's secondary
function mode and then press the number
buttons to enter the desired value. For
example, to enter the number 12:
Press
Then press the "soft" button for ENTER
(i.e F1) to record the value into the Model
One.
If you make an error, you can press F2 to
cancel the number and then reenter it.
Press F3 to quit or exit the operation.

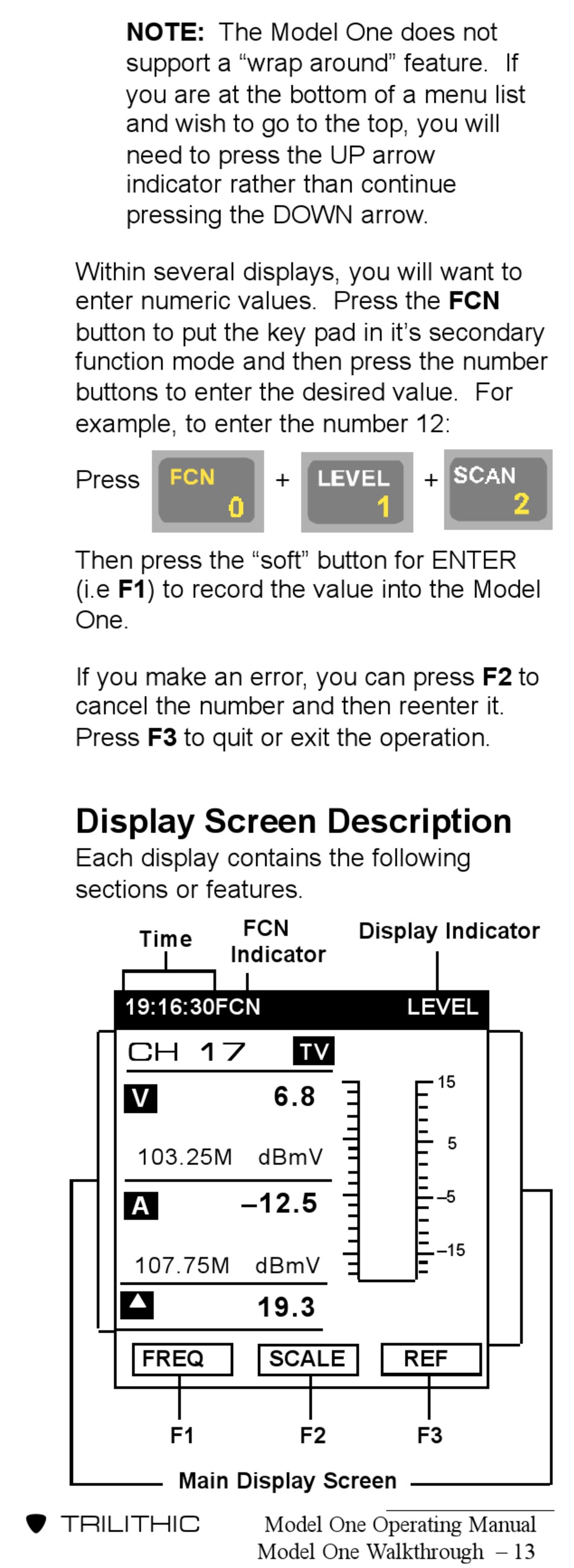

Display Screen Description

Each display contains the following
sections or features.
19:16:30FCN
CH 17 CH 17
CH 17
CH 17 CH 17
V
A
" " " " "
! TRILITHIC
Time
Indicator
103.25M
–12.5
107.75M
FREQ
F1
Main Display Screen
+
FCN
TV
6.8
dBmV
dBmV
19.3
SCALE
F2
