- Page 1 TR-2 OPERATION MANUAL...
- Page 2 Trilithic Company Profile Trilithic is a privately held manufacturer founded in 1986 as an engineering and assembly company that built and designed customer-directed products for telecommunications, military and industrial customers. From its modest beginnings as a two- man engineering team, Trilithic grew over the years and broadened its offerings of RF and microwave components by adding broadband solutions to its product line.
-
Page 3: Table Of Contents
Table of Contents General Information .............. 4 Where to Get Technical Support .......... 4 Precautions ................4 1. TR-2 Introduction ..............5 Equipment ................8 Features ................9 Meter Components ............... 9 Front Panel Display ............ 18 Back Of Meter ............18 LCD ................ -
Page 4: General Information
You can also check this website for product updates. Where to Get Technical Support Trilithic technical support is available Monday through Friday from 8:00AM to 5:00PM EST. Callers in North America can dial 1-317-895-3600 or 1-800-344-2412 (toll free). International callers should dial 1-317-895-3600 or fax questions to 1-317- 895-3613. -
Page 5: Precautions
Precautions • Use only the AC adapter supplied with the TR-2. Any other adapter could damage the battery or meter. • The maximum input voltage to the meter is 100 V (AC or DC). A larger voltage will damage the meter. - Page 6 TR-2 Operation Manual...
-
Page 7: Tr-2 Introduction

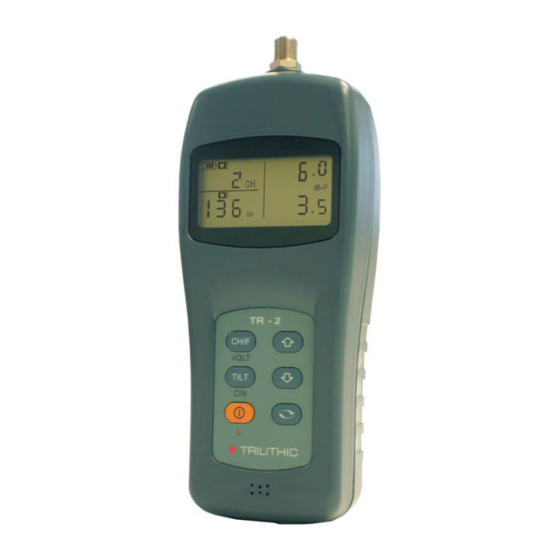

• Describes the TR-2 components. • Provides information on battery changing. Congratulations! You now own Trilithic’s TR-2 Signal Level Meter. The TR-2 is an economical solution ideal for your basic HFC installation needs. This simple to use meter provides fast and efficient... -
Page 8: Equipment
Equipment The TR-2 comes with the following: • TR-2 Signal Level Meter • Battery Charger (AC Adapter) • Carry Strap • Built-in 3.6V/2.1AH Ni-MH Battery • Operation Manual • Protective Bumper The following items are also available: • Replacement Battery (P/N 0090049000) •... -
Page 9: Features
Dual Channel Level Measurements • Tilt measurement • Carrier-to-Noise (C/N) Meter Components The TR-2’s keypad and backlit display are on the front panel. The charge socket is on the bottom of the meter. The following illustrations show: • Front Panel and Display •... -
Page 10: Front Panel Display
Front Panel and Display RF input Power on/off Charge LED Speaker TR-2 Operation Manual... -
Page 11: Back Of Meter
Back of Meter Location to attach Carry Strap Battery enclosure TR-2 Operation Manual... -
Page 12: Lcd
Battery status Video carrier Level Channel number Units Δ Frequency Single Channel measurement screen is shown. TR-2 Operation Manual... -
Page 13: Keypad
Toggles between Single Channel, Frequency CH/F mode, and Voltmeter function. Toggles between Dual Channel Measurement, TILT Tilt mode, and C/N mode. Power switch (ON/OFF). Steps the control to the next field. Increases channel or frequency. Decreases channel or frequency. TR-2 Operation Manual... -
Page 14: Battery Charging
TR-2. Using any other charge cube may damage the battery. While charging, the LED on the TR-2 front panel will have a RED light. The TR-2 should be charged for 10 to 14 Hours for a full charge. TR-2 Operation Manual... -
Page 15: Battery Replacement
Battery Replacement To replace the TR-2 battery, remove the screw from the battery enclosure door on the back of the meter. Lift off the door and remove the TR-2 battery pack. Replace the battery in the compartment with the proper polarity as shown by the Battery Installation Guide on the battery. - Page 16 TR-2 Operation Manual...
-
Page 17: Tr-2 Operation
• Provides information on TR-2 operation and measurement modes. Before You Begin Your TR-2 battery should be charged for 10 to 14 hours for full- charge. The thin protective film layer placed over the display for protection during shipping should be removed. -
Page 18: General
Digital levels (QAM) The TR-2 will display levels for TV signals with Video and Audio carriers. For level readings on Digital channels (QAM 64, 128, or 256), add +8.2dB to the displayed level. This will provide the correct power level for the digital channel. -
Page 19: Single Channel Measurement
Δ Δ Δ Δ Δ V/A (level difference between the video and audio carriers in dB). Use the keys to select the desired channel. When the signal level is less than -30 dBmV, the display will indicate “Lo”. TR-2 Operation Manual... -
Page 20: Frequency
–25 dBmV. The volume is not adjustable. In the frequency mode, the TR-2 can be tuned to any frequency from 46MHz to 864MHz. To change the frequency, press the key until the desired digit in the frequency is blinking and then press the keys to select the desired value. -
Page 21: Voltmeter Mode
Voltmeter Mode Use the CH/F key to select the Voltmeter mode. In the Voltmeter mode, the TR-2 will detect the trunk voltage at the RF input and display the AC or DC voltage. CAUTION: The maximum input voltage must not exceed 100 V (AC or DC). -
Page 22: Dual Channel Measurement
The “CH” symbol will blink for the selected channel. Press the keys to tune to the desired channel. To set the other channel, press the key and the “CH” symbol will blink for the other channel so it can be tuned. TR-2 Operation Manual... -
Page 23: Tilt Mode
The “CH” symbol will blink for the selected channel. Press the keys to tune to the desired channel. To “CH” set the other channel, press the key and the symbol will blink for the other channel so it can be tuned. TR-2 Operation Manual... -
Page 24: C/N Measurement
C/N measurement will be displayed. If the video level is too low (less than 20dBmV), the meter will display “Err”. A Carrier-to-noise measurement can be made with the video carrier on or shut off (after entering C/N mode to read the video level). TR-2 Operation Manual... - Page 25 A C/N measurement greater than 50 dB will display 50dB. A C/N measurement less than 20 dB will display 20dB. To perform another C/N measurement, you must exit C/N mode and enter it again. (Press TILT key 3 times) TR-2 Operation Manual...
- Page 26 TR-2 Operation Manual...
-
Page 27: Specifications
Audio: Built-in speaker (Auto on in FREQUENCY mode) Battery: Built-in 3.6V / 2.1AH Ni-MH battery Work Time: More than 6 Hours with full charge (without audio and backlight off) Charge Time: 10 – 12 Hours (with meter off) TR-2 Operation Manual... - Page 28 TR-2 Operation Manual...
- Page 29 TR-2 Operation Manual...
- Page 30 TR-2 Operation Manual...
-
Page 31: Warranty Information
Warranty Information Trilithic, Inc. warrants that each part of this product will be free from defects in materials and workmanship, under normal use, operating conditions and service for a period of one (1) year from date of delivery. Trilithic, Inc.’s obligation under this Warranty shall be limited, at Trilithic, Inc.’s sole option, to... - Page 32 9710 Park Davis Drive Indianapolis, IN 46235 (317) 895-3600 www.trilithic.com P/N 0010259000 rev. 08/06 Made in U.S.A.
