Learn Channel Plan - Trilithic Model One Operation Manual

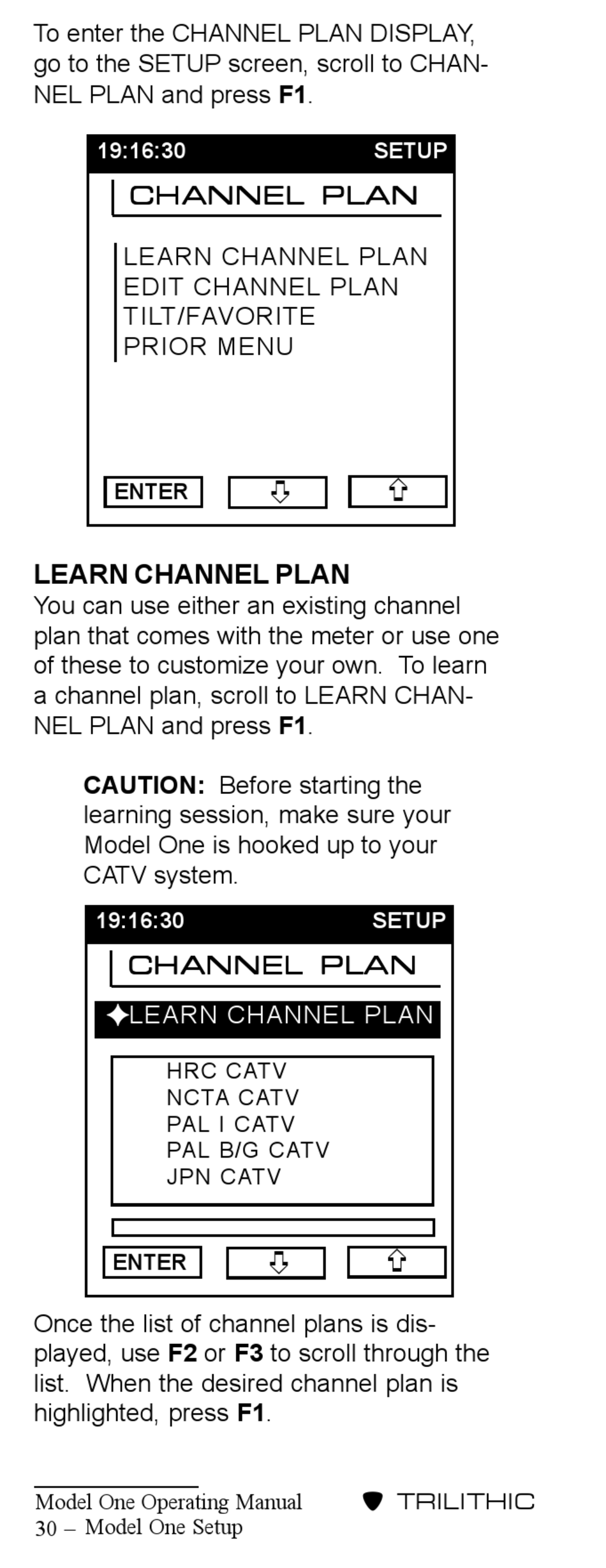

To enter the CHANNEL PLAN DISPLAY,
go to the SETUP screen, scroll to CHAN-
NEL PLAN and press F1.
19:16:30
CHANNEL PL CHANNEL PL
CHANNEL PL CHANNEL PL AN CHANNEL PL

LEARN CHANNEL PLAN

EDIT CHANNEL PLAN
TILT/FAVORITE
PRIOR MENU
ENTER
LEARN CHANNEL PLAN
You can use either an existing channel
plan that comes with the meter or use one
of these to customize your own. To learn
a channel plan, scroll to LEARN CHAN-
NEL PLAN and press F1.
CAUTION: Before starting the
learning session, make sure your
Model One is hooked up to your
CATV system.
19:16:30
CHANNEL PL CHANNEL PL
CHANNEL PL AN
CHANNEL PL CHANNEL PL
$#LEARN CHANNEL PLAN
ENTER
Once the list of channel plans is dis-
played, use F2 or F3 to scroll through the
list. When the desired channel plan is
highlighted, press F1.
Model One Operating Manual ""! TRILITHIC
