• Time – Displays unit's time based
on time set up parameter (see page
xx)
• FCN – Indicates when the FCN
button has been pressed and the
key pad is in its secondary function
(see page 9)
• Display Indicator – Indicates which
meter function is being used
• Main Display Screen – Displays the
parameters and graphs of the
selected function
• F1, F2, F3 – Indicates the available
usage for the soft buttons in the
selected meter function
NOTE: The soft buttons vary from
meter function to meter function
(see Soft Buttons page 11).

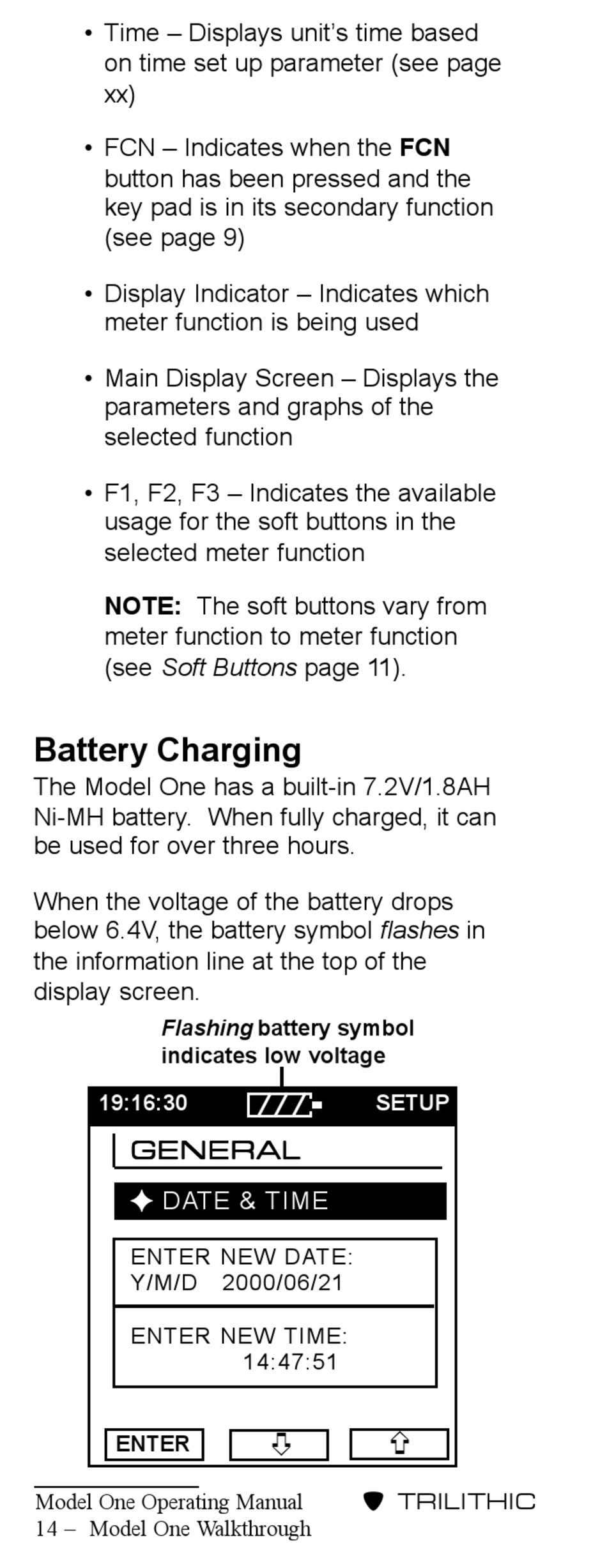

Battery Charging

The Model One has a built-in 7.2V/1.8AH
Ni-MH battery. When fully charged, it can
be used for over three hours.
When the voltage of the battery drops
below 6.4V, the battery symbol flashes in
the information line at the top of the
display screen.
19:16:30
GENERAL GENERAL GENERAL
GENERAL GENERAL
# DATE & TIME
ENTER NEW DATE:
Y/M/D
ENTER NEW TIME:
ENTER
Model One Operating Manual ""! TRILITHIC
14 – Model One Walkthrough
Flashing battery symbol
indicates low voltage
2000/06/21
14:47:51
SETUP
