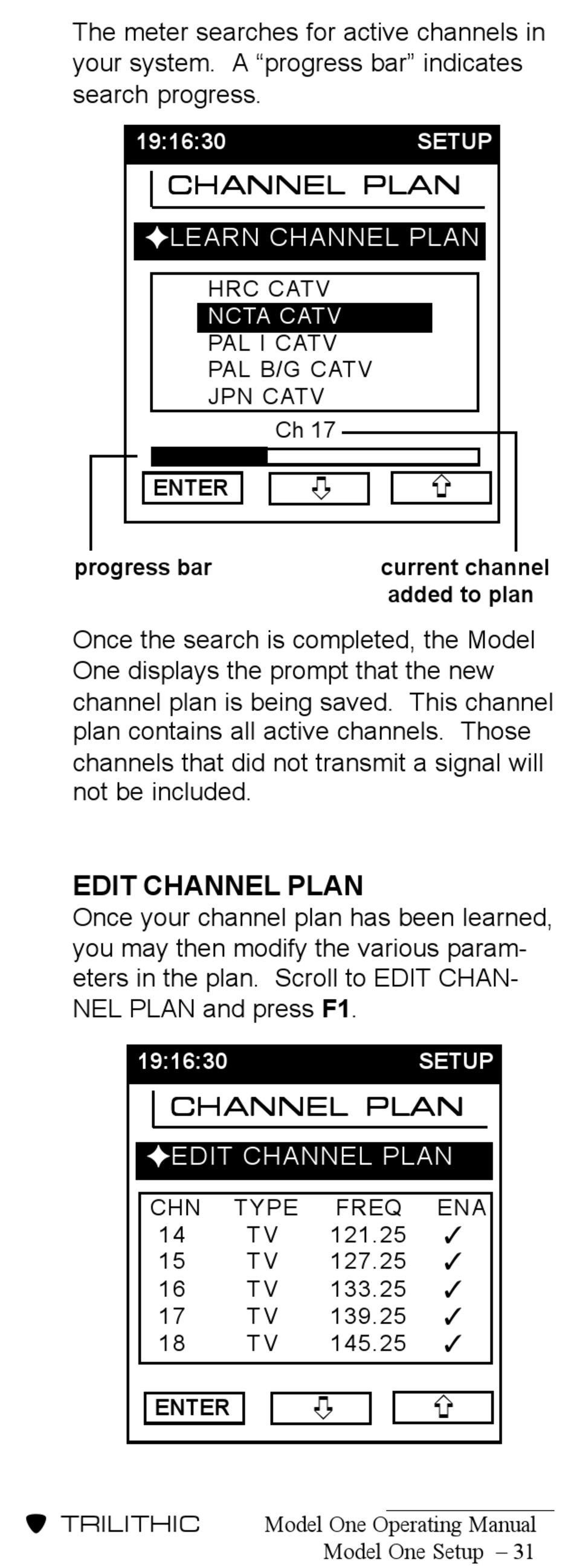

The meter searches for active channels in
your system. A "progress bar" indicates
search progress.
progress bar
Once the search is completed, the Model
One displays the prompt that the new
channel plan is being saved. This channel
plan contains all active channels. Those
channels that did not transmit a signal will
not be included.

EDIT CHANNEL PLAN

Once your channel plan has been learned,
you may then modify the various param-
eters in the plan. Scroll to EDIT CHAN-
NEL PLAN and press F1.
! TRILITHIC
19:16:30
CHANNEL PL CHANNEL PL
CHANNEL PL AN
CHANNEL PL CHANNEL PL
$#LEARN CHANNEL PLAN
HRC CATV
NCTA CATV
PAL I CATV
PAL B/G CATV
JPN CATV
ENTER
19:16:30
CHANNEL PL CHANNEL PL AN CHANNEL PL
CHANNEL PL CHANNEL PL
$#EDIT CHANNEL PLAN
CHN TYPE
14
15
16
17
18
ENTER
Ch 17
FREQ
TV 121.25
TV 127.25
TV 133.25
TV 139.25
TV 145.25
Model One Operating Manual
Model One Setup
SETUP
AN AN
AN
AN
current channel
added to plan
SETUP
AN AN AN
AN
ENA
%
%
%
%
%
– 31
