Lavatory faucet

Advertisement

Quick Links

SLC4712PP
Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
SLC4712PP
Centerset Lavatory Faucet with
Push Pop Drain Assembly
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
- WaterSense 1.0 gpm
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.

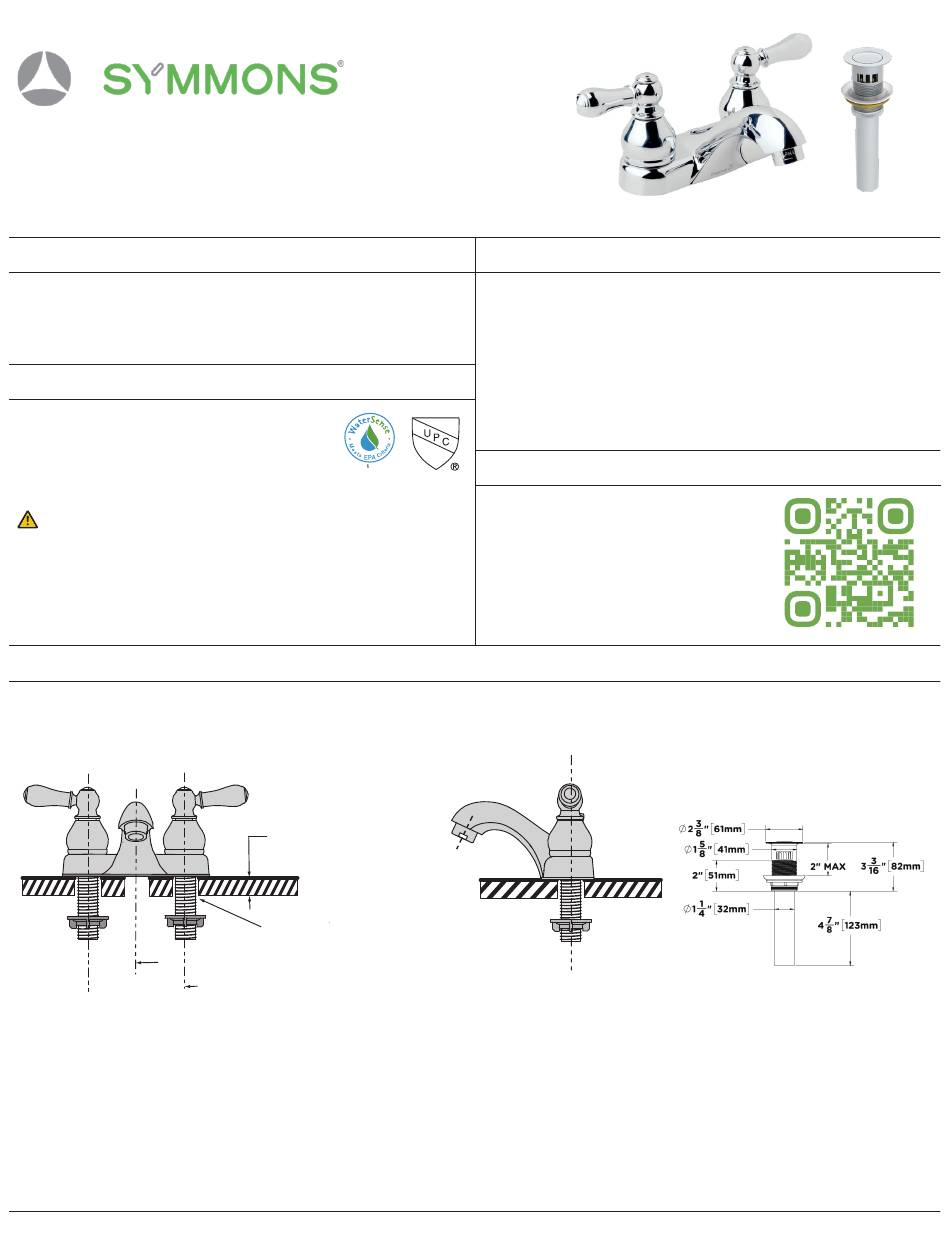

Dimensions
Note: Dimensions are subject to change without notice.
Symmons Industries, Inc.
Copyright © 2023 Symmons Industries, Inc.
Allura®
c
Certi ed by
IAPMO R&T
Deck thickness
1-3/4" ( 45 mm) max
1/2"-14 NPSM
Hole diameter
1" (25 mm)
31 Brooks Drive
Braintree, MA 02184
symmons.com
Feature Highlights

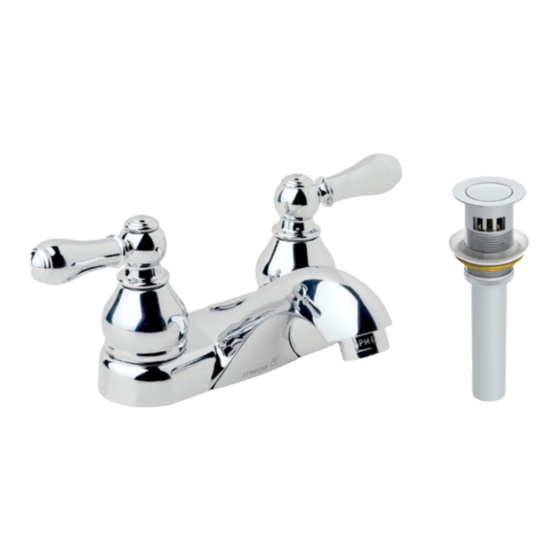

Two handle 4 inch centerset lavatory faucet with
