INSTALLING THE HOOD

CAUTION: At least two installers are
recommended because of the large size
and weight of this range hood.

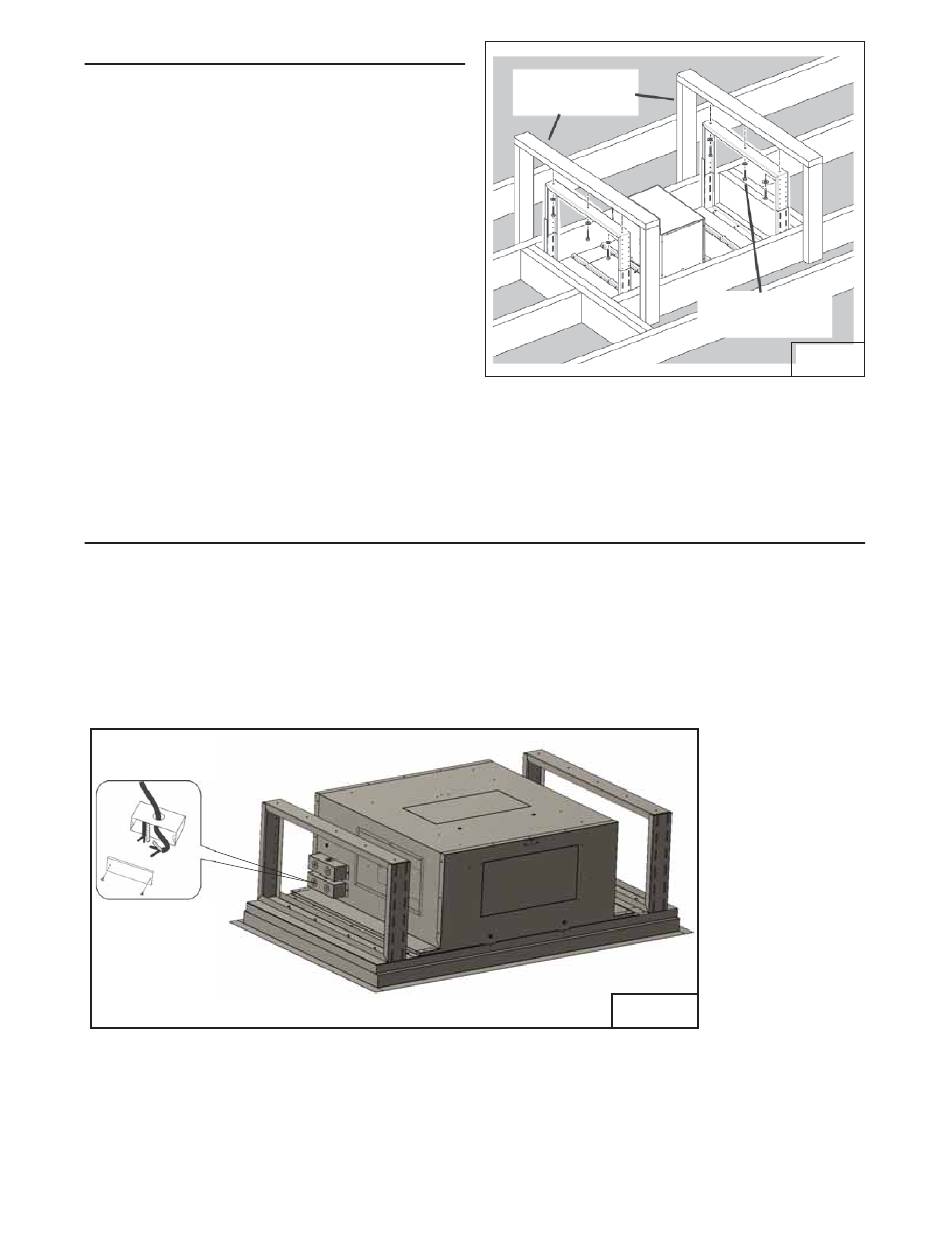

1. Lift range hood into the ceiling opening.
2. Secure each support frame to the wooden hood
support frame using (6 to 10) #6 x 2" screws with
washers provided. FIG. 25
3. Adjust height of the telescoping support frame to
ensure a tight fit between the hood and finished ceiling.
4. Connect ductwork; Duct tape all joints to ensure
an air tight seal.
5. Make all needed electrical connections.
6. Re-install the aluminum mesh filters, control
panel and light panels as needed.
CONNECT THE WIRES (POWER WIRES)
1. Remove a knockout from the wiring box input (Fig.26).
2. Secure the conduit to the wiring box through a conduit connector.
3. Make electrical connections. Connect white to white, black to black and green to ground.
4. Fix wiring box cover and screws (Fig.26). Make sure that wires are not pinched between
cover and box.
2x4 WOOD
FRAME
FIG. 26
- 23 -
(6) WASHERS
& #6 x 2" SCREWS
FIG. 25
